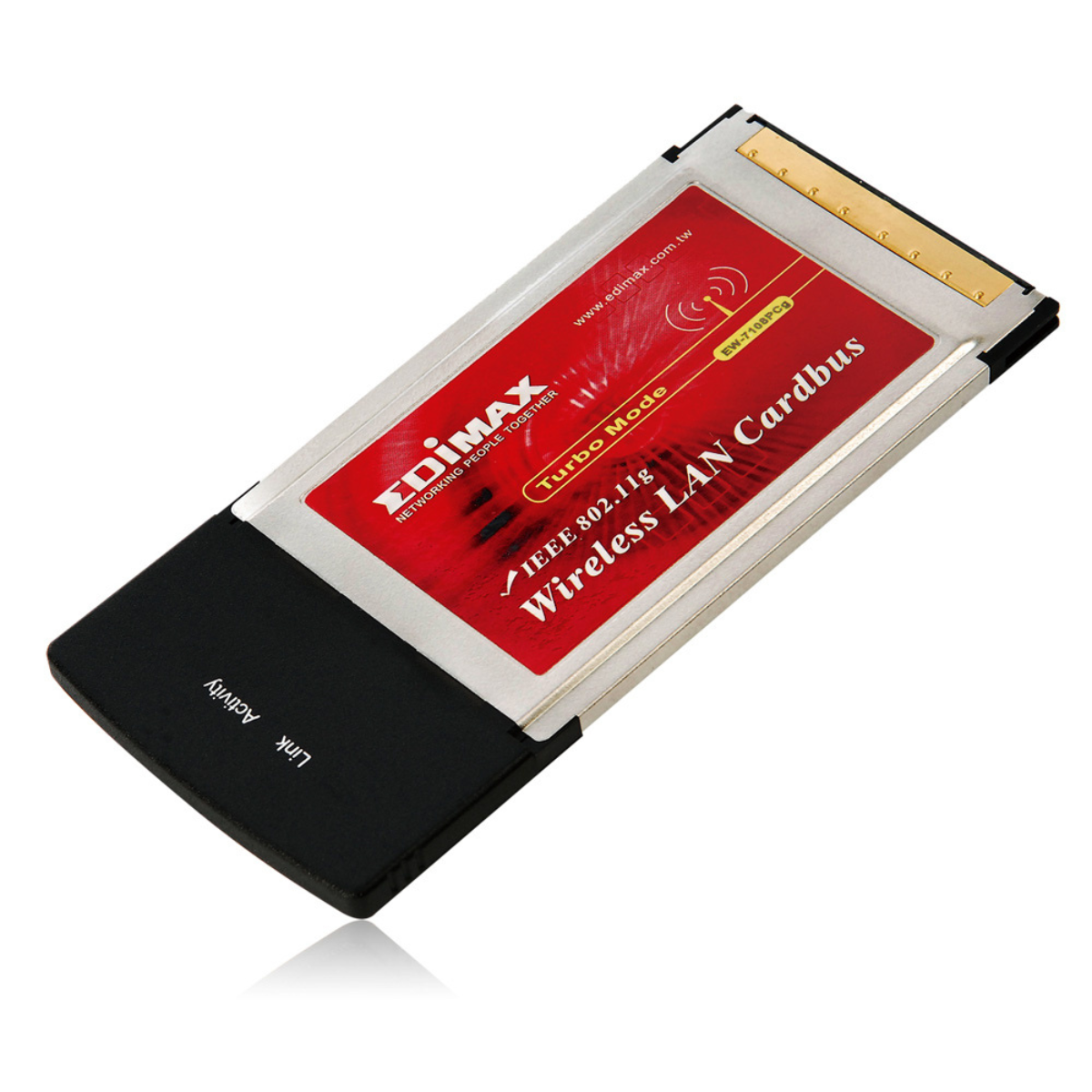

EDIMAX EW7108PCG WIFI G PCMCIA

Specifications:

• General Information:

  • Type: 802.11g Wireless LAN PC Card

  • Compliance: IEEE 802.11g & IEEE 802.11b

  • End-of-Life Product

• Features:

  • Supports Turbo Mode for 30% faster transmission

  • Security: Supports WPA, WEP, and AES

  • High-speed data rate: Up to 54 Mbps

  • Automatic fallback for enhanced security and reliability

  • Multi-language EZmax Setup Wizard for easy installation

• Hardware Interface:

  • Interface: 32-bit Cardbus (PCMCIA)

  • Standard: IEEE 802.11g/b

  • Frequency Band: 2.4000~2.4835 GHz (Industrial Scientific Medical Band)

• Data Rate:

  • Supported Rates: 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps (auto fallback)

• Installation:

  • LED Indicators: Link, TX/RX

• Security:

  • Encryption: WEP 64/128, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)

• Physical Specifications:

  • Dimensions: 8 mm (H) x 118 mm (W) x 54 mm (D)

  • Humidity: Max 95% (Non-Condensing)

  • Operating Temperature: 32F to 131F (0C to 55C)

• System Requirements:

  • Compatible with Windows 98/Me/2000/XP/Vista

  • Supports 32-bit Cardbus interface

• Transmit Power:

  • 16 dBm to 18 dBm

• Certifications:

  • CE, FCC
