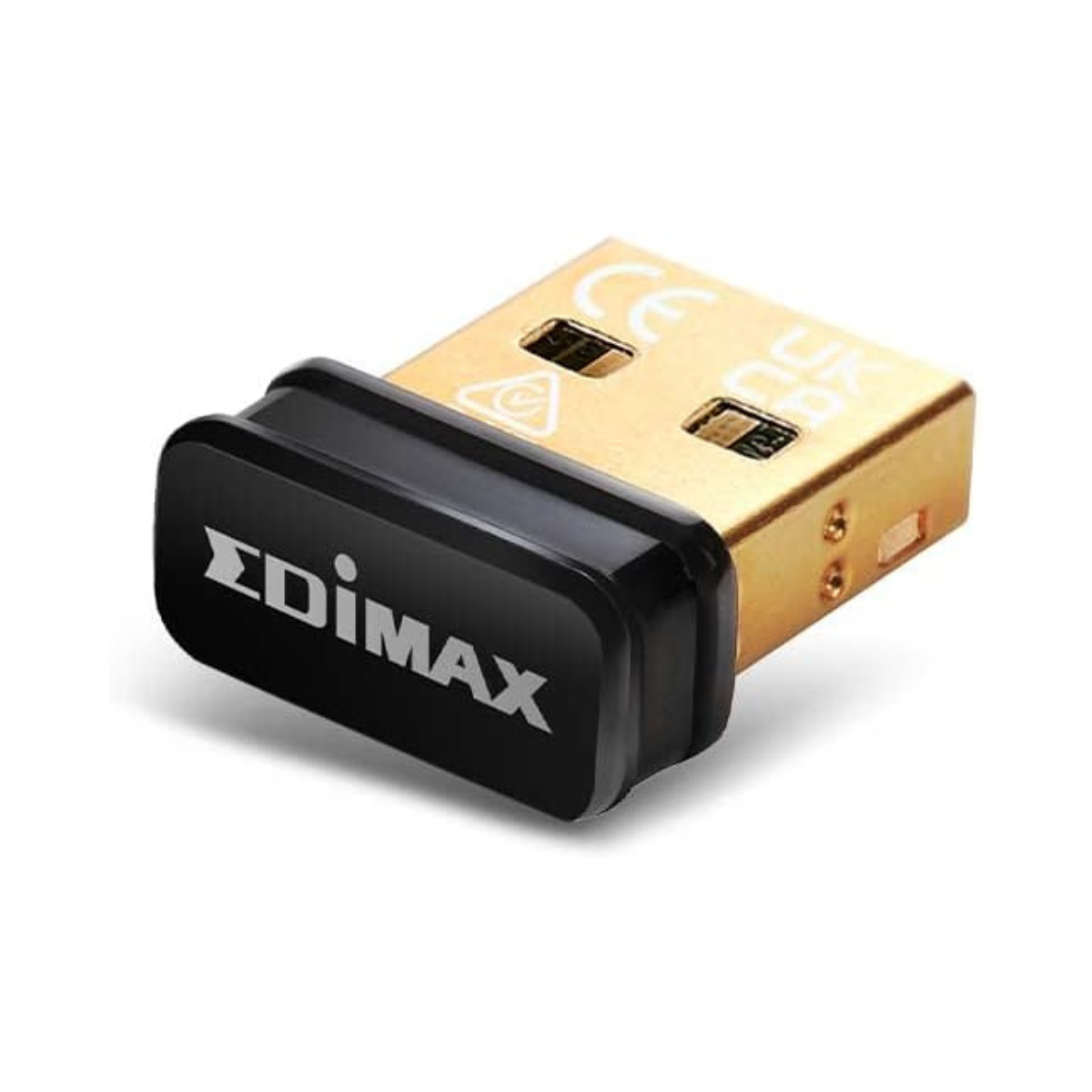

EDIMAX EW7811UN WIFI N-LITE USB ADAPTER

Specifications:

• Hardware:

  • Interface: 1 x USB 1.0/2.0 Type A

  • LED Indicator: 1 x Link/Activity LED

  • Antenna: 1 x Internal Antenna (1T1R)

  • Dimensions: 7.1 mm (H) x 14.9 mm (W) x 17.5 mm (D)

  • Weight: 2 g

• Wireless:

  • Standards: 2.4GHz - IEEE 802.11b, 802.11g, 802.11n

  • Frequency Band: 2.4000 - 2.4835 GHz (subject to local regulations)

  • Operating Channel:

    • FCC: Channel 1-11

    • CE: Channel 1-13

  • Max. Data Rate/Speed:

    • 11b: 1/2/5.5/11 Mbps

    • 11g: 6/9/12/24/36/48/54 Mbps

    • 11n (20MHz): MCS0-07, up to 72 Mbps

    • 11n (40MHz): MCS0-07, up to 150 Mbps

  • Output Power:

    • 11b: 17±1.5 dBm

    • 11g: 15±1.5 dBm

    • 11n: 14±1.5 dBm

  • Receive Sensitivity:

    • 11n (20MHz) @ MCS7: -68 dBm±2 dBm

    • 11n (40MHz) @ MCS7: -64 dBm±2 dBm

    • 11g @ 54 Mbps: -71 dBm±2 dBm

    • 11b @ 11 Mbps: -81 dBm±2 dBm

  • Security:

    • WEP 64/128-bit

    • WPA

    • WPA2

    • IEEE 802.1x

    • Software WPS Configuration

• Others:

  • Installation: Multi-language EZmax Setup Wizard

  • System Requirements:

    • Windows XP/Vista/7/8/8.1/10 or above

    • Mac OS 10.4 or above

    • Linux OS

  • Environment:

    • Temperature:

      • Operating: 32 - 104F (0 - 40C)

      • Storage: -4 - 140F (-20 - 60C)

    • Humidity:

      • Operating: 10 - 90% (non-condensing)

      • Storage: max. 95% (non-condensing)

  • Certification:

    • CE / RED (Europe)

    • FCC (U.S)

    • IC (Canada)

    • NCC (TW)

    • MIC & VCCI (Japan)
