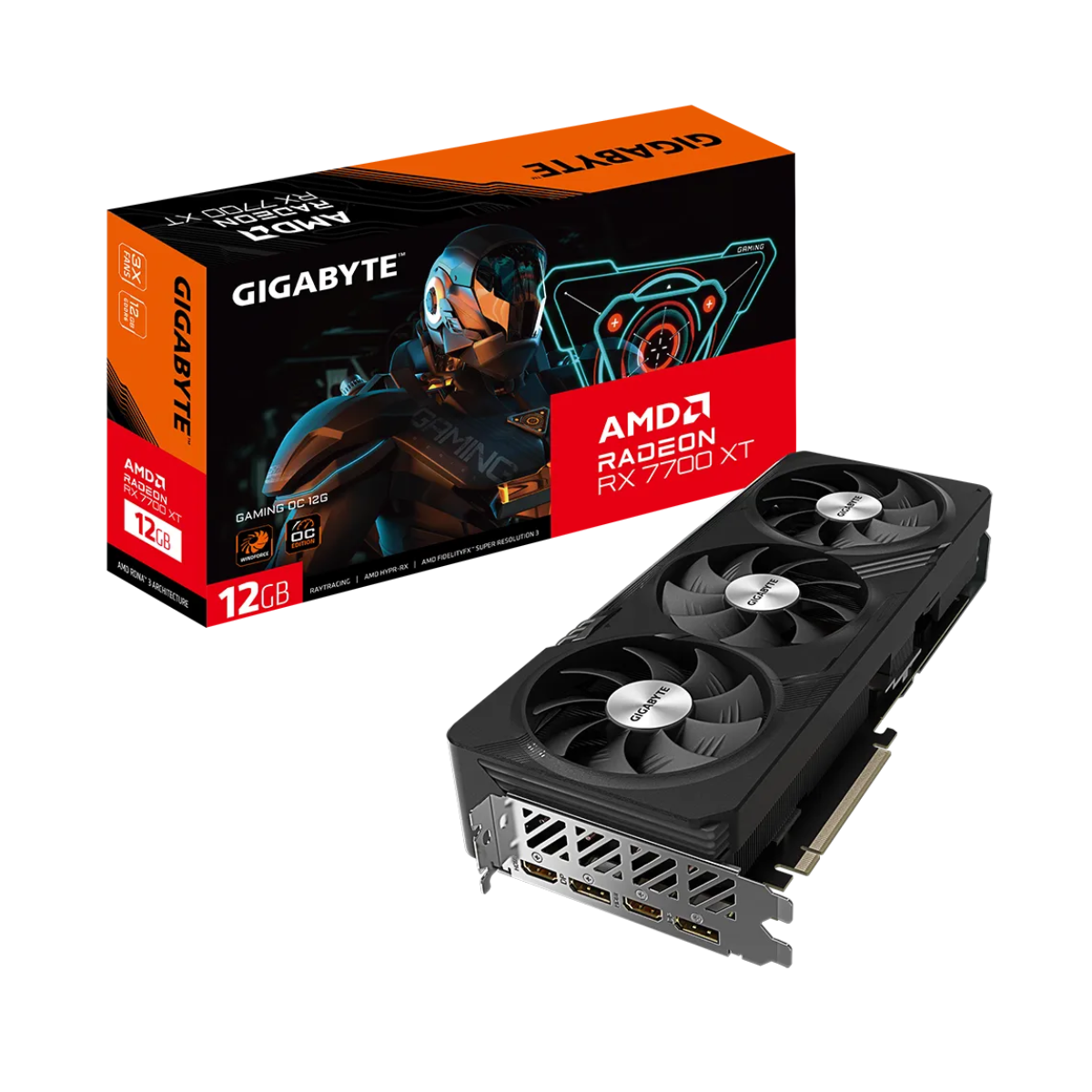

GIGABYTE RX 7700XT 12GB 192BIT GDDR6 GAMING OC 3XFANS (2XHDMI, 2XDP)

Specifications:

• Core Clock:

  • Boost Clock*: up to 2599 MHz (Reference card: 2544 MHz)

  • Game Clock*: up to 2276 MHz (Reference card: 2171 MHz)

• Stream Processors: 3456

• Memory Clock: 18 Gbps

• Memory Size: 12 GB

• Memory Type: GDDR6

• Memory Bus: 192-bit

• Card Bus: PCI-E 4.0

• Digital max resolution: 7680x4320

• Multi-view: 4

• Card size: L=302mm, W=130mm, H=56mm

• PCB Form: ATX

• DirectX: 12 Ultimate

• OpenGL: 4.6

• Recommended PSU: 700W

• Power Connectors: 8 Pin*2

• Output:

  • DisplayPort 2.1 *2

  • HDMI 2.1 *2

• Accessories: Quick guide

• Note:

  • *"Boost Clock‚¬Â is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to thermal conditions and variations in applications and workloads.GD-151

  • *"Game Clock‚¬Â is the expected GPU clock running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
