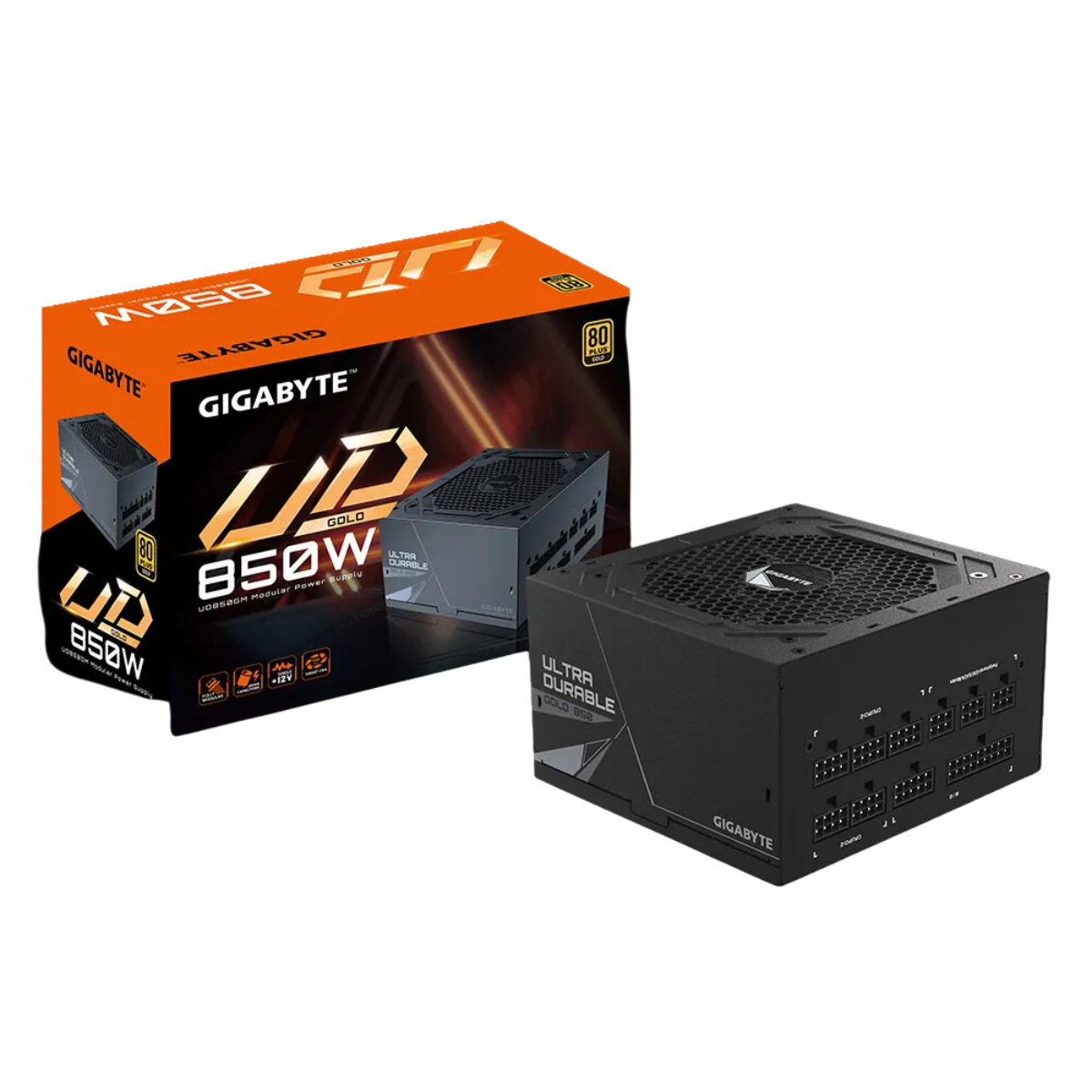

GIGABYTE UD850GM 850W 1X120MM FAN, 8SATA, 4PCIE, ACTIVE PFC, MODULAR, 80-PLUS GOLD

Specifications:

• Type: Intel Form Factor ATX 12V v2.31

• PFC: Active PFC (>0.9 typical)

• Input Voltage: 100-240 Vac (full range)

• Input Current: 12-6A

• Input Frequency: 60-50 Hz

• Output Capacity: 850W

• Dimension: 150 x 140 x 86 mm

• Fan Type: 120mm Hydraulic Bearing (HYB) fan

• 80 PLUS: Gold

• Efficiency: 90% at typical load

• MTBF: >100,000 hours

• Protection: OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal: 100-150ms

• Hold Up Time: >16ms

• Cable Type: Flat, All black

• Connectors:

  • ATX/MB 20+4 Pin x 1: 610mm*1

  • CPU/EPS 4+4 Pin x 2: 600mm*2

  • PCI-e 6+2 Pin x 4: 600mm+150mm*2

  • SATA x 8: 600mm+150mm+150mm+150mm*2

  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
