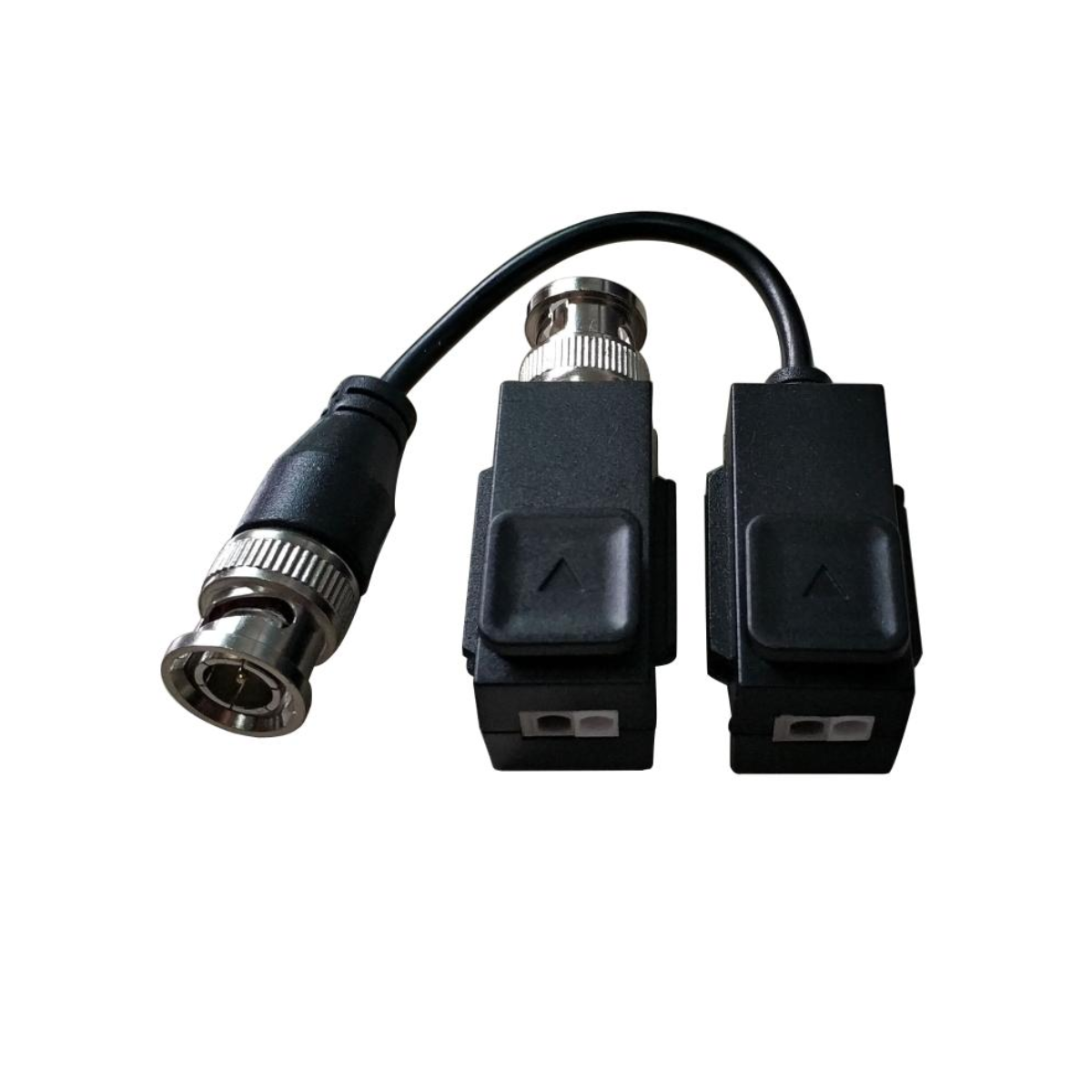

HIKVISION DS-1H18S/E(C) TVI CONVERT TO UTP TRANSMISSION WITH EXTEND CABLE PRESS TYPE PLUG

Specifications:

Properties:

• Transmission Signal: 1 channel
• Transmission Distance:
  • Non-POC Camera: Max 250m
  • POC Camera: Max 150m
• Category Type: UTP CAT 5E/6 (R < 10/100M)
• Video Transmission Properties And Port:
  • Coaxial Video Connector: BNC-M
  • Twisted-Pair Video Connector: Pat Push Interface
• Compatible Format: HDCVI/TVI/AHD/CVBS
• Resolution: 720P/1080P/4MP/5MP/8MP
• Ant-Interference: >60db

Protection:

• ESD:
  • Contact discharge electricity level 3
  • Air discharge electricity level 3
  • Per: IEC61000-4-2
• Coaxial Cable Connector: 2KV (common-code) Per: IEC61000-4-5
• UTP Cable Connector: 2KV (different-code), 2KV (common-code) Per: IEC61000-4-5

Impedance:

• BNC Male: 75 ohms
• UTP Cable: 100 ohms

Physical Properties:

• Shell: ABS
• Color: Black
• Dimensions (L x W x H):
  • 150mm x 20mm x 22mm (balun with cable)
  • 50mm x 20mm x 22mm (balun without cable)
• Weight: 32 g

Stability:

• MTBF: >10000 h

Environmental:

• Operating Temperature: -10-55ºC
• Storage Temperature: -20-70ºC
• Humidity: 0-95% (non-condensing)
