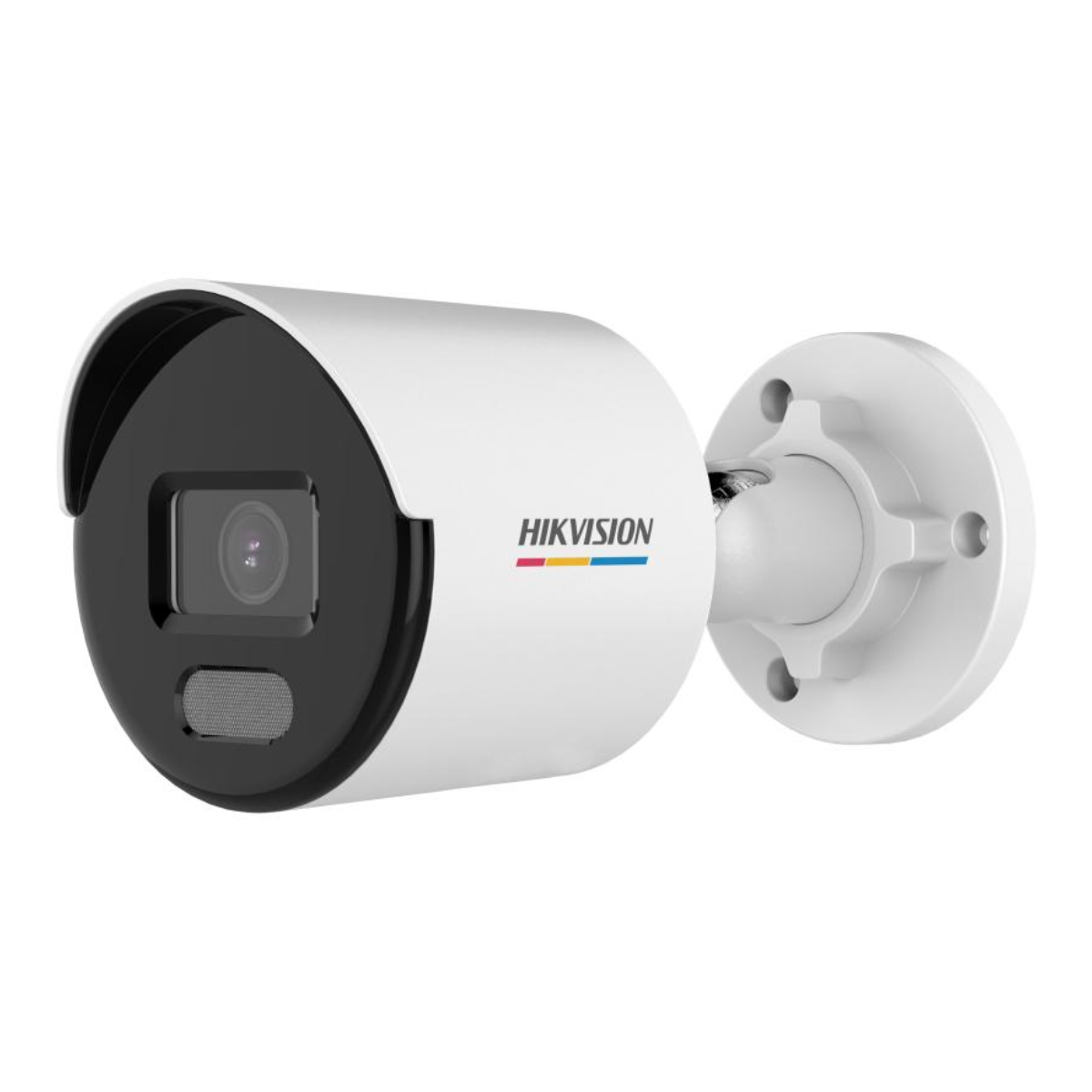

HIKVISION DS-2CD1027G2-L(2.8) 2MP COLORVU 30M-IR IP67 FIXED BULLET NETWORK CAMERA

Specifications:

Image Sensor

• Type: 1/2.8" Progressive Scan CMOS

Resolution

• Maximum Resolution: 1920 1080 (Full HD)

Illumination

• Min. Illumination (Color): 0.001 Lux @ (F1.0, AGC ON)

Shutter Time

• Range: 1/3 s to 1/100,000 s

Angle Adjustment

• Pan: 0 to 360
• Tilt: 0 to 90
• Rotate: 0 to 360

Lens

• Focal Length & Field of View (FOV):
  • 2.8mm: Horizontal FOV 107, Vertical FOV 56, Diagonal FOV 127
  • 4mm: Horizontal FOV 84, Vertical FOV 45, Diagonal FOV 99
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:
  • 2.8 mm Lens: 1.7 m to †Å¾
  • 4 mm Lens: 2.1 m to †Å¾
• Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream Frame Rates:
  • 50 Hz: 25fps at 1920 1080, 1280 960, 1280 720
  • 60 Hz: 30fps at 1920 1080, 1280 960, 1280 720
• Sub-Stream Frame Rates:
  • 50 Hz: 25fps at 640 480, 640 360, 320 240
  • 60 Hz: 30fps at 640 480, 640 360, 320 240
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region of Interest (ROI): 1 fixed region for mainstream

Network

• Protocols: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
• Client Software: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Compatibility:
• • Plug-in required for live view: IE8, IE9, IE10, IE11
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: BLC (Back Light Compensation), HLC (High Light Compensation), 3D DNR (Digital Noise Reduction)

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Events: Motion detection, exception (illegal login)
• Linkage Actions: Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.30 A, max. 3.6 W, œ5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W
• Dimensions: 68.4 65.2 161.1 mm (2.7" 2.6" 6.3")
• Package Dimensions: 172 104 80 mm (6.8" 4.1" 3.1")
• Weight: Approx. 420 g (0.9 lb.)
• With Package Weight: Approx. 510 g (1.1 lb.)
• Storage Conditions: -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)
• Language: English
• General Functions: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
