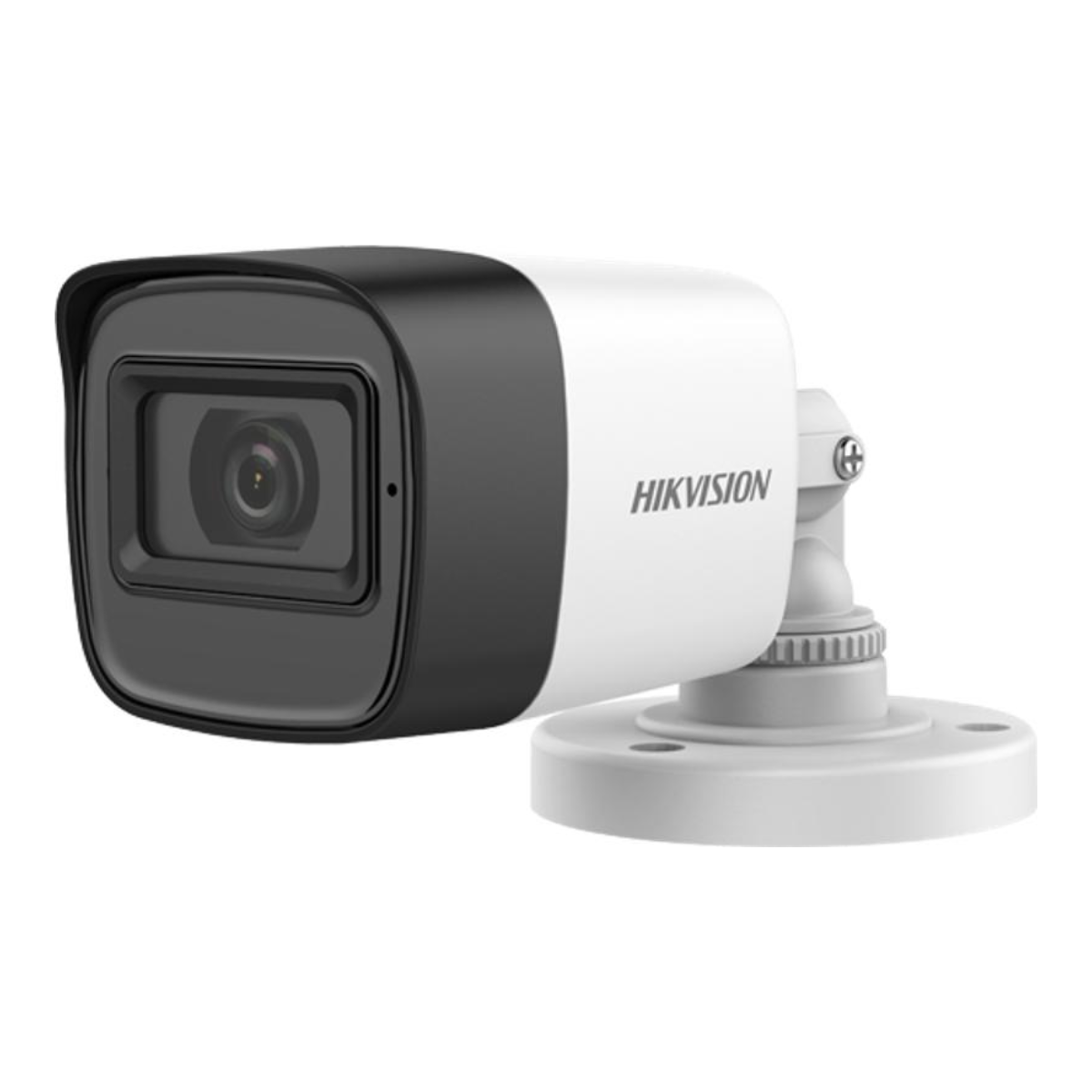

HIKVISION DS-2CE16H0T-ITPFS(2.8) 5MP 25M-IR IP67 FIXED MINI BULLET CAMERA

Specifications:

• Image Sensor:

  • Type: 5 MP CMOS

• Max. Resolution:

  • 2560 (H) 1944 (V)

• Min. Illumination:

  • 0.01 Lux @(F2.0, AGC ON)
  • 0 Lux with IR

• Shutter Time:

  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s

• Day & Night:

  • ICR (Infrared Cut Filter Removal)

• Angle Adjustment:

  • Pan: 0 to 355
  • Tilt: 0 to 75
  • Rotation: 0 to 355

• Signal System:

  • PAL/NTSC

Lens

• Lens Type:

  • 2.8 mm, 3.6 mm, 6 mm fixed lens

• Focal Length & FOV:

  • 2.8 mm:
    • Horizontal FOV: 85.5
    • Vertical FOV: 63.7
    • Diagonal FOV: 110.7
  • 3.6 mm:
    • Horizontal FOV: 80.1
    • Vertical FOV: 63.7
    • Diagonal FOV: 105.9
  • 6 mm:
    • Horizontal FOV: 57.1
    • Vertical FOV: 43.1
    • Diagonal FOV: 72.5

• Lens Mount:

  • M12


• Image Settings:

  • Brightness
  • Sharpness
  • Mirror
  • Smart IR

• Frame Rate:

  • TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
  • CVI: 4MP@30fps, 4MP@25fps
  • AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
  • CVBS: PAL/NTSC

• Day/Night Mode:

  • Auto/Color/BW (Black and White)

• Image Enhancement:

  • BLC (Backlight Compensation)

• Noise Reduction:

  • 2D DNR (Digital Noise Reduction)

• White Balance:

  • ATW (Auto Tracking White Balance)
  • Manual

• AGC (Automatic Gain Control):

  • Support

Interface

• Video Output:
  • Switchable TVI/AHD/CVI/CVBS

General

• Material:

  • Plastic

• Dimension:

  • 58 mm 61 mm 158.6 mm (2.28" 2.40" 6.42")

• Weight:

  • Approx. 160 g (0.35 lb.)

• Operating Condition:

  • Temperature: -40C to 60C (-40F to 140F)
  • Humidity: 90% or less (non-condensing)

• Communication:

  • HIKVISION-C

• Language:

  • English

• Power Supply:

  • 12 VDC ± 25%

• Power Consumption:

  • Max. 3.7 W

• IR Range:

  • Up to 25 m

• Protection:

  • IP67

• Power Supply Recommendation:

  • Use one power adapter to supply power for one camera
