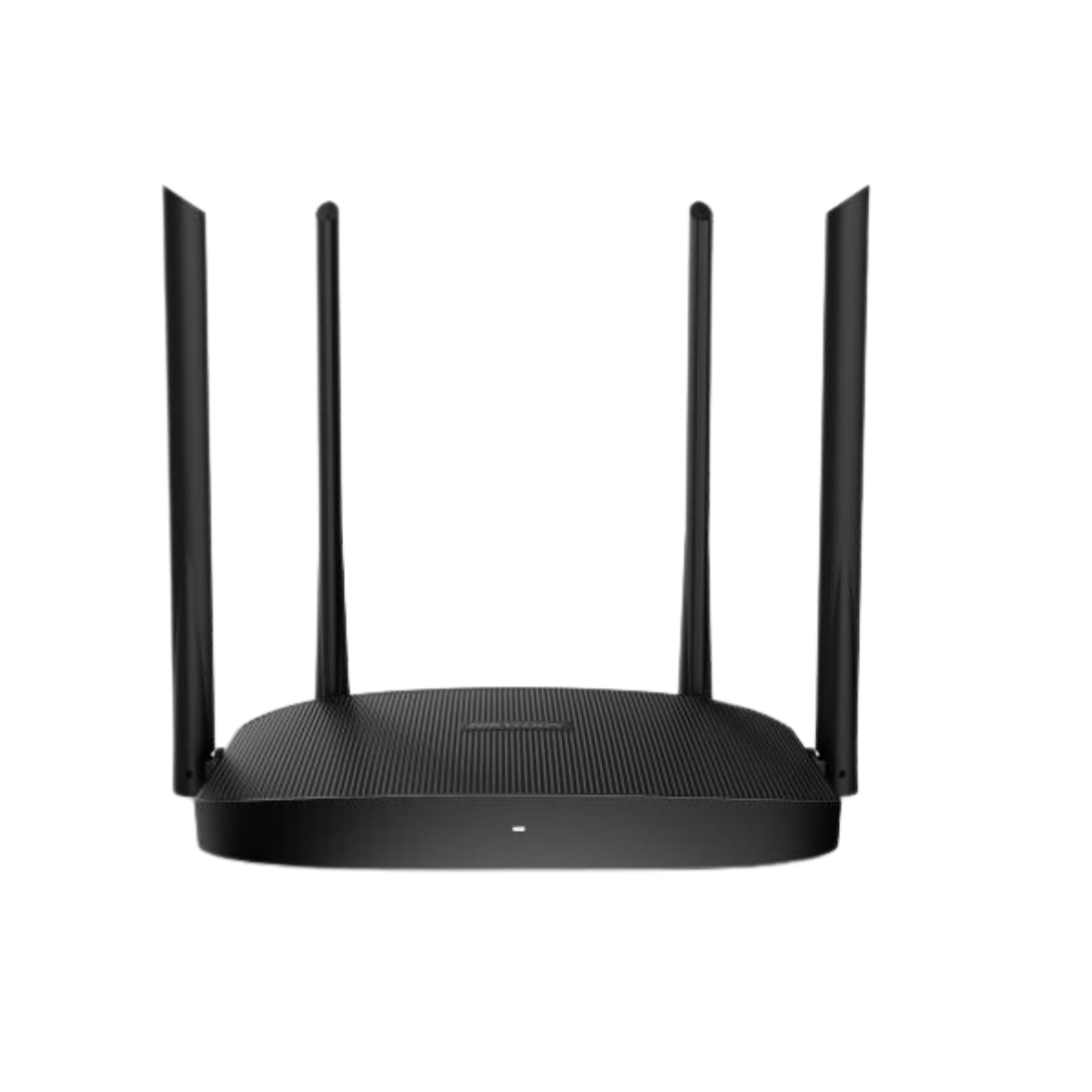

HIKVISION DS-3WR12C AC1200 WIRELESS ROUTER

Specifications:

Product Dimension (W H D):

• 248.40 mm 154.80 mm 213.34 mm (9.78" 6.09" 8.40")

Package Dimension (W H D):

• 306 mm 290 mm 59 mm (12.05" 11.42" 2.32")

Net Weight:

• 0.222 kg (0.489 lb)

Gross Weight:

• 0.722 kg (1.592 lb)

Packing List:

• Wireless Router 1

• Ethernet cable 1

• Quick installation guide 1

Packing Method:

• Single pack

Working Temperature:

• 0 €žÆ' to 40 €žÆ' (32 €ž" to 104 €ž"

Working Humidity:

• 10% to 90% RH non-condensing

Storage Temperature:

• -40 €žÆ' to 70 €žÆ' (-40 €ž" to 158 €ž"

Storage Humidity:

• 5% to 90% RH non-condensing

Installation Mode:

• Desktop installation

Max. Power Consumption:

• €°Â¤ 9 W

Wireless Parameter:

• Data Rate:

  • €°Â¤ 1167 Mbps

  • 2.4 GHz: 300 Mbps

  • 5 GHz: 867 Mbps

• Wireless Standard:

  • IEEE 802.11/a/n/ac wave 2 @5GHz

  • IEEE 802.11b/g/n @2.4GHz

• Transmitting Power:

  • 18 dBm

• Wireless Performance:

  • 4 4 MU-MIMO supported

  • Beamforming supported

• Receiving Sensitivity:

  • 58 ± 2 dB@AC80 -MCS9

  • 84 ± 2 dB@AC80 -MCS0

• Antenna:

  • 4 high-gain antennas

Hardware Parameter:

• Network Interface:

  • 4 RJ45, 10/100 Mbps auto-negotiation

• LED Indicator:

  • LED indicator

• Reset:

  • Reset button

• Power Supply Method:

  • 9 VDC, 1 A power adapter power supply

• Power Specifications:

  • 9 VDC, 1 A

Software Function:

• Application Function:

  • Wireless Router Mode

  • Wireless Repeater Mode

  • Client + AP Mode

  • WISP Mode

  • AP Mode

• DHCP Server:

  • Supported

• Guest Network Configuration:

  • Supported

• Signal Adjustment:

  • Supported

• WiFi Schedule:

  • Supported

• Security Mode:

  • WPA-PSK

  • WPA2-PSK

  • WPA and WPA2 supported

• Security Mechanism:

  • Hide SSID

• Management Method:

  • Web

• Upgrade:

  • Web Update and Upgrade

• System Log:

  • System log
