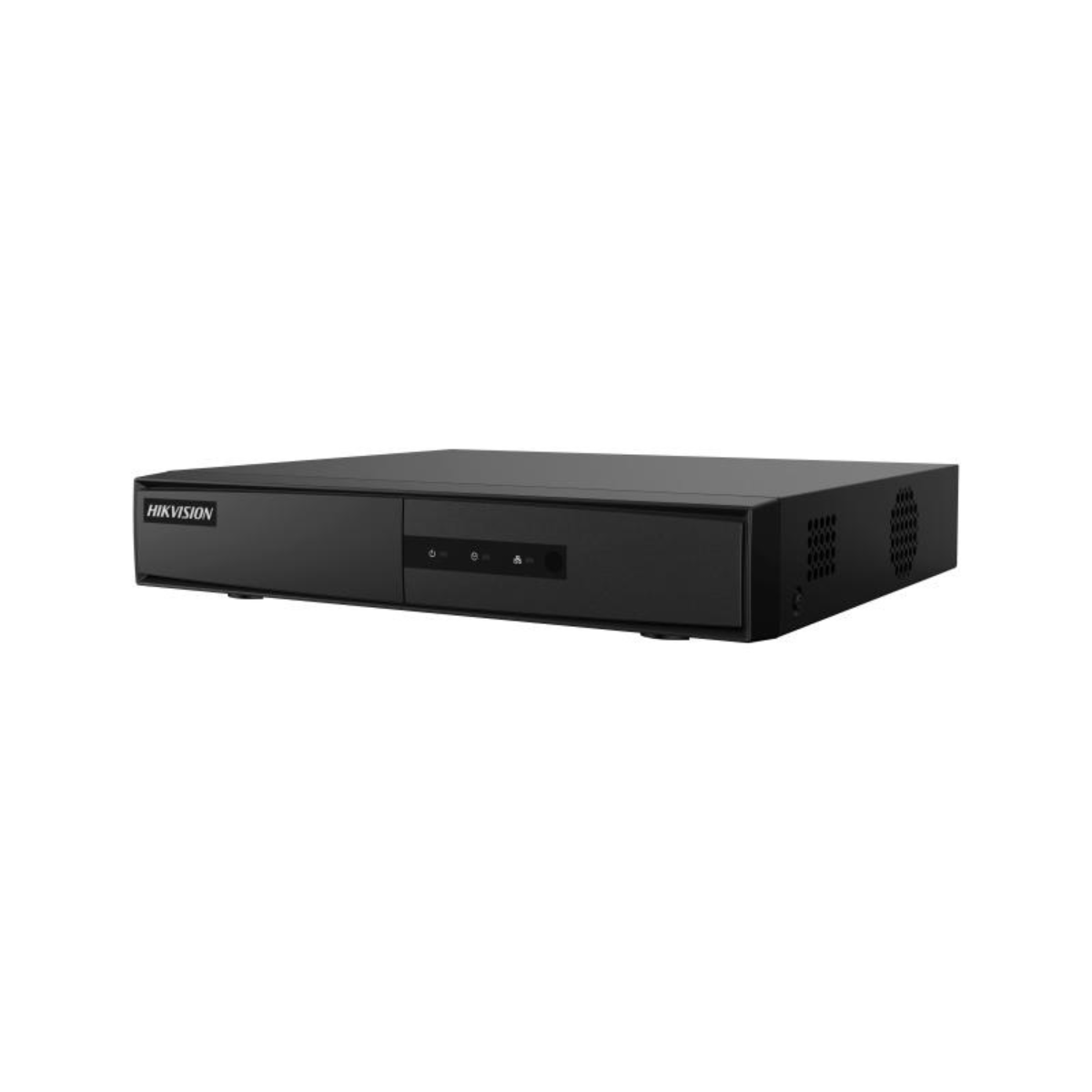

HIKVISION DS-7204HVI-SV 4CH DVR W/4 X DS-2CE55A2N-IR DOME CAMERA

Specifications:

• Recording and Video Compression

  • Video Compression: H.264+/H.264

  • Encoding Resolution:

    • Without 1080p Lite: 720p/WD1/4CIF/VGA/CIF

    • With 1080p Lite: 1080p Lite/720p/WD1/4CIF/VGA/CIF

  • Frame Rate:

    • Main Stream:

      • Without 1080p Lite: 720p/WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)

      • With 1080p Lite: 1080p Lite/720p/WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)

    • Sub-Stream: 2CIF @ 6fps; CIF/QVGA/QCIF @ 25fps (P)/30fps (N)

  • Video Bit Rate: 32 Kbps to 4 Mbps

  • Dual Stream: Supported

  • Stream Type: Video, Video & Audio

• Audio Compression

  • Audio Compression: G.711u

  • Audio Bit Rate: 64 Kbps

• Video Input

  • IP Video Input: 1 channel (up to 5 channels) up to 960p resolution, supporting H.264+/H.264 IP cameras

  • Analog Video Input: 4-channel BNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection

  • Turbo HD Input: 1080p25, 1080p30, 720p25, 720p30

  • AHD Input: 1080p25, 1080p30, 720p25, 720p30

  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

  • CVBS Input: Supported

• Audio Input/Output

  • Audio Input: 1 channel, RCA (2.0 Vp-p, 1 K)

  • Audio Output: 1 channel, RCA (Linear, 1 K)

  • Two-Way Audio: Reuse the first audio input

• Playback and Output

  • Synchronous Playback: 4 channels

  • VGA/HDMI Output: 1 channel, resolutions:

    • 1920 1080 @ 60Hz

    • 1280 1024 @ 60Hz

    • 1280 720 @ 60Hz

    • 1024 768 @ 60Hz

• Network

  • Remote Connections: 32

  • Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP€žÂ¢, HTTPS

  • Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet interface

• Storage

  • Auxiliary Interface: 1 SATA interface

  • Capacity: Up to 6 TB for each disk

• Power and Environmental

  • Power Supply: 12 VDC

  • Working Temperature: -10 C to 55 C (14 F to 131 F)

  • Working Humidity: 10% to 90%

  • Weight (without HDD): €°Â¤ 1 kg (2.2 lb)

  • Power Consumption (without HDD): €°Â¤ 8 W

  • Dimensions (W D H): 260 222 45 mm (10.2 8.7 1.8 inch)

• USB Interface

  • USB Ports: 2 USB 2.0 (rear panel)
