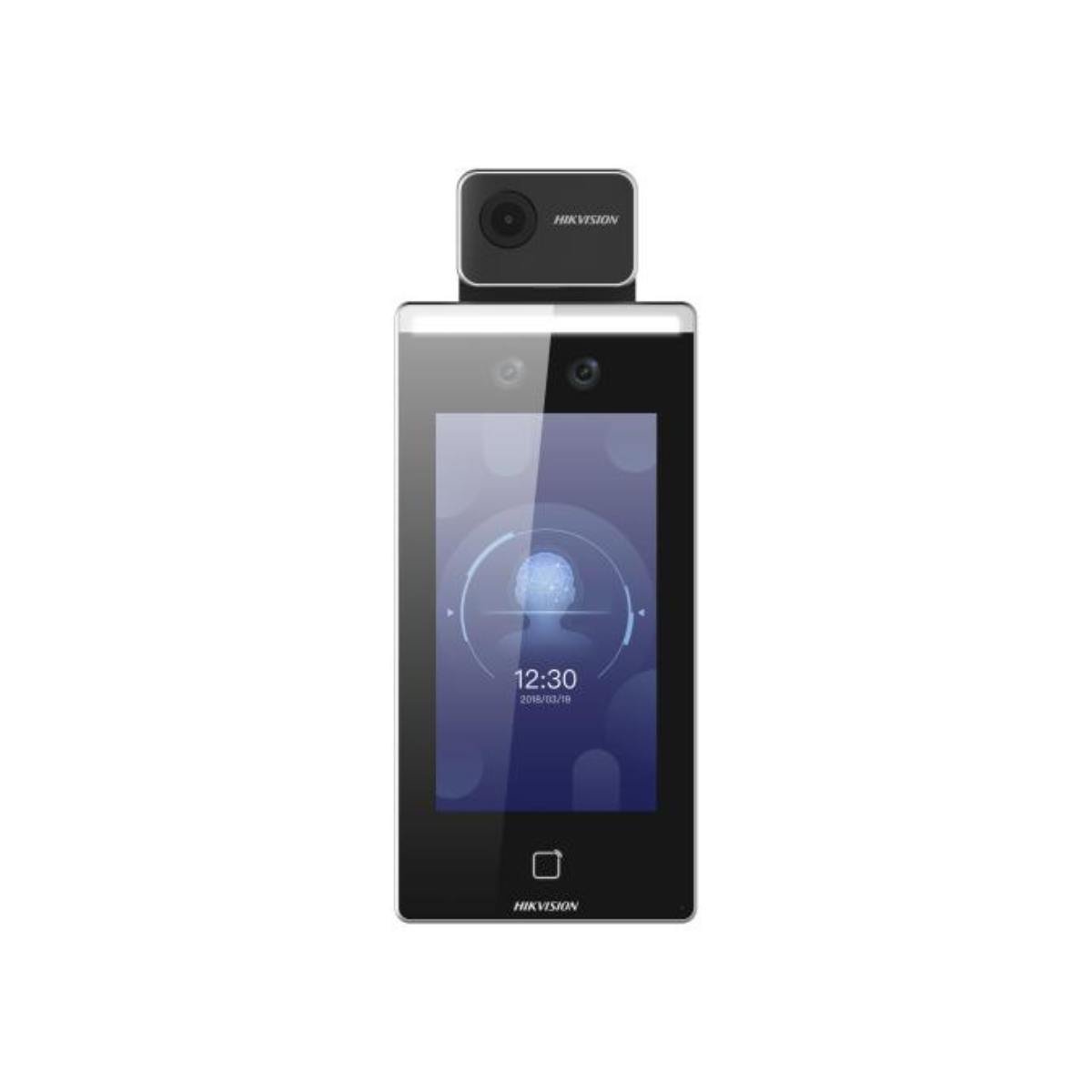

HIKVISION DS-K1TA70MI-T FACE RECOGNITION W/ TEMPERATURE SCREENING ACCESS CONTROL TERMINAL

Specifications:

• General Specifications

  • Power Supply: 12 VDC / 2 A

  • Working Temperature: 0‚¬Â¯C to 50‚¬Â¯C (32‚¬Â¯F to 122‚¬Â¯F)

  • Temperature Measurement Operating Range: 10‚¬Â¯C to 35‚¬Â¯C (50‚¬Â¯F to 95‚¬Â¯F)

  • Working Humidity: 10% to 90% (non-condensing)

  • Application Environment: Indoor, windless environment only

  • Gross Weight: 1.89 kg (4.17 lb)

  • Net Weight: 1.04 kg (2.29 lb)

• Temperature Measurement

  • Measurement Range: 30‚¬Â¯C to 45‚¬Â¯C (86‚¬Â¯F to 113‚¬Â¯F)

  • Sensor Type: Vanadium Oxide uncooled sensor

  • Resolution: 120 160

  • Frame Rate: 25 fps

  • Accuracy: 0.1‚¬Â¯C

  • Deviation: ±0.5‚¬Â¯C

  • Measuring Distance: 0.3 to 1.8 m

• Display

  • Screen Size: 7-inch

  • Type: Touch screen

• Video

  • Field of View (FOV): HFOV = 46, VFOV = 87

  • Camera Resolution: 2 MP

  • Lens Type: Dual-lens

• Network & Interfaces

  • Wired Network: Supported, 10/100/1000 Mbps self-adaptive

  • Interfaces:

    • Network Interface: 1

    • RS-485: 1

    • Wiegand: 1

    • Lock Output: 1

    • Exit Button: 1

    • Door Contact Input: 1

    • IO Input: 2

    • IO Output: 1

    • Tamper Switch: 1

• Capacity

  • Face Capacity: 6,000

  • Card Capacity: 6,000

  • Event Capacity: 100,000

• Authentication

  • Card Type: M1 card

  • Card Reading Distance: 0 to 5 cm

  • Card Reading Duration: < 1 second

  • Face Recognition Duration: < 0.2 seconds per person

  • Face Recognition Distance: 0.3 to 1.8 m

• Functions

  • Face Mask Detection: Supported

  • Face Anti-Spoofing: Supported

  • Live View: Supported

  • Audio Prompt: Supported

  • Temperature Display: Shown on authentication page
