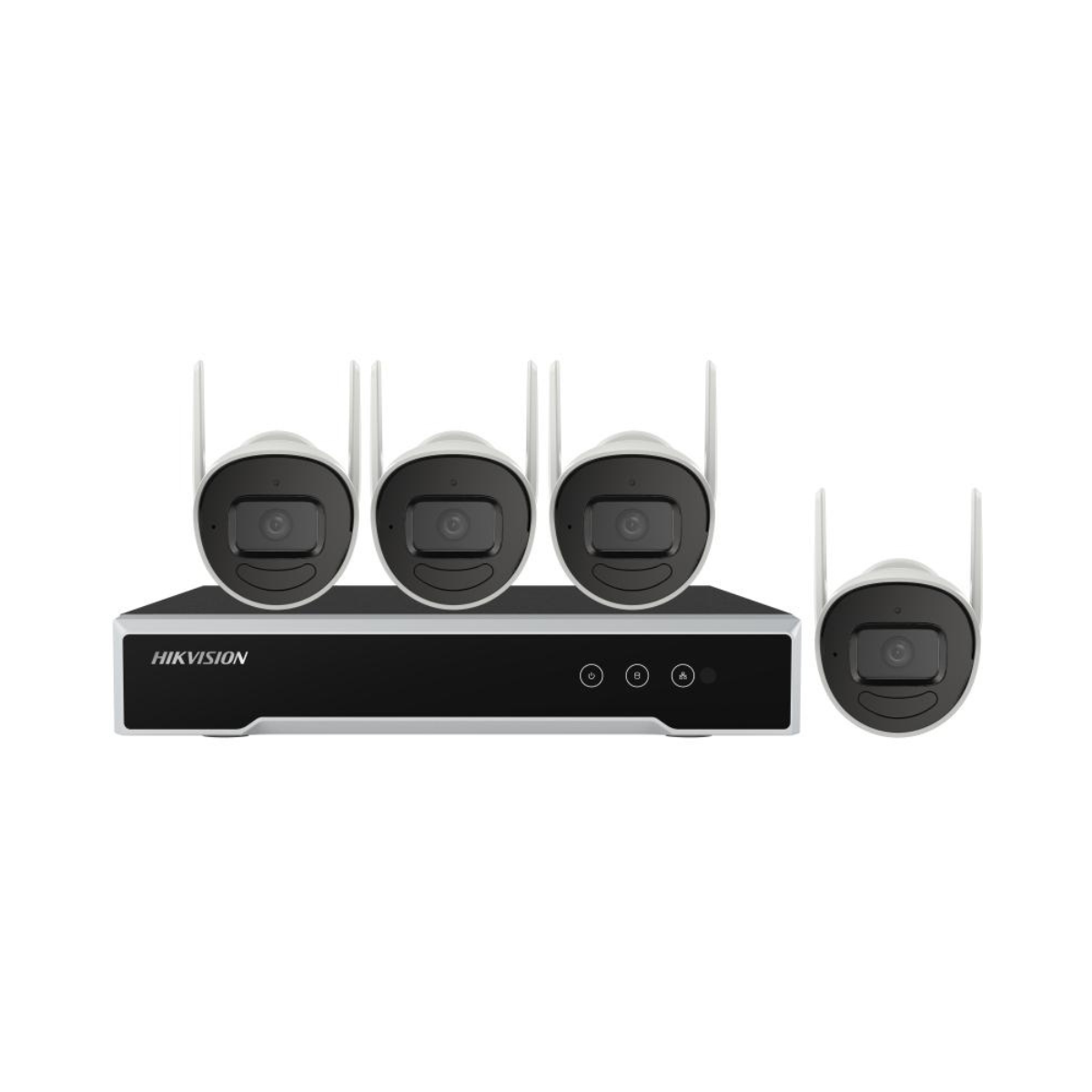

HIKVISION NK44W0H-1T 4CH NVR W/ 1TB WDPURX, 4 X BULLET 4MP WIFI CAMERA

Specifications:

• Camera Specifications:

  • Camera Case Type: Bullet

  • Image Sensor: 1/3" Progressive Scan CMOS

  • Min. Illumination:

    • Color: 0.018 Lux @ (F1.6, AGC ON)

    • 0 Lux with IR

  • Shutter Speed: 1/3 s to 1/100,000 s

  • Day & Night: IR cut filter

  • WDR: DWDR

  • Angle Adjustment:

    • Pan: 0 to 360

    • Tilt: 0 to 90

    • Rotate: 0 to 360

  • Protection Level: IP66

  • Material: Front cover: Plastic, Camera body: Metal

  • Wi-Fi Support: Yes

• Camera/Lens

  • Focal Length: 2.8 mm

  • Aperture: F1.6

  • Focus: Fixed

  • Field of View (FOV):

    • Horizontal: 97

    • Vertical: 52

    • Diagonal: 114

  • Lens Mount: M12

• Camera/IR

  • IR Range: Up to 30 m

• Camera/Compression Standard

  • Video Compression:

    • Main Stream: H.265+/H.264+/H.265/H.264

    • Sub-Stream: H.265/H.264

  • H.264 Type: Baseline Profile/Main Profile/High Profile

  • H.264+: Supported

  • H.265 Type: Main Profile

  • H.265+: Supported

  • Video Bit Rate: 32 Kbps to 8 Mbps

• Audio Compression

  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

  • Audio Bit Rate:

    • 64 Kbps (G.711 ulaw/alaw)

    • 16 Kbps (G.722.1/G.726)

    • 32-160 Kbps (MP2L2)

    • 16-64 Kbps (AAC)

  • Audio Sampling Rate: 8 kHz/16 kHz

  • Environment Noise Filtering: Yes

• Camera/Image

  • Max Resolution: 2560 1440

  • Main Stream Frame Rates:

    • 50Hz: 20 fps (2560 1440, 2304 1296, 1920 1080, 1280 720)

    • 60Hz: 20 fps (2560 1440, 2304 1296, 1920 1080, 1280 720)

  • Sub-stream Frame Rate: 20 fps (640 360)

  • Image Setting: Adjustable via client software or web browser (mirror, saturation, brightness, etc.)

  • Day/Night Switch: Auto/Scheduled/Day/Night

• Camera/Network

  • Alarm Trigger: Motion detection, exception

  • Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour

  • General Function: Anti-flicker, heartbeat, password reset via e-mail

  • Client Software: iVMS-4200, Hik-Connect

• Camera/Interface

  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

  • Audio I/O: 1 Built-in mic

  • Reset Button: Yes

• Camera/General

  • Power Supply: 12 VDC ± 25%, 0.5 A

  • Consumption: €°Â¤ 6 W

  • Working Temperature: -30 C to 60 C (-22 F to 140 F)

  • Working Humidity: 95% or less (non-condensing)

  • Dimensions (W D H): 175.6 73.0 89.1 mm (6.9" 2.9" 3.5")

  • Weight: 330 g (0.7 lb)

• NVR Specifications

  • IP Video Input: 4 channels

  • Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps

  • HDMI/VGA Output: 1-ch, multiple resolutions (1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz)

  • Audio Output: 1-ch, RCA (linear, 1 K)

• NVR/Decoding

  • Video Resolution: 4 MP/3 MP/1080p/1.3 MP/720p

  • Synchronous Playback: 4 channels

  • Capability: 4-ch @ 4 MP (12 fps)/4-ch @ 1080p (25 fps)

• NVR/Network

  • Network Interface: 1 RJ45 10/100M Ethernet

  • Network Protocol: IPv6, UPnP€žÂ¢, NTP, SADP, DHCP

  • Remote Connection: 16

• NVR/Wi-Fi

  • Frequency Band: 2.4 GHz

  • Antenna Structure: 2 2 MIMO

  • Transmission Speed: 144 Mbps

  • Transmission Standard: IEEE 802.11b/g/n

• NVR/Auxiliary Interface

  • SATA Interface: 1 (up to 6 TB)

  • USB Interface: 2 USB 2.0 (rear panel)

• NVR/General

  • Power Supply: 12 VDC

  • Consumption (without HDD and PoE off): €°Â¤ 12 W

  • Working Temperature: -10 C to 55 C (14 F to 131 F)

  • Working Humidity: 10% to 90%

  • Dimensions (W D H): 265 225 48 mm (10.4" 8.9" 1.9")

  • Weight (without hard disk): €°Â¤ 1.6 kg (3.5 lb)

• Kit Accessories

  • Power Cable: 4 IPC powe cables, 1 NVR power cable

  • Ethernet Cable: 1 m, RJ45, Cat5e UTP

  • HDMI Cable: 2 m

  • Hard Drive: Pre-installed 1 TB HDD

  • Certification: FCC, CE

  • Weight (with package): €°Â¤ 7 kg (15.4 lb)
