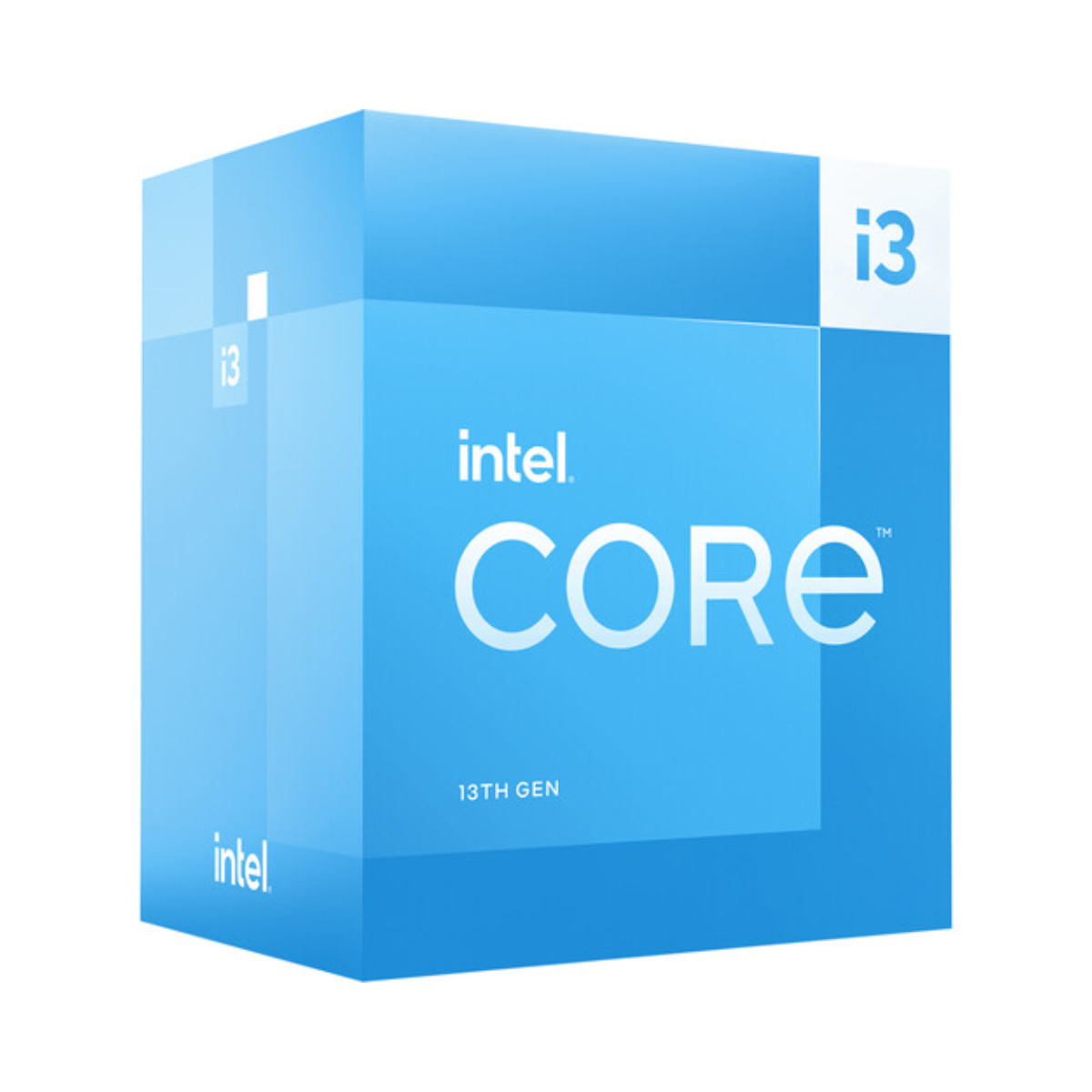

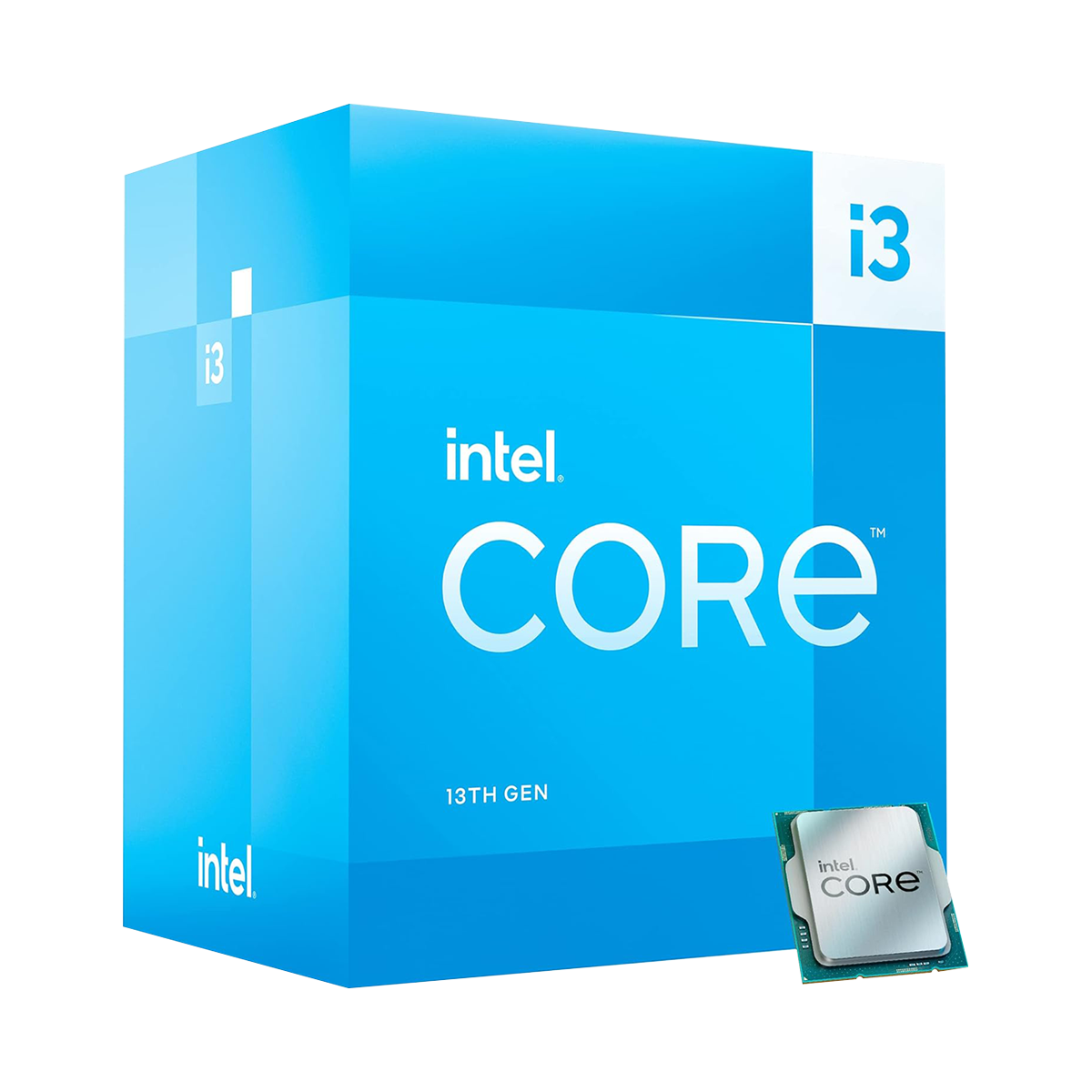

INTEL CORE I3 13100 3.4GHZ (MAX 4.5GHZ) 12MB 60W LGA1700

Specifications:

• Physical Core Count: 4

• # of Performance-cores: 4

• # of Efficient-cores: 0

• Total Threads: 8

• Max Turbo Frequency: 4.50 GHz

• Performance-core Max Turbo Frequency: 4.50 GHz

• Performance-core Base Frequency: 3.40 GHz

• Cache: 12 MB Intel Smart Cache

• Total L2 Cache: 5 MB

• Processor Base Power: 60 W

• Maximum Turbo Power: 110 W

Supplemental Information

• Marketing Status: Launched

• Launch Date: Q1'23

• Embedded Options Available: Yes

• Use Conditions: PC/Client/Tablet

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB

• Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s

• Max # of Memory Channels: 2

• Max Memory Bandwidth: 76.8 GB/s

GPU Specifications

• GPU Name: Intel UHD Graphics 730

• Graphics Base Frequency: 300 MHz

• Graphics Max Dynamic Frequency: 1.5 GHz

• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

• Execution Units: 24

• Max Resolution (HDMI): 4096 x 2160 @ 60Hz

• Max Resolution (DP): 7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

• DirectX Support:* 12

• OpenGL Support:* 4.5

• OpenCL Support:* 3.0

• Multi-Format Codec Engines: 1

• Intel Quick Sync Video: Yes

• Intel Clear Video HD Technology: Yes

• # of Displays Supported: 4

• Device ID: 0x4692

Expansion Options

• Direct Media Interface (DMI) Revision: 4.0

• Max # of DMI Lanes: 8

• Scalability: 1S Only

• PCI Express Revision: 5.0 and 4.0

• PCI Express Configurations ‚¬Â¡: Up to 1x16+4, 2x8+4

• Max # of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700

• Max CPU Configuration: 1

• Thermal Solution Specification: PCG 2020C

• TJUNCTION: 100C

• Package Size: 45.0 mm x 37.5 mm

• Max Operating Temperature: 100 C

Advanced Technologies

• Intel Gaussian & Neural Accelerator 3.0

• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes

• Intel Speed Shift Technology: Yes

• Intel Turbo Boost Technology ‚¬Â¡ 2.0

• Intel Hyper-Threading Technology ‚¬Â¡: Yes

• Intel 64 ‚¬Â¡: Yes

• Instruction Set: 64-bit, Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2

• Idle States: Yes

• Enhanced Intel SpeedStep Technology: Yes

• Thermal Monitoring Technologies: Yes

• Intel Volume Management Device (VMD): Yes

Security & Reliability

• Intel Standard Manageability (ISM) ‚¬Â¡: Yes

• Intel Control-Flow Enforcement Technology: Yes

• Intel AES New Instructions: Yes

• Secure Key: Yes

• Intel OS Guard: Yes

• Execute Disable Bit ‚¬Â¡: Yes

• Intel Boot Guard: Yes

• Mode-based Execute Control (MBEC): Yes

• Intel Virtualization Technology (VT-x) ‚¬Â¡: Yes

• Intel Virtualization Technology for Directed I/O (VT-d) ‚¬Â¡: Yes

• Intel VT-x with Extended Page Tables (EPT) ‚¬Â¡: Yes
