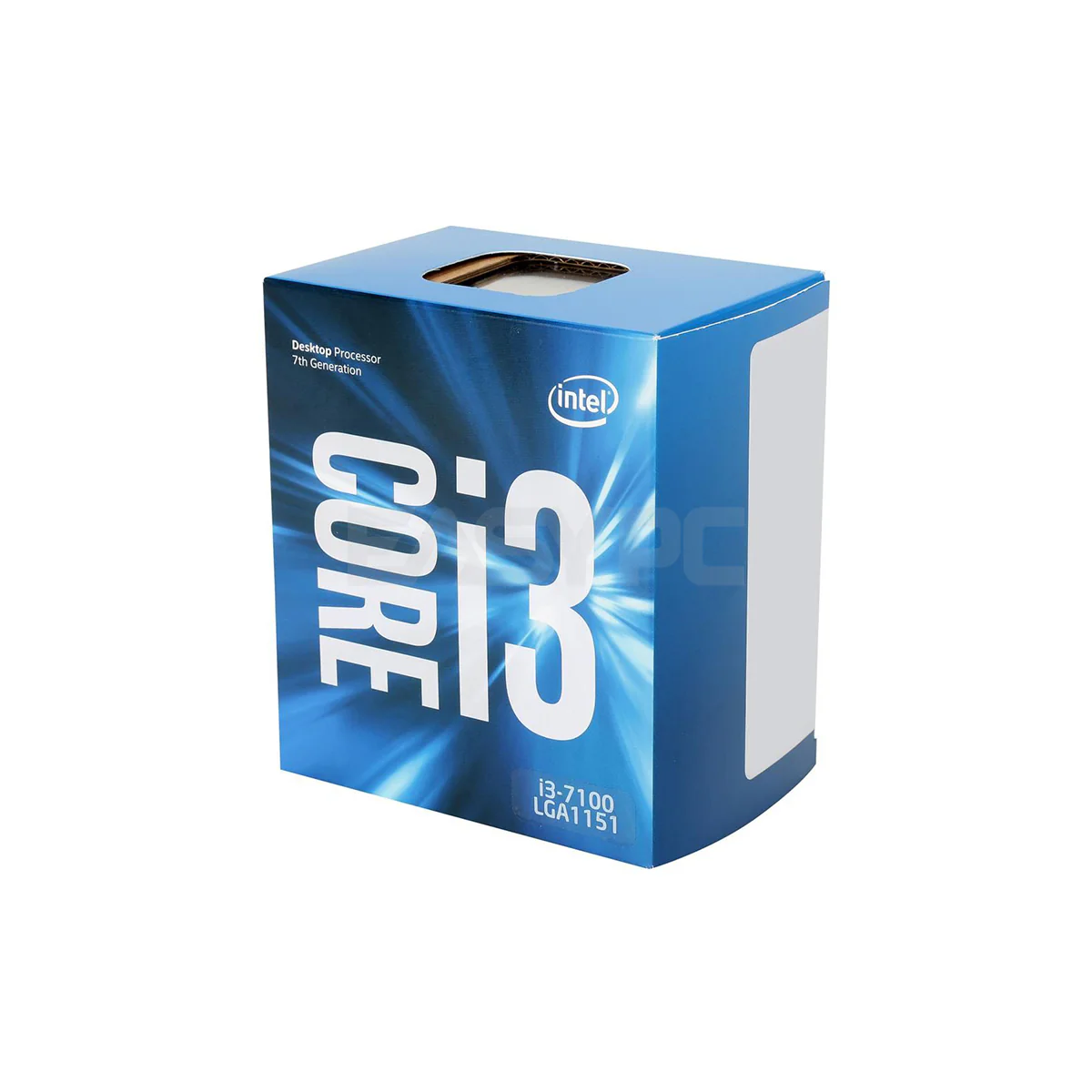

INTEL CORE I3 7100 3.9GHZ 3MB LGA1151 14NM

Intel Core i3-7100 Specifications:

• Product Collection: 7th Generation Intel Core€žÂ¢ i3 Processors

• Code Name: Kaby Lake

• Vertical Segment: Desktop

• Processor Number: i3-7100

• Lithography: 14 nm

• CPU Specifications:

  • Total Cores: 2

  • Total Threads: 4

  • Processor Base Frequency: 3.90 GHz

  • Cache: 3 MB Intel Smart Cache

  • Bus Speed: 8 GT/s

  • # of QPI Links: 0

  • TDP: 51 W

• Memory Specifications:

  • Max Memory Size: 64 GB (dependent on memory type)

  • Memory Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V

  • Max # of Memory Channels: 2

  • ECC Memory Supported: Yes

• GPU Specifications:

  • GPU Name: Intel HD Graphics 630

  • Graphics Base Frequency: 350 MHz

  • Graphics Max Dynamic Frequency: 1.10 GHz

  • Graphics Video Max Memory: 64 GB

  • 4K Support: Yes, at 60Hz

  • Max Resolution (HDMI): 4096x2304 @ 24Hz

  • Max Resolution (DP): 4096x2304 @ 60Hz

  • Max Resolution (eDP - Integrated Flat Panel): 4096x2304 @ 60Hz

  • DirectX Support: 12

  • OpenGL Support: 4.5

  • Intel Quick Sync Video: Yes

  • Intel InTru€žÂ¢ 3D Technology: Yes

  • Intel Clear Video HD Technology: Yes

  • Intel Clear Video Technology: Yes

  • # of Displays Supported: 3

  • Device ID: 0x5912

• Expansion Options:

  • Scalability: 1S Only

  • PCI Express Revision: 3.0

  • PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4

  • Max # of PCI Express Lanes: 16

• Package Specifications:

  • Sockets Supported: FCLGA1151

  • Max CPU Configuration: 1

  • Thermal Solution Specification: PCG 2015C (65W)

  • TJUNCTION: 100C

  • Package Size: 37.5 mm x 37.5 mm

• Advanced Technologies:

  • Intel Optane€žÂ¢ Memory Supported: Yes

  • Intel Turbo Boost Technology: No

  • Intel Hyper-Threading Technology: Yes

  • Intel Transactional Synchronization Extensions: No

  • Intel 64: Yes

  • Instruction Set: 64-bit

  • Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2

  • Idle States: Yes

  • Enhanced Intel SpeedStep Technology: Yes

  • Thermal Monitoring Technologies: Yes

  • Intel Identity Protection Technology: Yes

• Security & Reliability:

  • Intel Software Guard Extensions (Intel SGX): Yes with Intel ME

  • Intel AES New Instructions: Yes

  • Secure Key: Yes

  • Intel Memory Protection Extensions (Intel MPX): Yes

  • Intel OS Guard: Yes

  • Intel Trusted Execution Technology: No

  • Execute Disable Bit: Yes

  • Intel Boot Guard: Yes

  • Intel Stable IT Platform Program (SIPP): No

  • Intel Virtualization Technology (VT-x): Yes

  • Intel Virtualization Technology for Directed I/O (VT-d): Yes

  • Intel VT-x with Extended Page Tables (EPT): Yes
