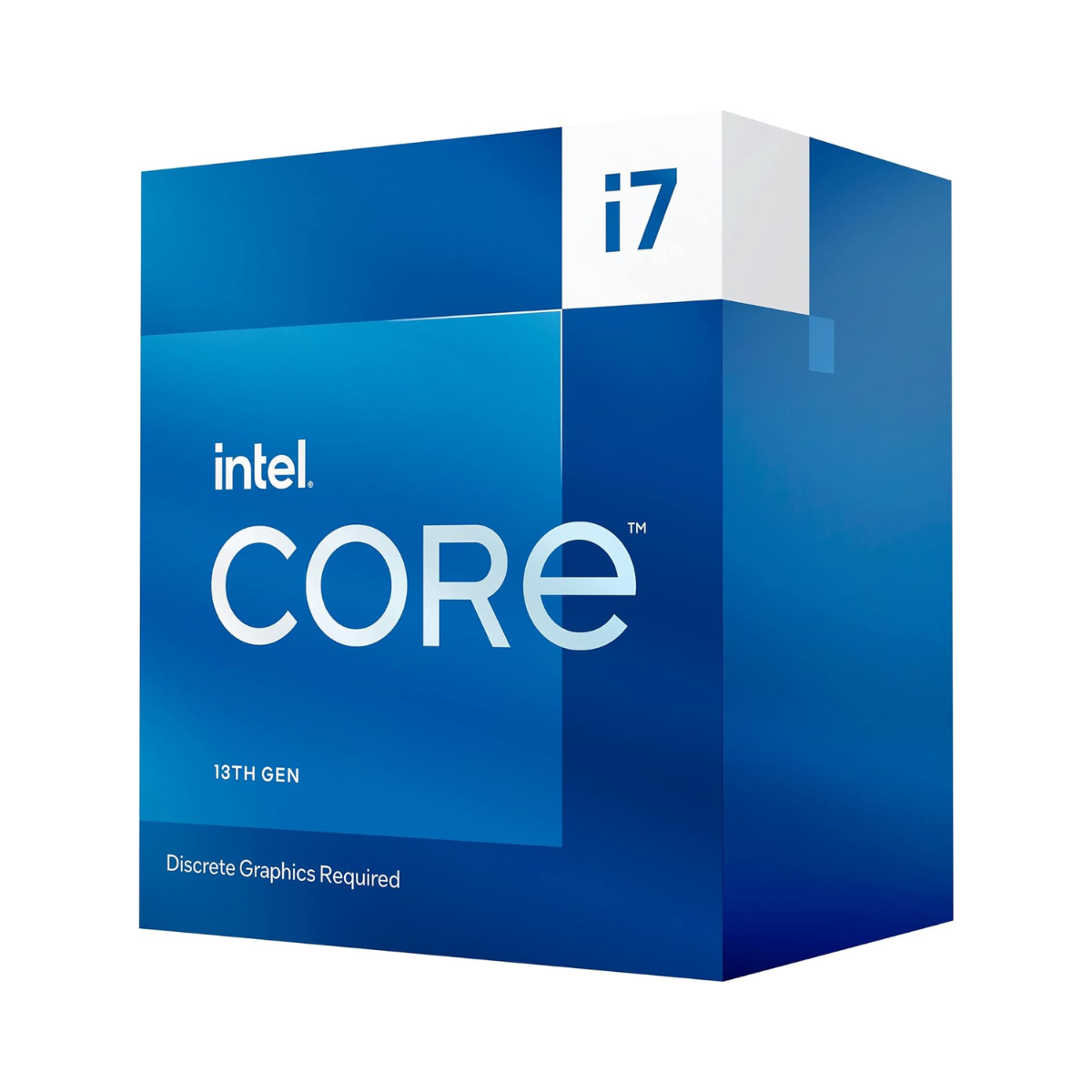

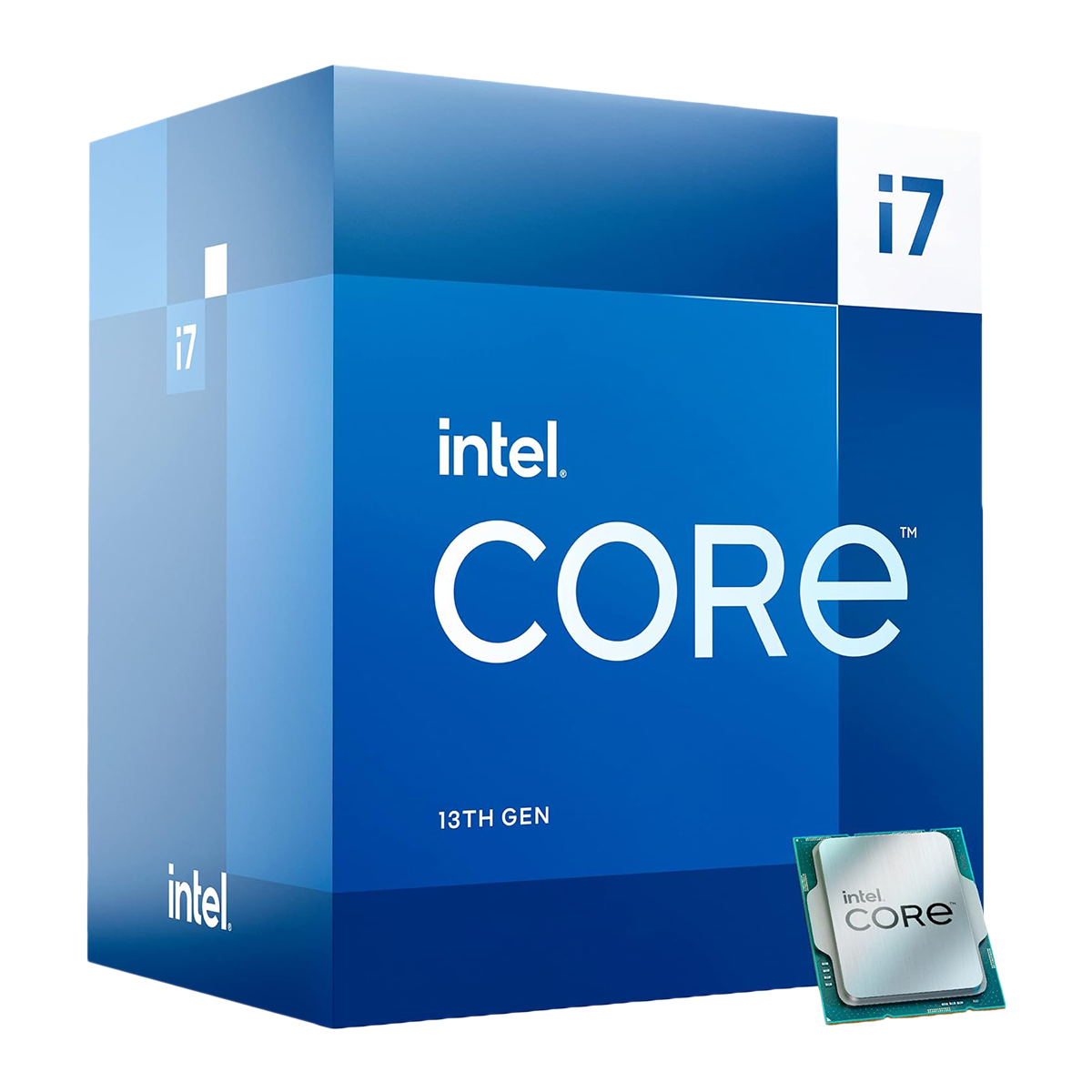

INTEL CORE I7 13700F 1.5GHZ (MAX 5.2GHZ) 30MB 65W LGA1700

Specifications:

• Physical Core Count: 16

• Number of Performance-cores: 8

• Number of Efficient-cores: 8

• Total Threads: 24

• Max Turbo Frequency: 5.20 GHz

• Intel Turbo Boost Max Technology 3.0 Frequency: 5.20 GHz

• Performance-core Max Turbo Frequency: 5.10 GHz

• Efficient-core Max Turbo Frequency: 4.10 GHz

• Performance-core Base Frequency: 2.10 GHz

• Efficient-core Base Frequency: 1.50 GHz

• Cache: 30 MB Intel Smart Cache

• Total L2 Cache: 24 MB

• Processor Base Power: 65 W

• Maximum Turbo Power: 219 W

Supplemental Information:

• Marketing Status: Launched

• Launch Date: Q1'23

• Embedded Options Available: No

• Use Conditions: PC/Client/Tablet

• Datasheet: View now

Memory Specifications:

• Max Memory Size (dependent on memory type): 192 GB

• Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s

• Max # of Memory Channels: 2

• Max Memory Bandwidth: 89.6 GB/s

Expansion Options:

• Direct Media Interface (DMI) Revision: 4.0

• Max # of DMI Lanes: 8

• Scalability: 1S Only

• PCI Express Revision: 5.0 and 4.0

• PCI Express Configurations: Up to 1x16+4, 2x8+4

• Max # of PCI Express Lanes: 20

Package Specifications:

• Sockets Supported: FCLGA1700

• Max CPU Configuration: 1

• Thermal Solution Specification: PCG 2020C

• TJUNCTION: 100C

• Package Size: 45.0 mm x 37.5 mm

• Max Operating Temperature: 100 C

Advanced Technologies:

• Intel Gaussian & Neural Accelerator 3.0

• Intel Thread Director: Yes

• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes

• Intel Speed Shift Technology: Yes

• Intel Turbo Boost Max Technology 3.0: Yes

• Intel Turbo Boost Technology 2.0: Yes

• Intel Hyper-Threading Technology: Yes

• Intel 64: Yes

• Instruction Set: 64-bit

• Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2

• Idle States: Yes

• Enhanced Intel SpeedStep Technology: Yes

• Thermal Monitoring Technologies: Yes

• Intel Volume Management Device (VMD): Yes

Security & Reliability:

• Intel Standard Manageability (ISM): Yes

• Intel Control-Flow Enforcement Technology: Yes

• Intel AES New Instructions: Yes

• Secure Key: Yes

• Intel OS Guard: Yes

• Execute Disable Bit: Yes

• Intel Boot Guard: Yes

• Mode-based Execute Control (MBEC): Yes

• Intel Virtualization Technology (VT-x): Yes

• Intel Virtualization Technology for Directed I/O (VT-d): Yes

• Intel VT-x with Extended Page Tables (EPT): Yes
