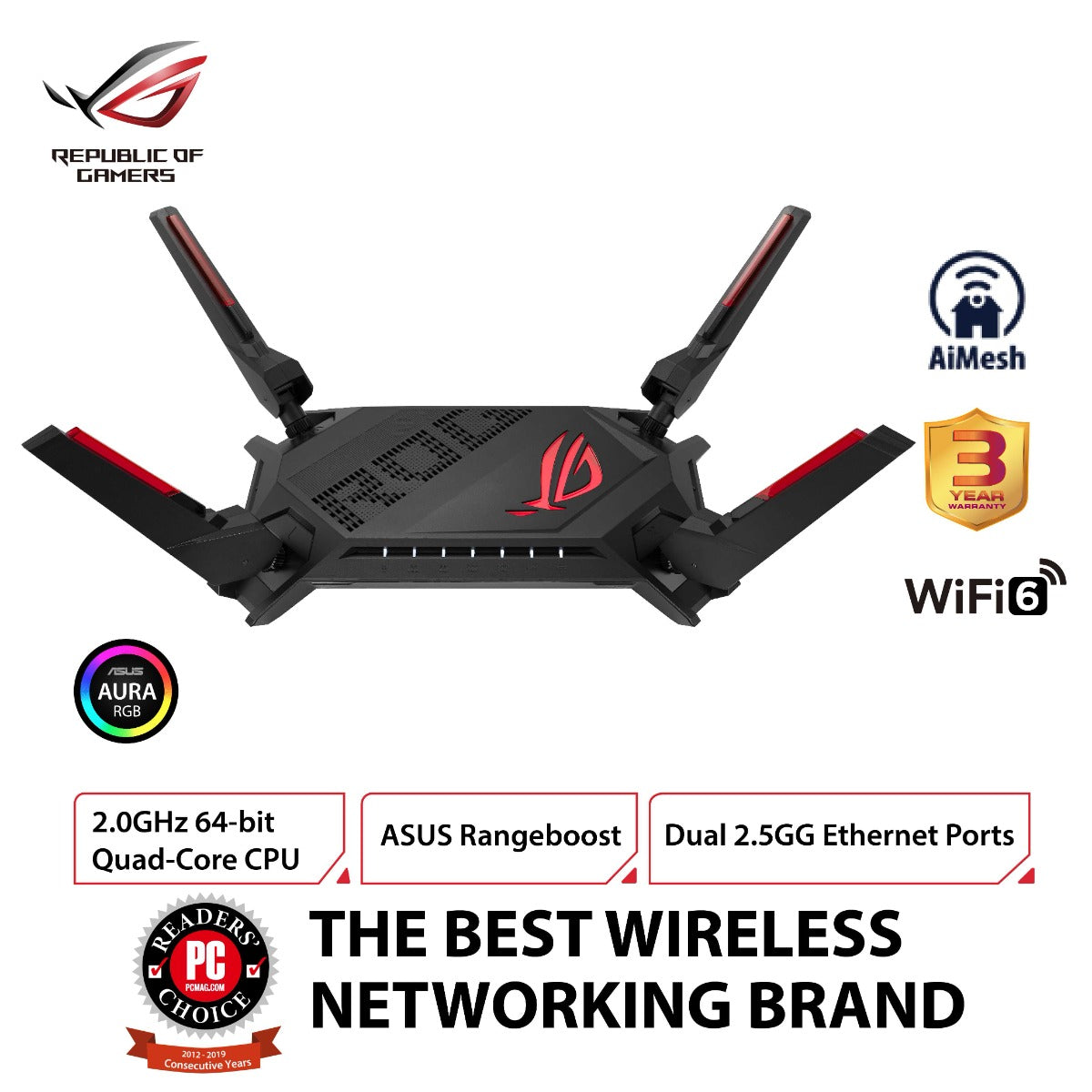

ASUS GT-AX6000 ROG RAPTURE WIFI 6 DUAL BAND GAMING ROUTER

Description

The ASUS ROG Rapture GT-AX6000 is a high-performance AX6000 Wi-Fi 6 gaming router powered by a 2.0 GHz quad-core processor and dual 2.5G WAN/LAN ports. Featuring customizable Aura RGB lighting, RangeBoost Plus technology for extended coverage, and triple-level game acceleration, it delivers low latency and high network throughput for competitive online gaming.

Specifications

Network Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6

Product Segment:

• AX6000 ultimate AX performance

WiFi Data Rates:

• 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
• 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna:

• Four external antennas

Transmit/Receive:

• 2.4GHz: 4x4
• 5GHz: 4x4

Processor:

• 2.0 GHz quad-core processor

Memory:

• 256 MB Flash
• 1 GB RAM

Boosts Speed:

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency:

• 2.4GHz / 5GHz

Operating Modes:

• Access Point
• AiMesh Node
• Media Bridge
• Repeater
• Router

I/O Ports:

• 1 x RJ45 for 2.5 Gigabits BaseT for WAN/LAN
• 1 x RJ45 for 2.5 Gigabits BaseT for LAN
• 4 x RJ45 for Gigabits BaseT for LAN
• 1 x USB 3.2 Gen 1
• 1 x USB 2.0

Buttons:

• WPS Button
• Reset Button
• Power Button
• LED Control Button

LED Indicators:

• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• 2.5G WAN x 1
• 2.5G LAN x 1
• LAN x 1
• WPS x 1

Power Supply:

• AC Input: 110V240V (5060Hz)
• DC Output: 19V with max. 2.37A or 19.5V with max. 2.31A

Package Content:

• GT-AX6000 WiFi 6 Dual-Band Gaming Router
• RJ-45 cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight:

• 1121.4 g

Product Dimensions:

• 337.7 x 196.0 x 220.9 mm

AiMesh Support:

• Primary AiMesh Router
• AiMesh Node

Gaming Features:

• Game Boost / Acceleration
• ROG_First
• OpenNAT (Game Profile)
• Gaming Port

Parental Control:

• Allow you to block access to unwanted websites and apps.
• Customized Internet Schedule

Guest Network:

• Provides Internet connection for guests with restrictions.
  • Maximum Guest Network Rule: 2.4GHz x 3, 5GHz x 3
• Guest Network Connection time limit
• Guest Network Encryption: Open system, WPA/WPA2/WPA3-Personal

Security:

• WiFi Encryption: Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• SSH
• Firewall
  • Maximum Firewall Keyword Filter: 64
  • Maximum Firewall Network Service Filter: 32
  • Maximum Firewall URL Filter: 64
