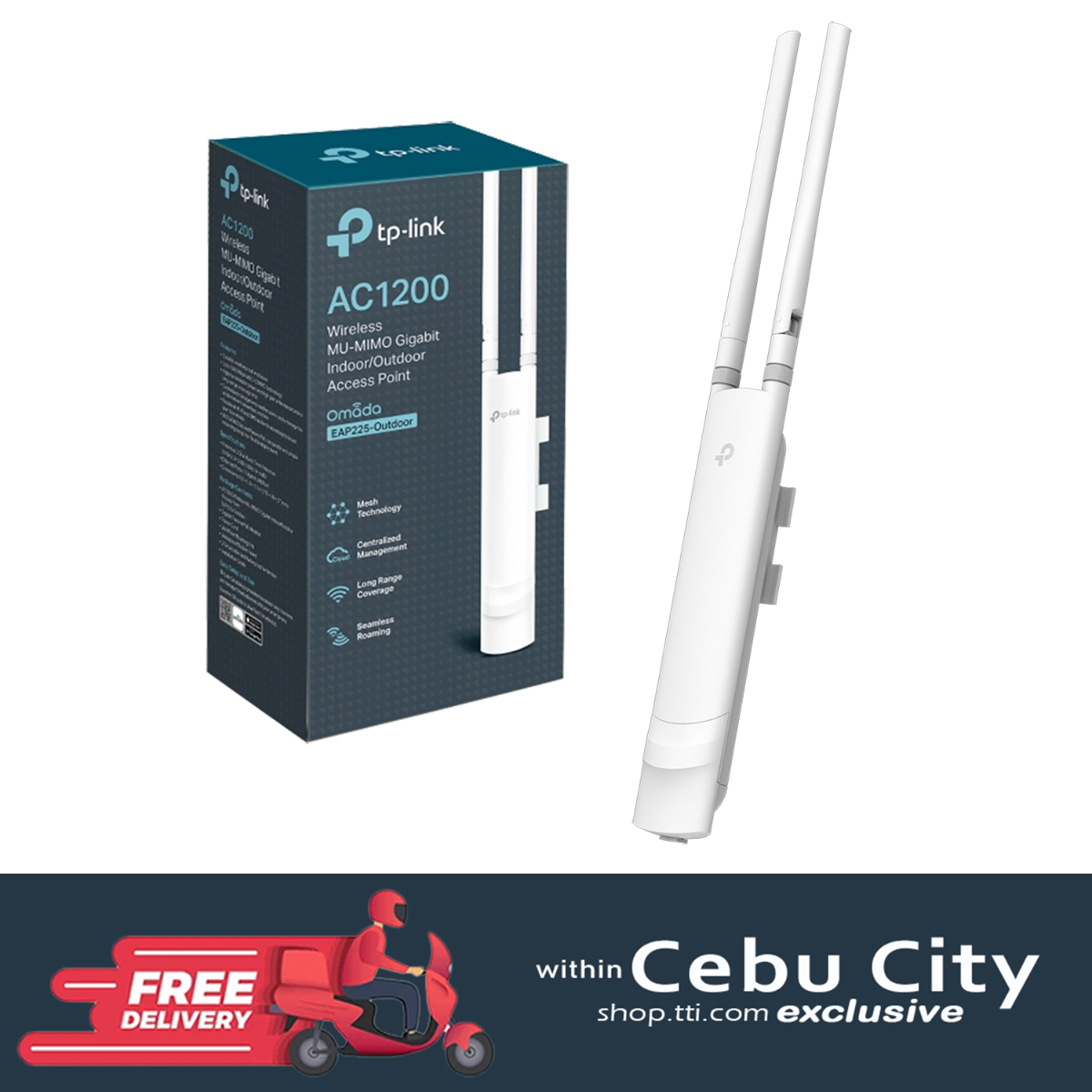

TPLINK OMADA EAP225-OUTDOOR AC1200 WIRELESS MU-MIMO GIGABIT INDOOR/OUTDOOR ACCESS POINT
TPLINK OMADA EAP225-OUTDOOR AC1200 WIRELESS MU-MIMO GIGABIT INDOOR/OUTDOOR ACCESS POINT
Regular price
₱2,990.00 PHP
Regular price
Sale price
₱2,990.00 PHP
Product Features
Product Features
| HARDWARE FUNCTION | |
|---|---|
| interface | 1 x Gigabit Ethernet (RJ-45) port (supports 802.3af PoE and Passive PoE) |
| button | Reset |
| power supply |
‚¬Â¢ 802.3af/at PoE ‚¬Â¢ 24V passive PoE (+4,5pins; -7,8pins. PoE adapter included) Do not connect anything other than the included passive PoE adapter or 802.3af/at PoE adapter . We cannot repair or guarantee failures caused by non-standard adapters other than 802.3af/at PoE adapters. |
| power consumption | 10.5W |
| Dimensions (Width x Depth x Height) |
215.7 45 37.7mm (without antenna and mounting kit) 403.8 90.7 55.2mm (with antenna and mounting kit) |
| antenna |
‚¬Â¢ 2.4GHz: 3dBi x 2 ‚¬Â¢ 5GHz: 4dBi x 2 |
| weatherproof enclosure | IP65 |
| attachment | Pole/wall mount (mounting kit included) |
| hardware monitoring | Yes |
| WIRELESS FUNCTION | |
|---|---|
| wireless standard | IEEE 802.11a/b/g/n/ac |
| Frequency range | 2.4GHz, 5GHz |
| signal rate |
802.11ac: 5G: 6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G: 78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b : 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18 , 24, 36, 48, 54 Mbps |
| wireless function |
Multiple SSIDs (up to 8 for each band, 16 SSIDs) Wi-Fi on/off channel auto-assignment power control (set in dBm) QoS (WMM) MU-MIMO seamless roaming* Omada mesh* air Time Fairness Beamforming Band Steering Load Balancing Rate Limiting Restart Schedule Radio Scheduling Wireless Statistics Per SSID/AP/Client |
| wireless security |
Captive portal authentication Access control Wireless MAC address filtering Wireless client isolation (privacy separator) SSID VLAN mapping Rogue AP detection 802.1X support |
| transmission power |
‚¬Â¢ CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP) ‚¬Â¢ FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz) |
| MANAGEMENT FUNCTION | |
|---|---|
| Omada app | Yes |
| centralized management |
‚¬Â¢ Omada Cloud Controller ‚¬Â¢ Omada Hardware Controller (OC300) ‚¬Â¢ Omada Hardware Controller (OC200) ‚¬Â¢ Omada Software Controller |
| Omada controller software | Yes |
| cloud access | Yes (via OC300, OC200, Omada cloud-based controller, Omada software controller) |
| Email alert | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Log Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based management | Yes |
| L3 management | Yes |
| Multi-site management | Yes |
| Management VLAN | Yes |
| Zero-touch provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| certification | CE, FCC, RoHS |
| Package contents |
Wireless LAN Access Point EAP225-Outdoor Main Unit Passive PoE Adapter Power Cord Mounting Kit Installation Guide Waterproof Rubber Valve Waterproof Antenna |
| system requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Operating environment |
Operating Temperature: -30€žÆ'~70€žÆ' (-22€ž"158€ž" Storage Temperature: -40€žÆ'~70€žÆ' (-40€ž"158€ž" Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Avoid condensation |
