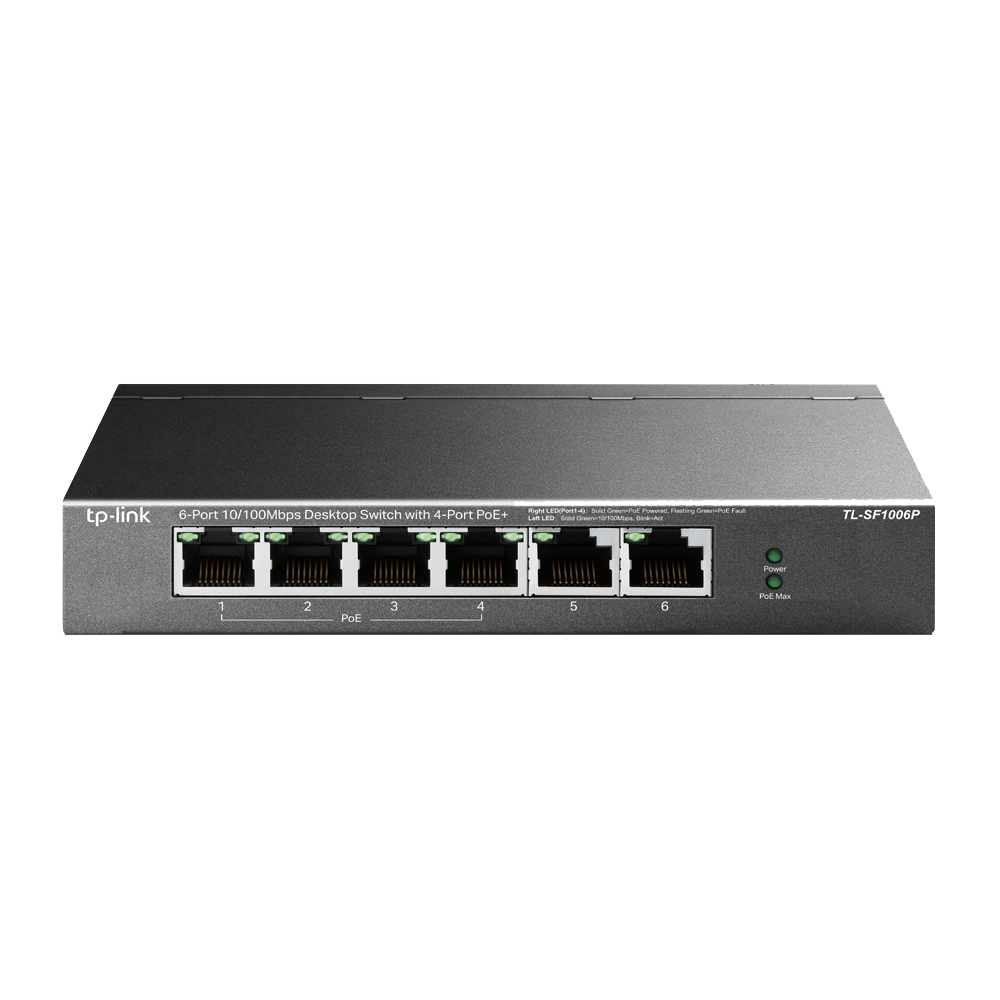

TPLINK SF1006P 6PORT 10/100 DESKTOP SWITCH WITH 4PORT POE+
TPLINK SF1006P 6PORT 10/100 DESKTOP SWITCH WITH 4PORT POE+
Regular price
₱1,690.00 PHP
Regular price
Sale price
₱1,690.00 PHP
Product Features
Product Features
| HARDWARE FEATURES | |
|---|---|
| Interface | ‚¬Â¢ 6 10/100 Mbps RJ45 Ports (ports 1‚¬"4 support 802.3af/at PoE+) ‚¬Â¢ AUTO Negotiation ‚¬Â¢ AUTO MDI/MDIX |
| Network Media | ‚¬Â¢ 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) ‚¬Â¢ 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 54 V DC / 1.3 A) |
| Packet Forwarding Rate | 892.8 Kpps |
| PoE Ports (RJ45) | ‚¬Â¢ Standard: 802.3 af/at compliant ‚¬Â¢ PoE Ports: Ports 1‚¬"4 ‚¬Â¢ Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption | ‚¬Â¢ 1.9 W (with no PD connected) ‚¬Â¢ 74 W (with 67 W PD connected) |
| Max Heat Dissipation | ‚¬Â¢ 6.5 BTU/h(with no PD connected) ‚¬Â¢ 252.3 BTU/h(with 67 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-and-forward |
| Advanced Functions | ‚¬Â¢ Compatible with IEEE 802.3af/at compliant power devices (PDs) ‚¬Â¢ Extend mode switch (Ports 1‚¬"4) ‚¬Â¢ Priority mode switch (Ports 1‚¬"2) ‚¬Â¢ MAC address auto-learning and auto-aging ‚¬Â¢ IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | ‚¬Â¢ TL-SF1006P ‚¬Â¢ Power Adapter ‚¬Â¢ Installation Guide |
| Environment | ‚¬Â¢ Operating Temperature: 0‚¬"40 €žÆ' (32‚¬"104 €ž" ‚¬Â¢ Storage Temperature: -40‚¬"70 €žÆ' (-40‚¬"158 €ž" ‚¬Â¢ Operating Humidity: 10‚¬"90% RH non-condensing ‚¬Â¢ Storage Humidity: 5‚¬"90% RH non-condensing |
