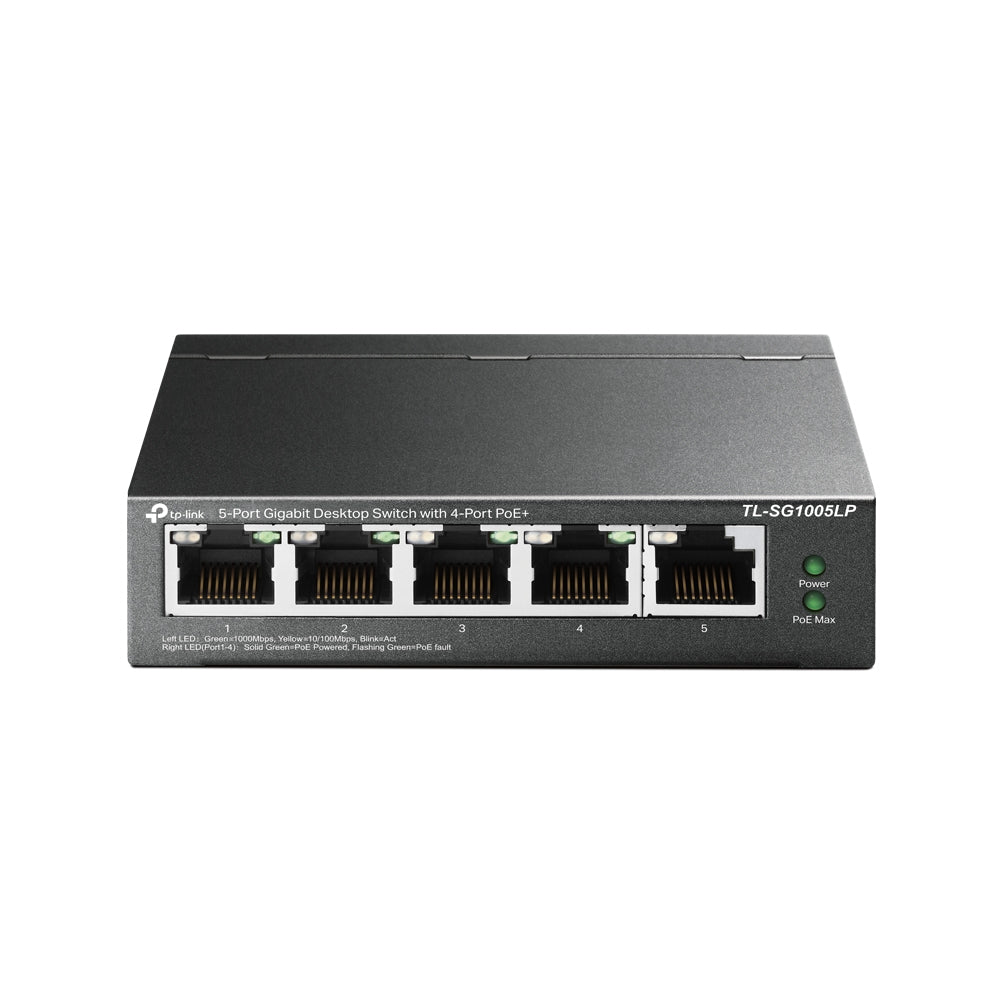

TPLINK SG1005LP 5PORT GIGABIT DESKTOP SWITCH W/ 4PORT POE+
TPLINK SG1005LP 5PORT GIGABIT DESKTOP SWITCH W/ 4PORT POE+
Regular price
₱1,390.00 PHP
Regular price
Sale price
₱1,390.00 PHP
Product Features
Product Features
HARDWARE FEATURES |
|
|---|---|
| Interface | ‚¬Â¢ 5 10/100/1000Mbps RJ45 Ports ‚¬Â¢ AUTO Negotiation ‚¬Â¢ AUTO MDI/MDIX |
| Network Media | ‚¬Â¢ 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) ‚¬Â¢ 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) ‚¬Â¢ 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | ‚¬Â¢ Standard: 802.3 af/at compliant ‚¬Â¢ PoE Ports: Ports 1‚¬"4 ‚¬Â¢ Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.93.91.0 in (99.89825 mm) |
| Max Power Consumption | ‚¬Â¢ 4.12 W (220/50 Hz. no PD connected) ‚¬Â¢ 47.5 W (220/50 Hz. with 40 W PD connected) |
| Max Heat Dissipation | ‚¬Â¢ 14.05 BTU/h (no PD connected) ‚¬Â¢ 161.98 BTU/h (with 40 W PD connected) |
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | ‚¬Â¢ Compatible With IEEE 802.3af/at Compliant PDs ‚¬Â¢ Mac Address Auto-Learning And Auto-Aging ‚¬Â¢ IEEE 802.3x Flow Control ‚¬Â¢ 802.1p/DSCP QoS ‚¬Â¢ IGMP Snooping |
| Transfer Method | Store-And-Forward |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | ‚¬Â¢ TL-SG1005LP ‚¬Â¢ Power Adapter ‚¬Â¢ Installation Guide |
| Environment | ‚¬Â¢ Operating Temperature: 0‚¬"40 €žÆ' (32‚¬"104 €ž"; ‚¬Â¢ Storage Temperature: -40‚¬"70 €žÆ' (-40‚¬"158 €ž" ‚¬Â¢ Operating Humidity: 10‚¬"90% RH non-condensing ‚¬Â¢ Storage Humidity: 5‚¬"90% RH non-condensing |
