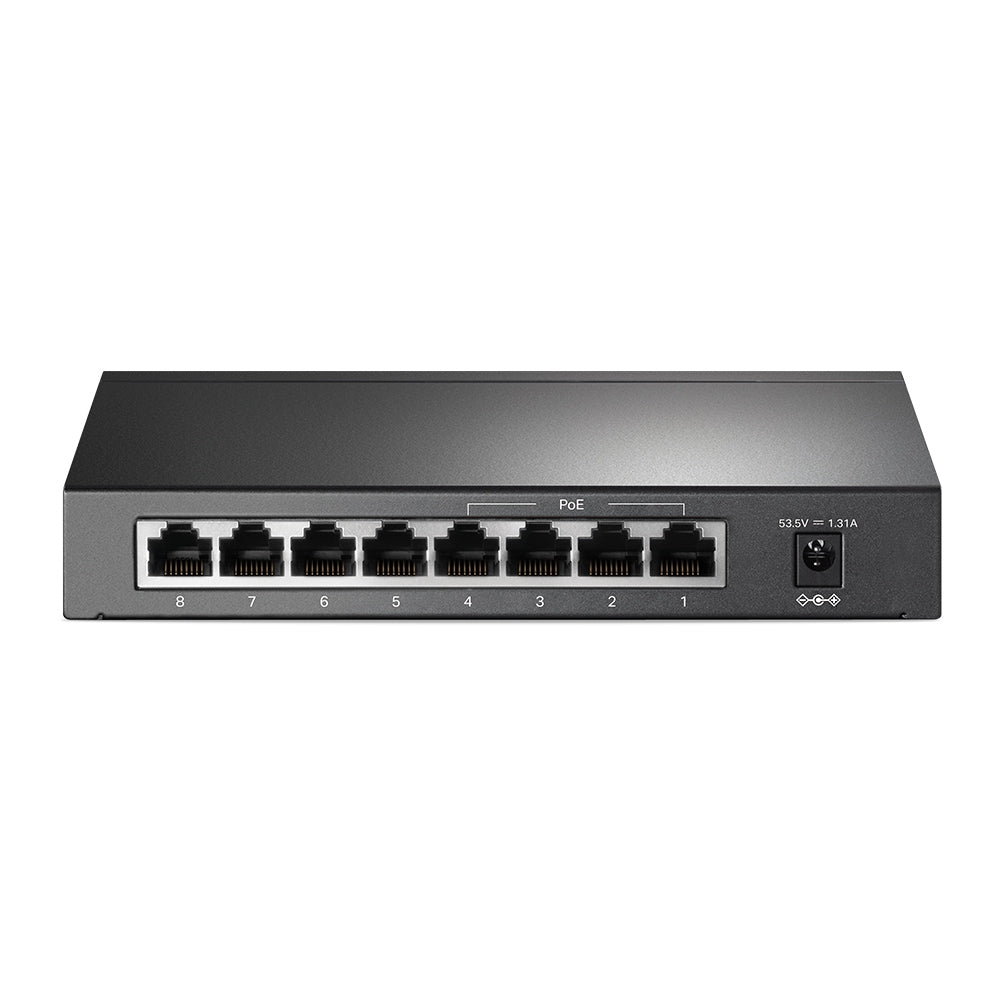

TPLINK SG1008P 8PORT GIGABIT SWITCH (4PORTS W/ POE SUPPORT)
TPLINK SG1008P 8PORT GIGABIT SWITCH (4PORTS W/ POE SUPPORT)
Regular price
₱2,990.00 PHP
Regular price
Sale price
₱2,990.00 PHP
Product Features
Product Features
HARDWARE FEATURES |
|
|---|---|
| Interface | 8 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | ‚¬Â¢ 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) ‚¬Â¢ 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) ‚¬Â¢ 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ‚¬Â¢ EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External power adapter (Output: 54VDC / 1.3A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | ‚¬Â¢ Standard: 802.3 af/at compliant ‚¬Â¢ PoE Ports: ports 1‚¬"4 ‚¬Â¢ Power budget for all PoE ports: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7 3.9 1.1 in (1719827 mm) |
| Max Power Consumption | ‚¬Â¢ 5.4 W (with no PD connected) ‚¬Â¢ 75 W (with 64W PD connected) |
| Max Heat Dissipation | ‚¬Â¢ 18.4 BTU/h (with no PD connected) ‚¬Â¢ 225.8 BTU/h (with 64 W PD connected) |
SOFTWARE FEATURES |
|
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | ‚¬Â¢ Compatible With IEEE 802.3af/at Compliant PDs ‚¬Â¢ IGMP Snooping ‚¬Â¢ Mac Address Auto-Learning And Auto-Aging ‚¬Â¢ IEEE802.3x Flow Control ‚¬Â¢ 802.1p/DSCP QoS |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ‚¬Â¢ TL-SG1008P ‚¬Â¢ Power Adapter ‚¬Â¢ Installation Guide |
| Environment | ‚¬Â¢ Operating Temperature: 0‚¬"40 €žÆ' (32‚¬"104 €ž"; ‚¬Â¢ Storage Temperature: -40‚¬"70 €žÆ' (-40‚¬"158 €ž" ‚¬Â¢ Operating Humidity: 10‚¬"90% RH non-condensing ‚¬Â¢ Storage Humidity: 5‚¬"90% RH non-condensing |
