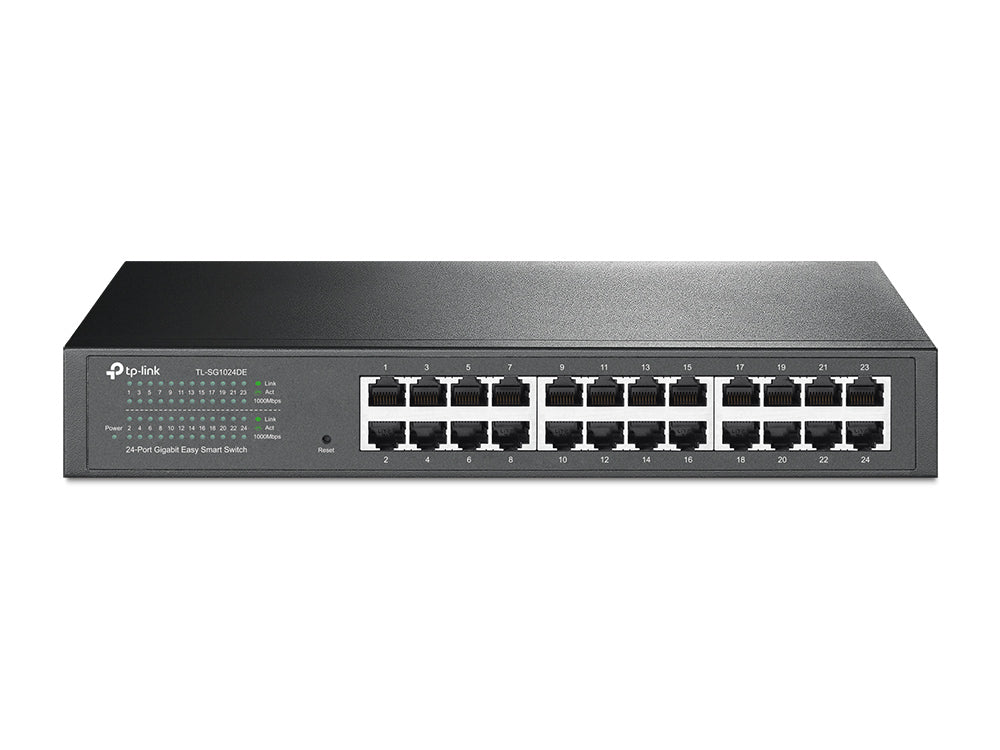

TPLINK SG1024DE 24PORT GIGABIT SMART SWITCH
TPLINK SG1024DE 24PORT GIGABIT SMART SWITCH
Regular price
₱6,990.00 PHP
Regular price
Sale price
₱6,990.00 PHP
Product Features
Product Features
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 14.19W (220V/50Hz) |
| Max Heat Dissipation | 48.39 BTU/h |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 10KB |
SOFTWARE FEATURES |
|
|---|---|
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1024DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| System Requirements | Microsoft Windows for Easy Smart Utility |
| Environment | Operating Temperature: 0€žÆ'~40€žÆ' (32€ž"104€ž" Storage Temperature: -40€žÆ'~70€žÆ' (-40€ž"158€ž" Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
