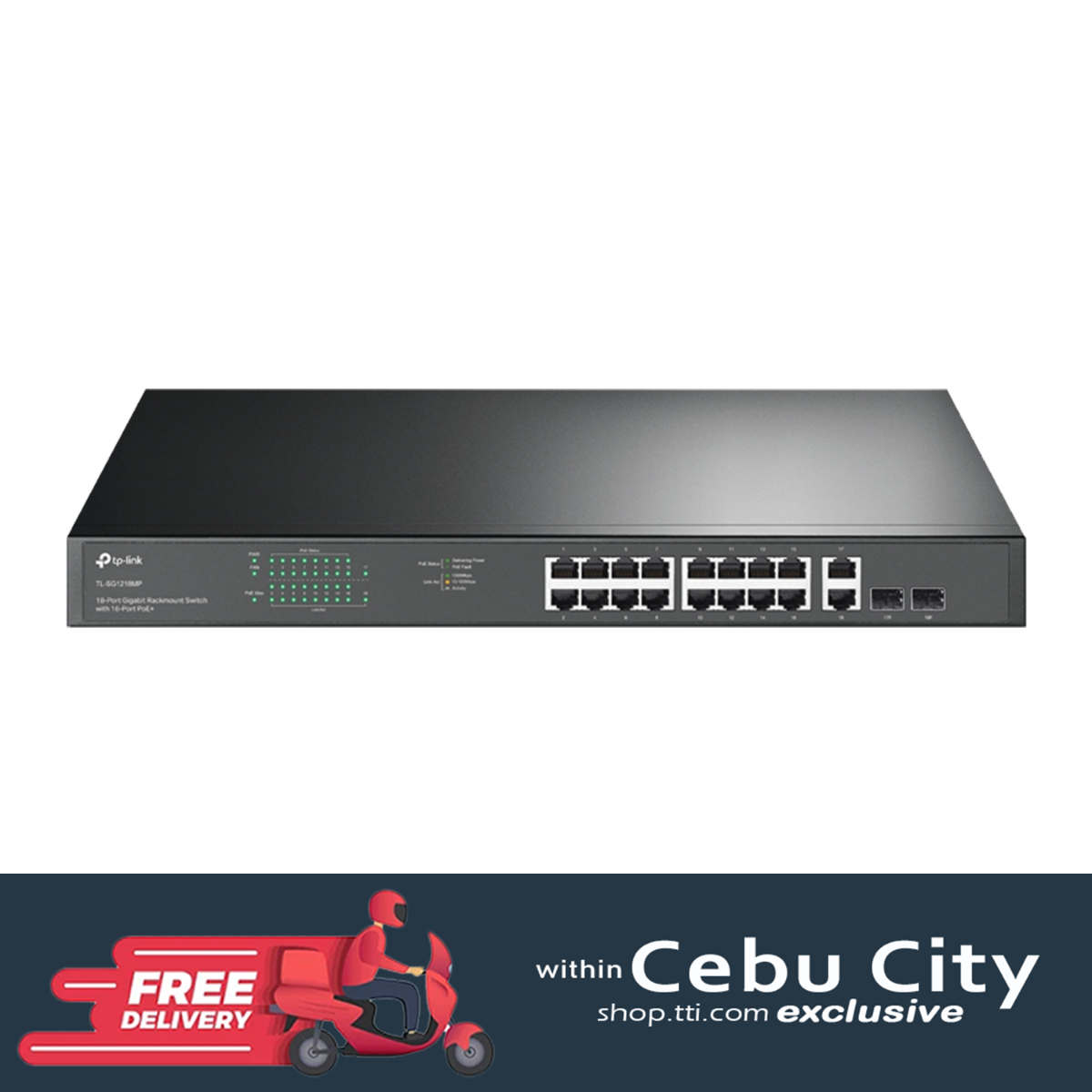

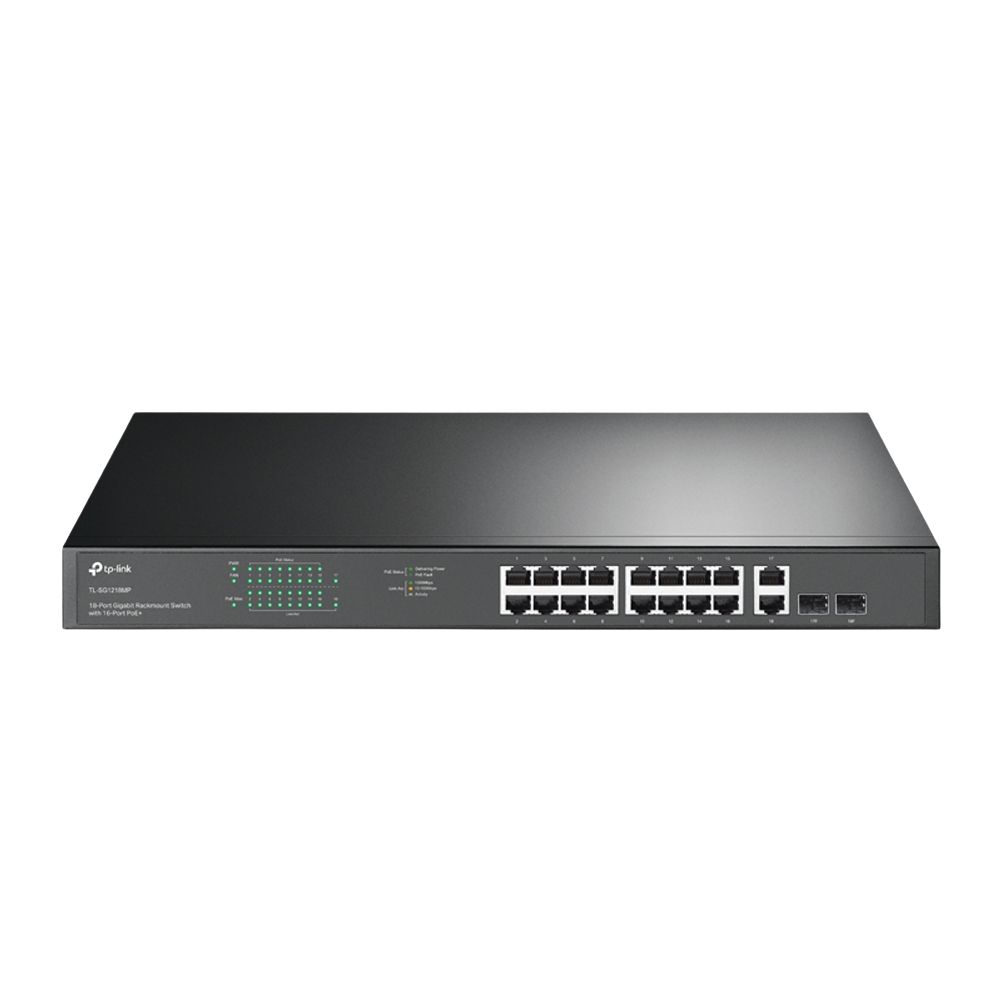

TPLINK SG1218MP 18PORT GIGABIT RACKMOUNT SWITCH WITH 16PORT POE+
TPLINK SG1218MP 18PORT GIGABIT RACKMOUNT SWITCH WITH 16PORT POE+
Regular price
₱11,990.00
Regular price
Sale price
₱11,990.00
Product Features
Product Features
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 PoE+ gigabit RJ45 ports 2 gigabit non-PoE RJ45 ports 2 combo gigabit SFP slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100‚¬"240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 1‚¬"16 PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 7.1 1.73 in. (440 180 44 mm) |
| Mounting | 19" 1U rack mountable |
| Max Power Consumption | 21.4 W (no power device connected) 286.6 W (with 250 W power devices connected) |
| Max Heat Dissipation | 73.0 BTU/h (no PD connected) 977.4 BTU/h (with 250 W PD connected) |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs 802.1p/DHCP QoS Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Jumbo Frame | 10 KB |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1218MP Installation Guide Power Cord Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0‚¬"50 C (32‚¬"122 F) Storage Temperature: -40‚¬"70 C (-40‚¬"158 F) Operating Humidity: 10‚¬"90% RH non-condensing Storage Humidity: 5‚¬"90% RH non-condensing |
