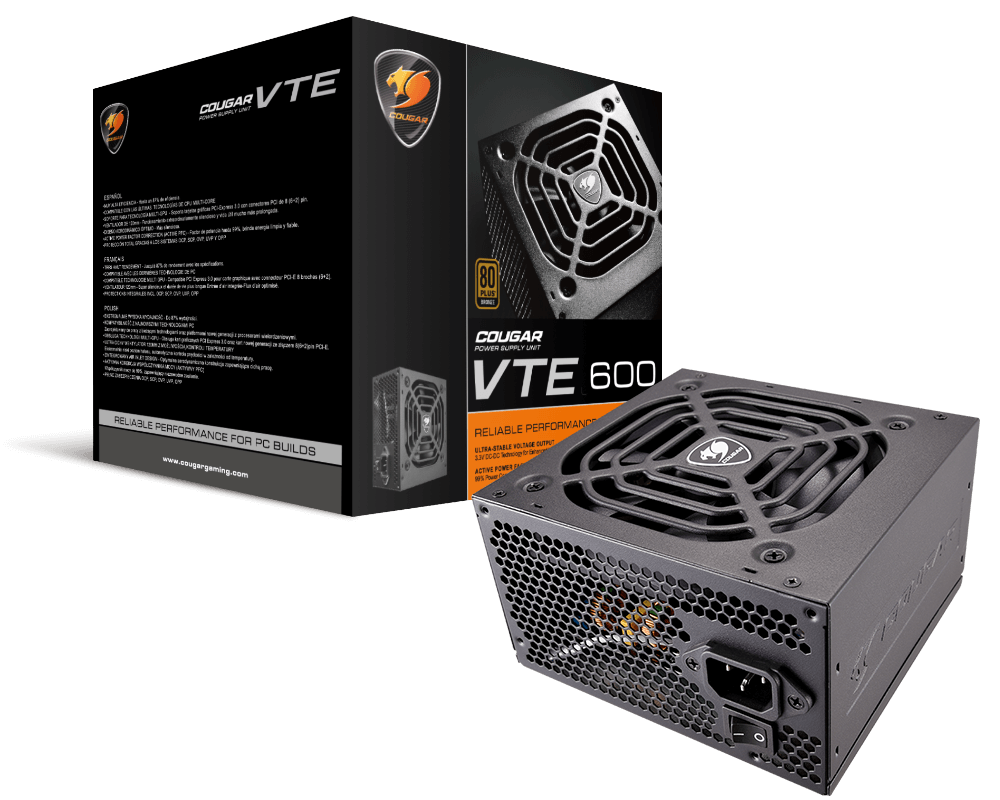

COUGAR VTE600 600W, 120MM FAN, ACTIVE PFC, 80-PLUS BRONZE

COUGAR VTE600 600W, 120MM FAN, ACTIVE PFC, 80-PLUS BRONZE

₱2,750.00 PHP
₱2,750.00 PHP
Sale Sold out

Product Features

Specifications

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
VTE400
CGR BS-400 		100-240V
50-60Hz 6.5-4A		 16A 18A 30A 0.3A 2.5A 400W
120W 360W
VTE500
CGR BS-500 		100-240V
50-60Hz 10-6A		 16A 18A 37.5A 0.3A 2.5A 500W
135W 450W
VTE600
CGR BS-600 		16A 20A 45A 0.3A 2.5A 600W
150W 540W

Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins
8 Pins		 4 Pins 5 Pins 8(6+2) Pins
VTE400 1 1 2 4 1
VTE500 1 1 2 5 2
VTE600 1 1 2 6 2

Protection

OCP (Overcurrent Protection)

  • If the current on a single line is higher than indicated, the PSU automatically switches off.

UVP (Under Voltage Protection)

  • If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over Voltage Protection)

  • If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-Circuit Protection)

  • In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OPP (Over Power Protection)

  • If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

Packing Data

VTE500 VTE600
Product Number (P/N) 31VE050.0003P 31VE060.0003P
Model Number (M/N) All : CGR BS-500
RU : CGR BS-500R		 All : CGR BS-600
RU : CGR BS-600R
EAN CODE All : 4715302448851
UK : 4715302448882		 All : 4715302448868
UK : 4715302448899
JAN CODE 4541995032196 4541995032202
Individual W/O Packaging Weight (N.Weight) 1.75 (Kg)
Individual Packaging Weight (G.Weight) 1.94 (Kg)
Individual Size W/O Packaging (LxWxH) 140x150x86 (mm)
Individual Packaging Size (LxWxH) 187x158x165 (mm)
