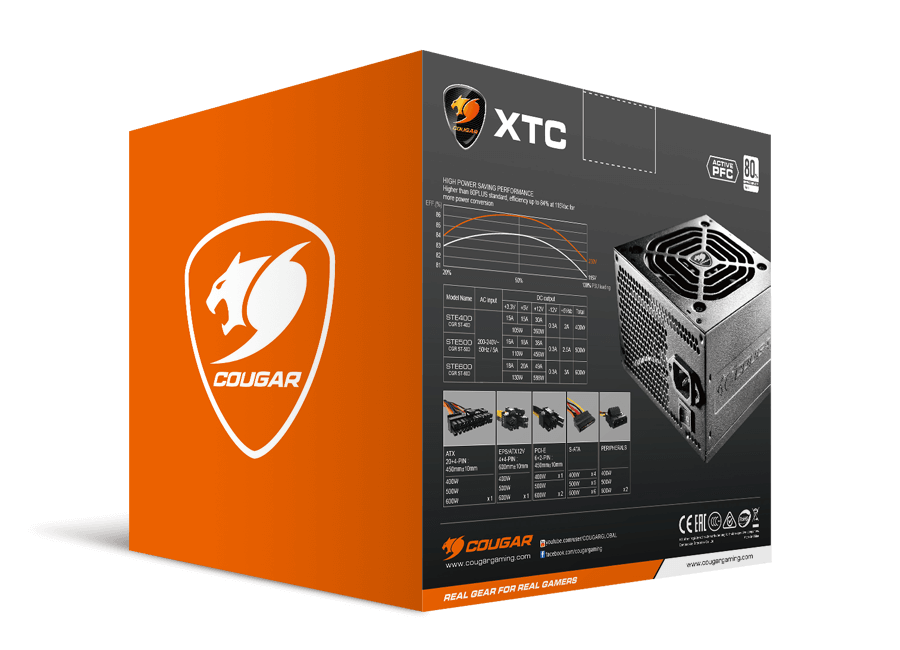

COUGAR XTC600 600W, 120MM FAN, ACTIVE PFC, 80-PLUS

COUGAR XTC600 600W, 120MM FAN, ACTIVE PFC, 80-PLUS

₱2,350.00 PHP
₱2,350.00 PHP
Sale Sold out

Product Features

Specifications

Product Name AC Input DC Output
+3.3V +5V +12V -12V +5Vsb Total
XTC400 200-240V~
50Hz / 5A		 15A 15A 30A 0.3A 2A 400W
105W 360W
XTC500 16A 18A 38A 0.3A 2.5A 500W
110W 456W
XTC600 18A 20A 49A 0.3A 3A 600W

Connector
Color Cables 		COUGAR XTC - POWER SUPPLY
MB 		COUGAR XTC - POWER SUPPLY
CPU 		COUGAR XTC - POWER SUPPLY
P-ATA 		COUGAR XTC - POWER SUPPLY
S-ATA 		COUGAR XTC - POWER SUPPLY
PCI-E
Pin 24(20+4) 8(4+4) 4 5 8(6+2)
Length (mm) 450 550 (XTC400)
600 (XTC500)
650 (XTC600)		 450 450 450
XTC400 1 1 2 4 1
XTC500 1 1 2 5 2
XTC600 1 1 2 6 2

Protection

UVP (Under Voltage Protection)

  • If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over Voltage Protection)

  • If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-Circuit Protection)

  • In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OPP (Over Power Protection)

  • If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

OCP (Overcurrent Protection)

  • If the current on a single line is higher than indicated, the PSU automatically switches off.

Packing Data

XTC400 XTC450 XTC500 XTC550 XTC600 XTC650 XTC750
Product Number (P/N) 31XC040.0001P 31XC450.0001P 31XC050.0001P 31XC550.0001P 31XC060.0001P 31XC650.0001P 31TC075032H-01
Model Number (M/N) CGR ST-400 CGR ST-450 CGR ST-500 CGR ST-550 CGR ST-600 CGR ST-650 CGR ST-750
Individual W/O Packaging
Weight (N.Weight)		 1.2 (Kg) 1.3 (Kg) 1.3 (Kg) 1.35 (Kg) 1.4 (Kg) 1.4 (Kg) 1.4 (Kg)
Individual Packaging
Weight (G.Weight)		 1.5 (Kg) 1.6 (Kg) 1.6 (Kg) 1.65 (Kg) 1.7 (Kg) 1.7 (Kg) 1.7 (Kg)
Individual Size W/O
Packaging (LxWxH)		 140 x 150 x 86 (mm)
Individual Packaging
Size (LxWxH)		 187 X 158 x 165 (mm)
