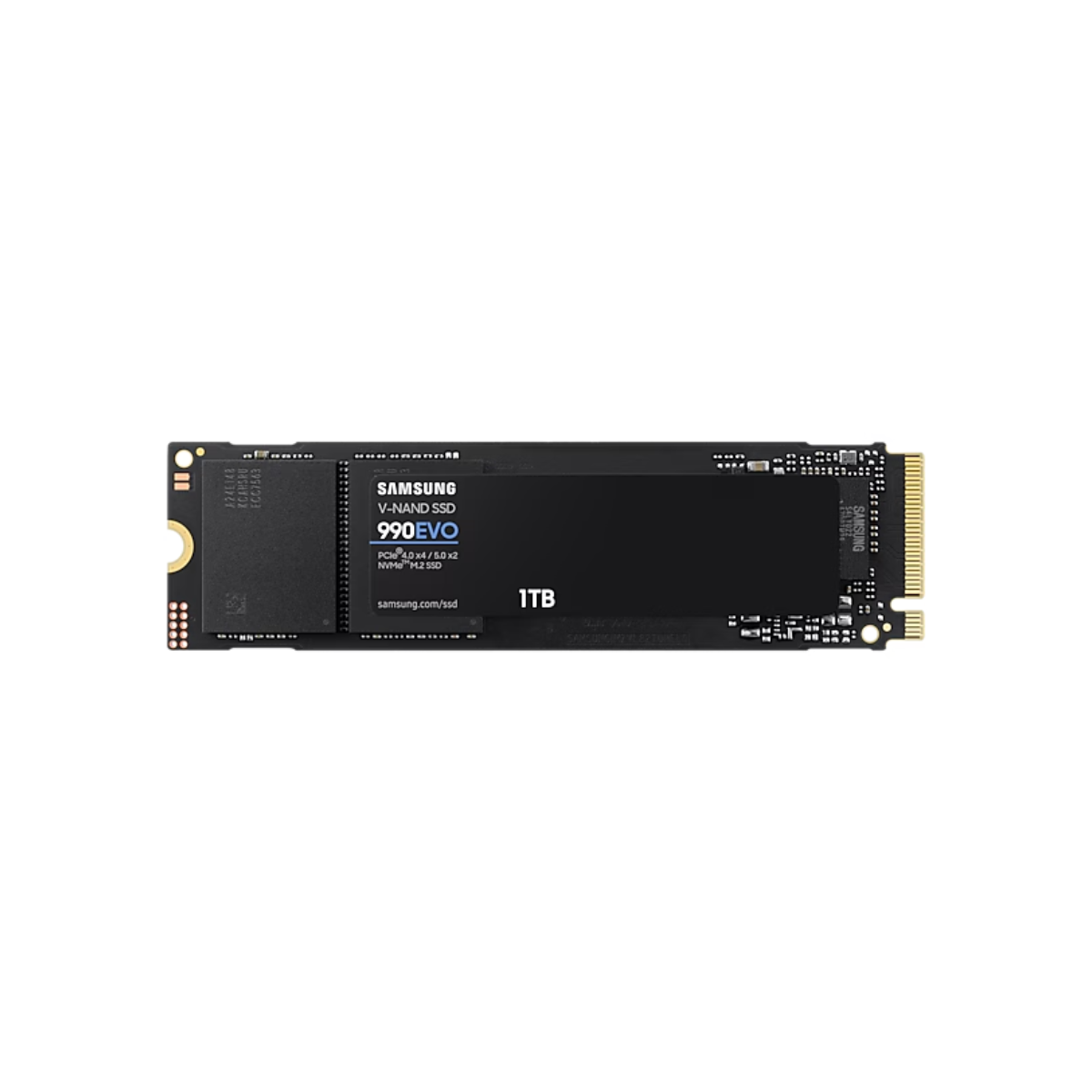

SAMSUNG 1TB M.2 PCIE NVME SSD 990 EVO (MZV9E1T0BW)

Specifications:

• Application: Client PCs

• Rated Capacity: 1,000GB (1GB = 1 billion bytes by IDEMA; actual usable capacity may be less due to formatting, partitioning, and system use)

• Form Factor: M.2 (2280)

• Interface: PCIe 4.0 x4 / 5.0 x2 NVMe€žÂ¢ 2.0

• Dimensions (WxHxD): 80 x 22 x 2.38 mm

• Weight: Max 9.0 g

• Storage Memory: Samsung V-NAND TLC

• Controller: Samsung in-house Controller

• Cache Memory: HMB (Host Memory Buffer)

• Special Features:

  • TRIM Support: Supported

  • S.M.A.R.T Support: Supported

  • Garbage Collection: Auto Garbage Collection Algorithm

  • Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)

  • WWN Support: Not supported

  • Device Sleep Mode Support: Yes

• Performance:

  • Sequential Read Speed: Up to 5,000 MB/s (performance may vary based on system hardware & configuration)

  • Sequential Write Speed: Up to 4,200 MB/s (performance may vary based on system hardware & configuration)

  • Random Read (4KB, QD32): Up to 680,000 IOPS (performance may vary based on system hardware & configuration)

  • Random Write (4KB, QD32): Up to 800,000 IOPS (performance may vary based on system hardware & configuration)

  • Random Read (4KB, QD1): Up to 20,000 IOPS (performance may vary based on system hardware & configuration)

  • Random Write (4KB, QD1): Up to 90,000 IOPS (performance may vary based on system hardware & configuration)

• Environment:

  • Average Power Consumption: Read: 4.9 W, Write: 4.5 W (actual power consumption may vary depending on system hardware & configuration)

  • Power Consumption (Idle): Typical 60 mW (actual power consumption may vary depending on system hardware & configuration)

  • Power Consumption (Device Sleep): Typical 5 mW (actual power consumption may vary depending on system hardware & configuration)

  • Allowable Voltage: 3.3 V ± 5%

  • Reliability (MTBF): 1.5 million hours

  • Operating Temperature: 0 - 70C

  • Shock Resistance: 1,500 G & 0.5 ms (Half sine)

• Accessories: Installation Kit not available

• Software: Magician Software for SSD management

• Warranty: Five (5) year limited warranty or 600 TBW limited warranty
