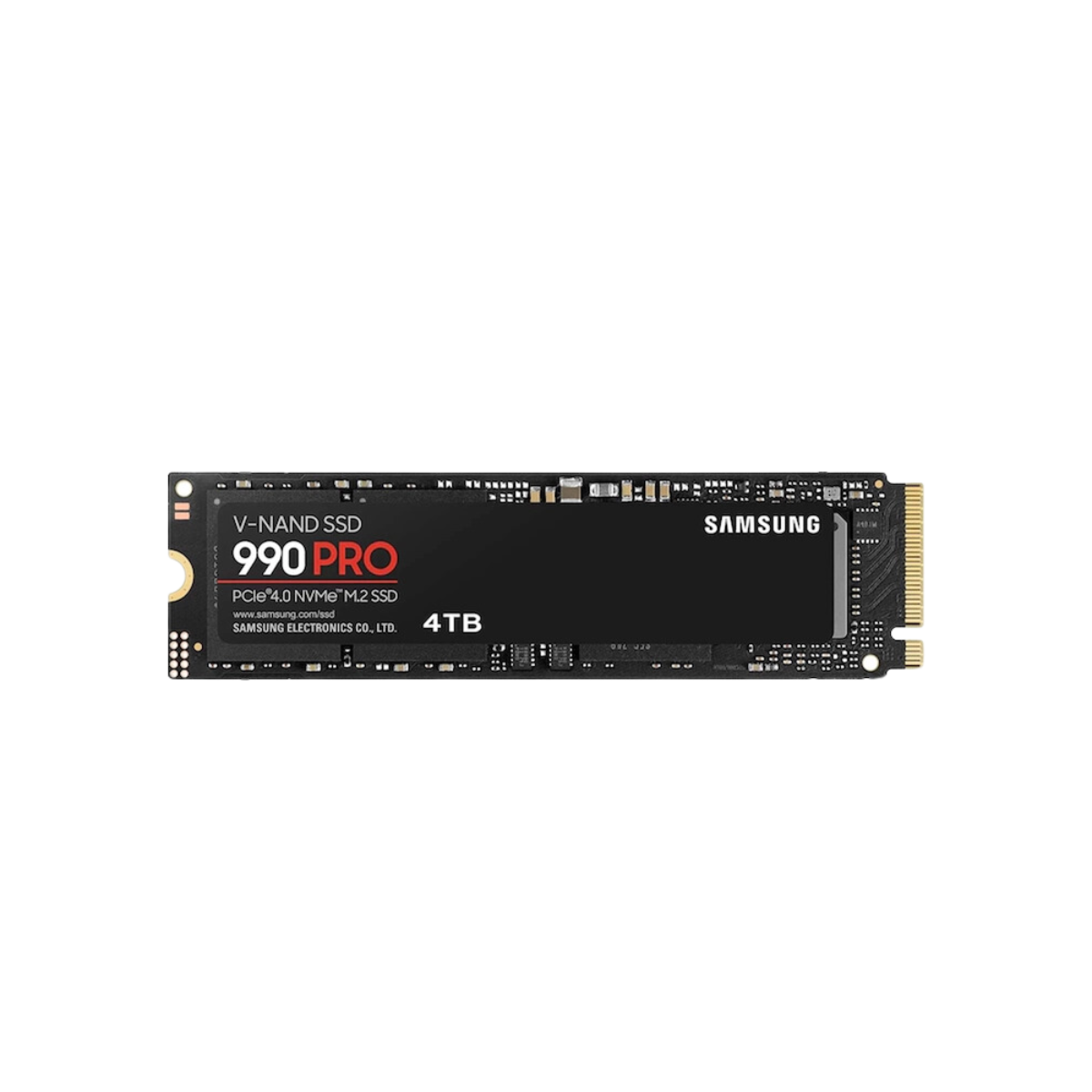

SAMSUNG 4TB M.2 PCIE NVME SSD 990 PRO (MZV9P4T0BW)

Specifications:

• Application: Client PCs, Game Consoles

• Capacity: 4,000GB (1GB = 1 billion bytes by IDEMA; actual usable capacity may be less due to formatting, partitioning, and system use)

• Interface: PCIe Gen 4.0 x4, NVMe 2.0

• Form Factor: M.2 (2280)

• Dimensions (WxHxD): 3.15 x 0.87 x 0.091 inches (80 x 22 x 2.3 mm)

• Weight: Max 0.02 lbs (0.02 lbs = 9.0 g)

• Storage Memory: Samsung V-NAND TLC

• Controller: Samsung in-house Controller

• Cache Memory: Samsung 4GB Low Power DDR4 SDRAM

Performance:

• Sequential Read Speed: Up to 7,450 MB/s (performance may vary based on system hardware & configuration)

• Sequential Write Speed: Up to 6,900 MB/s (performance may vary based on system hardware & configuration)

• Random Read (4KB, QD32): Up to 1,600,000 IOPS (performance may vary based on system hardware & configuration)

• Random Write (4KB, QD32): Up to 1,550,000 IOPS (performance may vary based on system hardware & configuration)

• Random Read (4KB, QD1): Up to 22,000 IOPS (performance may vary based on system hardware & configuration)

• Random Write (4KB, QD1): Up to 80,000 IOPS (performance may vary based on system hardware & configuration)

Environmental Specs:

• Operating Temperature: 32F - 158F (0 - 70C)

• Shock Resistance: 1,500 G & 0.5 ms (Half sine)

Power Consumption:

• Average Power Consumption: Average: 6.5 W, Maximum: 8.6 W (Burst mode) (actual power consumption may vary based on system hardware & configuration)

• Power Consumption (Idle): Max. 55 mW (actual power consumption may vary based on system hardware & configuration)

• Allowable Voltage: 3.3 V ± 5%

Reliability:

• MTBF: 1.5 million hours

Special Features:

• TRIM Support: Supported

• S.M.A.R.T Support: Supported

• Garbage Collection (GC): Auto Garbage Collection Algorithm

• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)

• WWN Support: Not supported

• Device Sleep Mode Support: Yes

Accessories:

• Installation Kit: Not Available

Software:

• Management Software: Magician Software for SSD management

Warranty:

• Product Warranty: Five (5) year limited warranty or 2,400 TBW limited warranty
