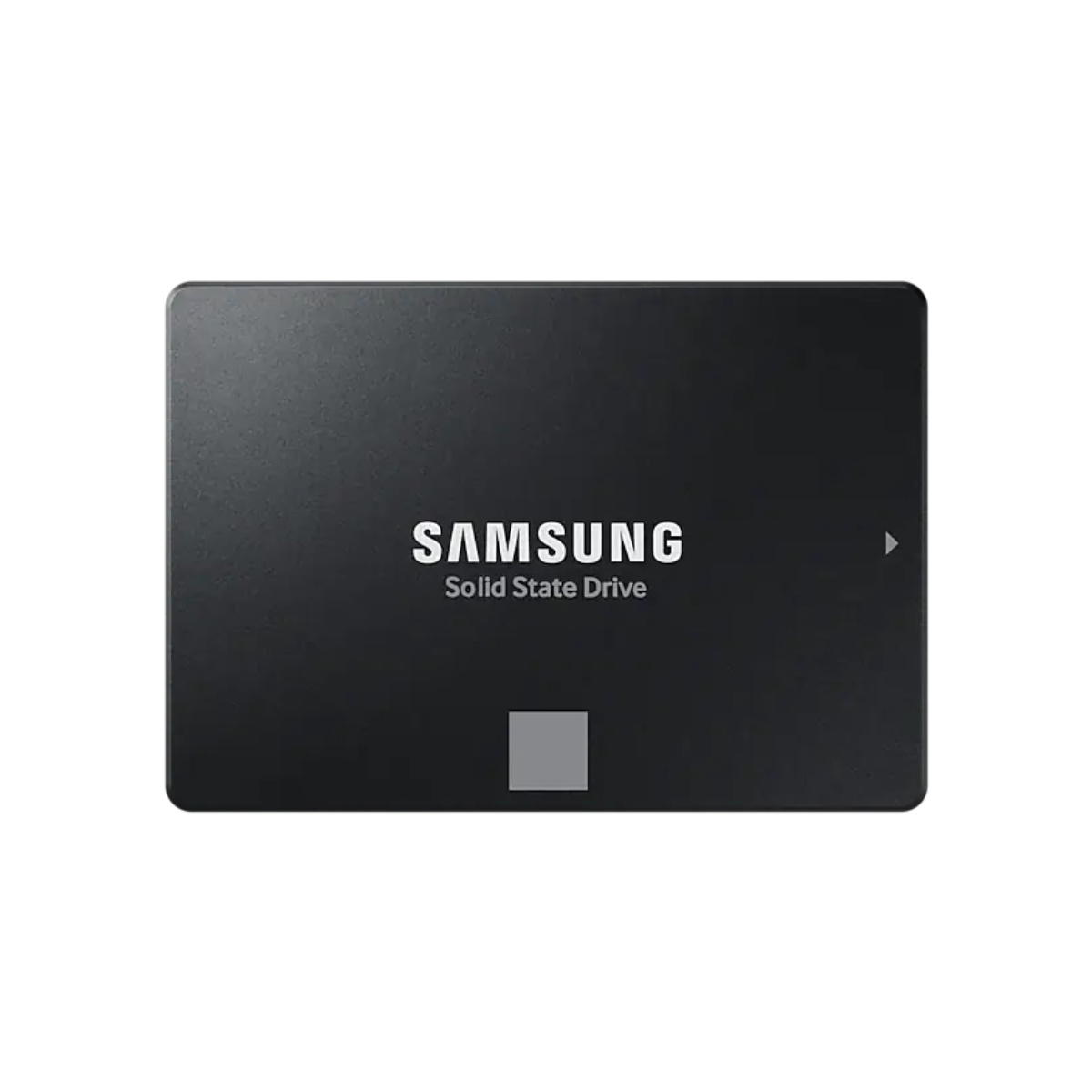

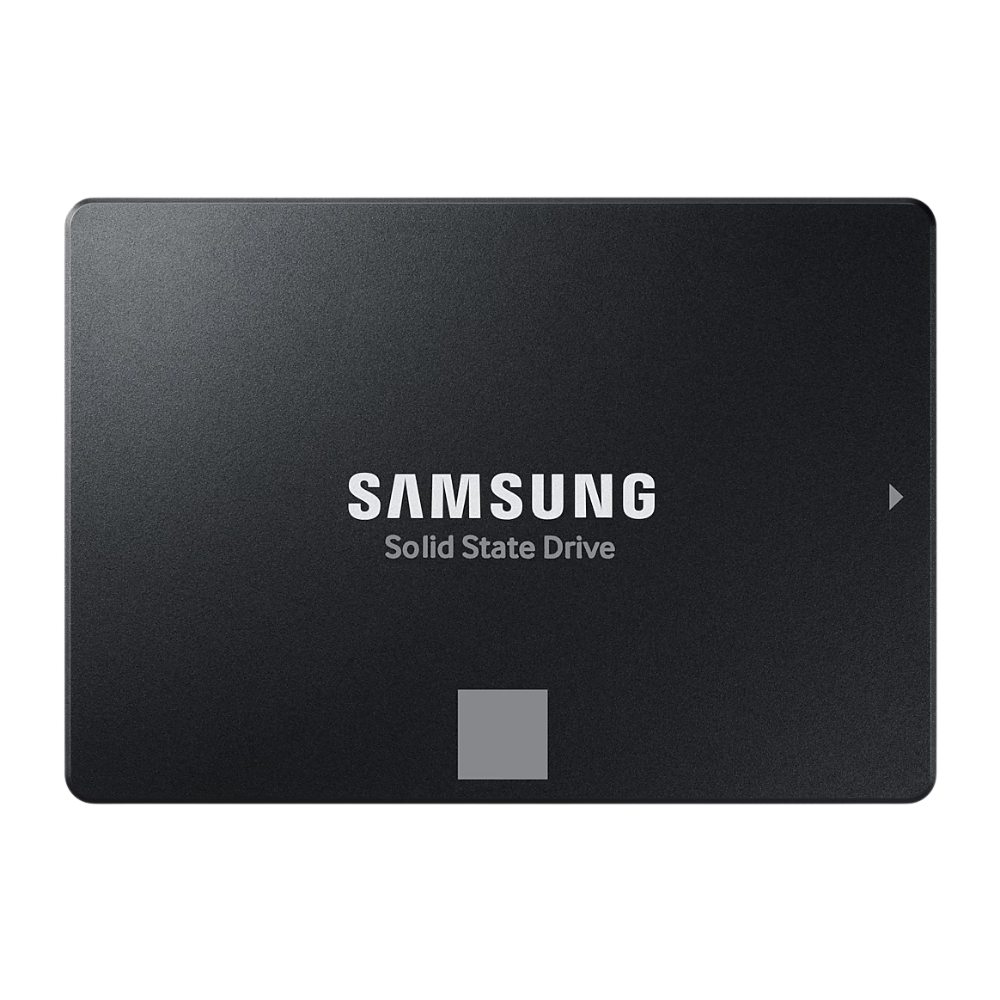

SAMSUNG 500GB 2.5" SATA SSD 870 EVO (MZ77E500BW)

Specifications:

• Rated Capacity:

  • 500 GB (1 GB = 1 Billion bytes by IDEMA; actual usable capacity may be less due to formatting, partitioning, and other factors)

• Form Factor:

  • 2.5 inch

• Interface:

  • SATA 6 Gb/s (compatible with SATA 3 Gb/s & SATA 1.5 Gb/s)

• Dimensions (Pack: WxHxD):

  • 100 x 69.85 x 6.8 mm

• Weight:

  • Approx. 45.0 g

• Storage Memory:

  • Samsung V-NAND 3bit MLC

• Controller:

  • Samsung MKX Controller

• Cache Memory:

  • Samsung 512 MB Low Power DDR4 SDRAM

• Special Features:

  • TRIM Support

  • S.M.A.R.T Support

  • Auto Garbage Collection Algorithm

  • AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

  • World Wide Name (WWN) support

  • Device Sleep Mode Support

• Performance:

  • Sequential Read: Up to 560 MB/s (Performance may vary based on system hardware & configuration)

  • Sequential Write: Up to 530 MB/s (Measured with Intelligent TurboWrite technology activated; Performance may vary)

  • Random Read (4KB, QD32): Up to 98,000 IOPS (Measured with Intelligent TurboWrite technology activated; Performance may vary)

  • Random Write (4KB, QD32): Up to 88,000 IOPS (Measured with Intelligent TurboWrite technology activated; Performance may vary)

  • Random Read (4KB, QD1): Up to 13,000 IOPS (Measured with Intelligent TurboWrite technology activated; Performance may vary)

  • Random Write (4KB, QD1): Up to 36,000 IOPS (Measured with Intelligent TurboWrite technology activated; Performance may vary)

• Environment:

  • Average Power Consumption: 2.2 W (maximum 3.5 W in burst mode; actual power consumption may vary)

  • Power Consumption (Idle): Max. 30 mW (actual power consumption may vary)

  • Allowable Voltage: 5V ± 5%

  • Operating Temperature: 0 - 70 €žÆ'

  • Shock Resistance: 1,500 G & 0.5 ms (Half sine)

• Accessories:

  • Installation Kit: Not Available

• Software:

  • Magician Software for SSD management

  • Data Migration Software for SSD upgrade

• Warranty:

  • 5 Years Limited Warranty or 300 TBW Limited Warranty
