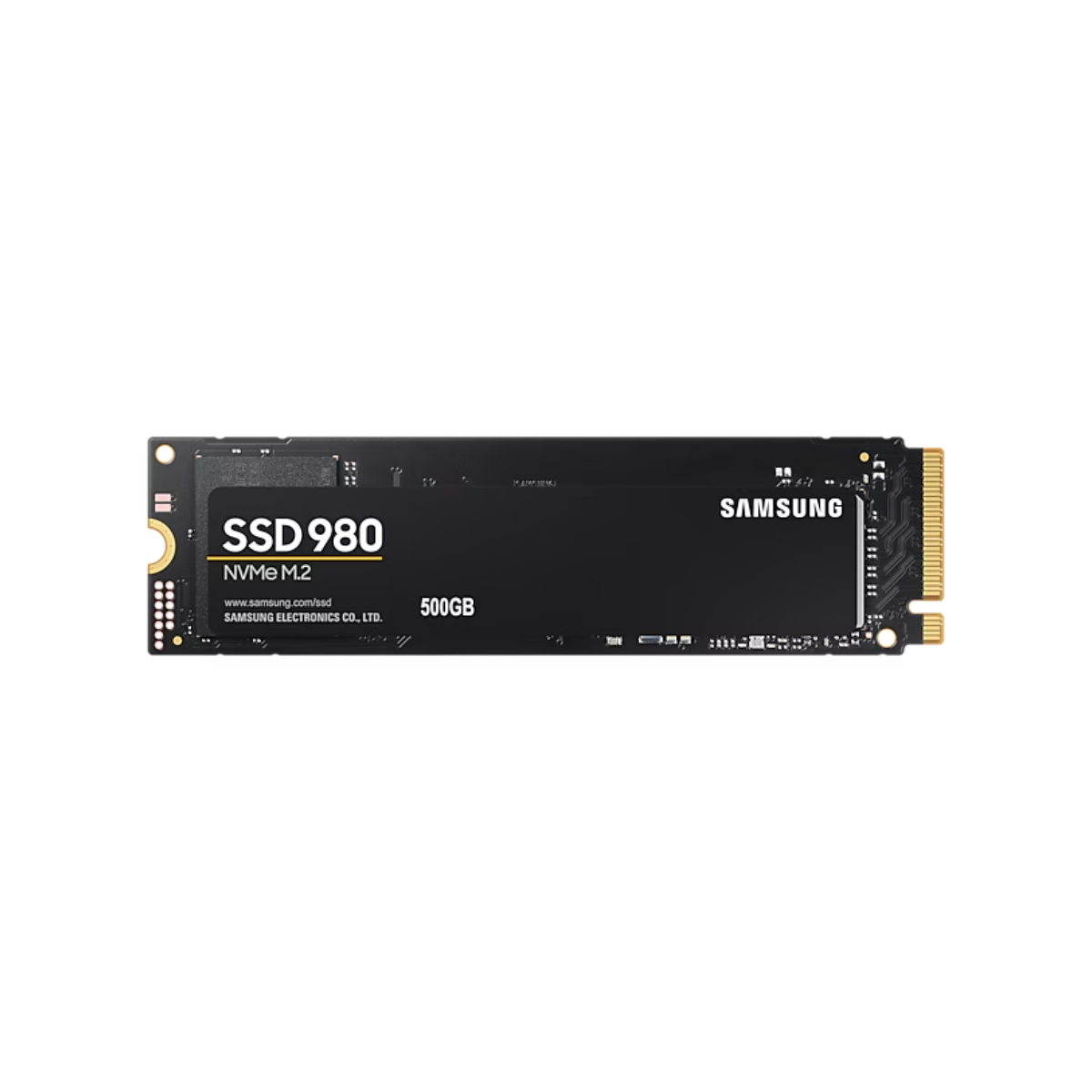

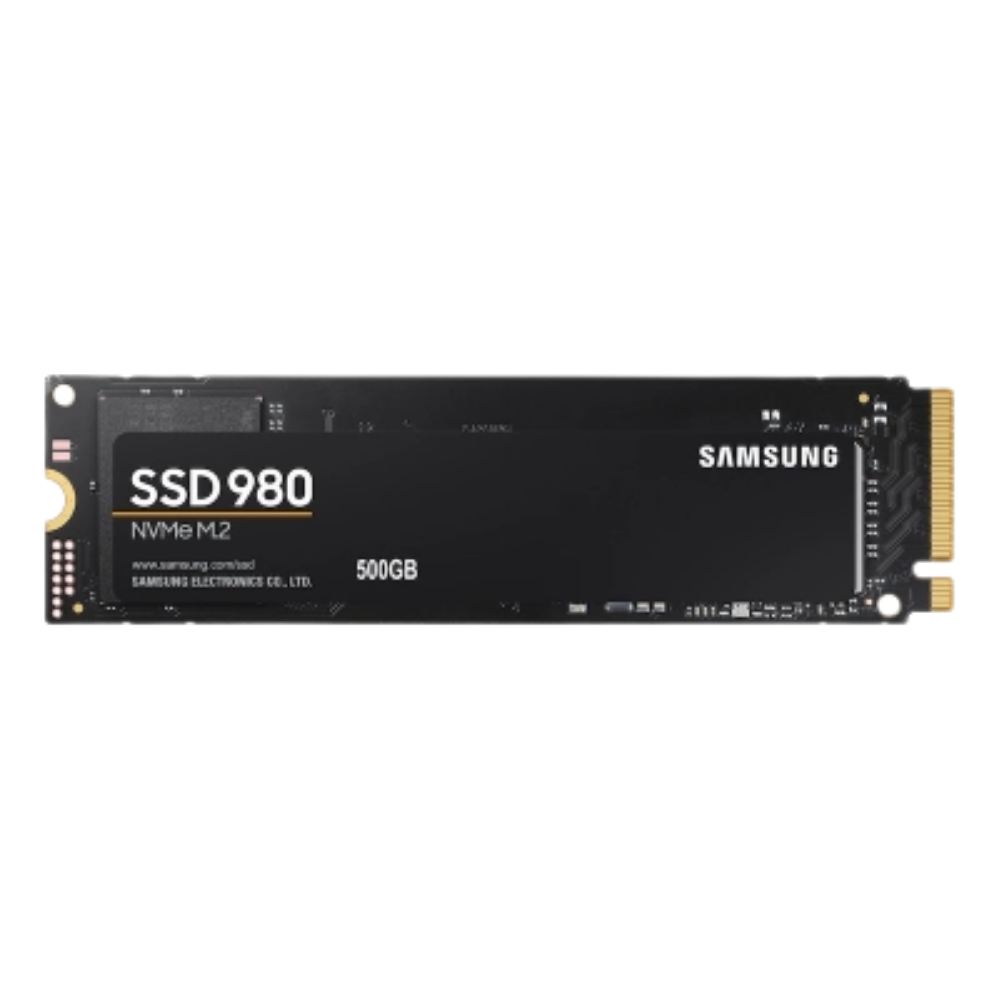

SAMSUNG 500GB M.2 PCIE SSD 980 (MZV8V500BW)

Specifications:

• Application: Client PCs

• Rated Capacity: 500GB (1GB = 1 billion bytes by IDEMA; actual usable capacity may be less due to formatting, partitioning, and system use)

• Form Factor: M.2 (2280)

• Interface: PCIe Gen 3.0 x4, NVMe 1.4

• Dimensions (WxHxD): 80.15 x 22.15 x 2.38 mm

• Weight: Max 8.0 g

• Storage Memory: Samsung V-NAND 3-bit MLC

• Controller: Samsung Pablo Controller

• Cache Memory: HMB (Host Memory Buffer)

Performance:

• Sequential Read Speed: Up to 3,100 MB/s (performance may vary based on system hardware & configuration)

• Sequential Write Speed: Up to 2,600 MB/s (performance may vary based on system hardware & configuration)

• Random Read (4KB, QD32): Up to 400,000 IOPS (performance may vary based on system hardware & configuration)

• Random Write (4KB, QD32): Up to 470,000 IOPS (performance may vary based on system hardware & configuration)

• Random Read (4KB, QD1): Up to 17,000 IOPS (performance may vary based on system hardware & configuration)

• Random Write (4KB, QD1): Up to 54,000 IOPS (performance may vary based on system hardware & configuration)

Environmental Specs:

• Operating Temperature: 0 - 70C

• Shock Resistance: 1,500 G & 0.5 ms (Half sine)

Power Consumption:

• Average Power Consumption: Average: 4.3 W, Maximum: 5.9 W (Burst mode) (actual power consumption may vary based on system hardware & configuration)

• Power Consumption (Idle): Max. 45 mW (actual power consumption may vary based on system hardware & configuration)

• Allowable Voltage: 3.3 V ± 5%

Reliability:

• MTBF: 1.5 million hours

Special Features:

• TRIM Support: Supported

• S.M.A.R.T Support: Supported

• Garbage Collection (GC): Auto Garbage Collection Algorithm

• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)

• WWN Support: Not supported

• Device Sleep Mode Support: Yes

Accessories:

• Installation Kit: Not Available

Software:

• Management Software: Magician Software for SSD management

Warranty:

• Product Warranty: Five (5) year limited warranty or 300 TBW limited warranty
