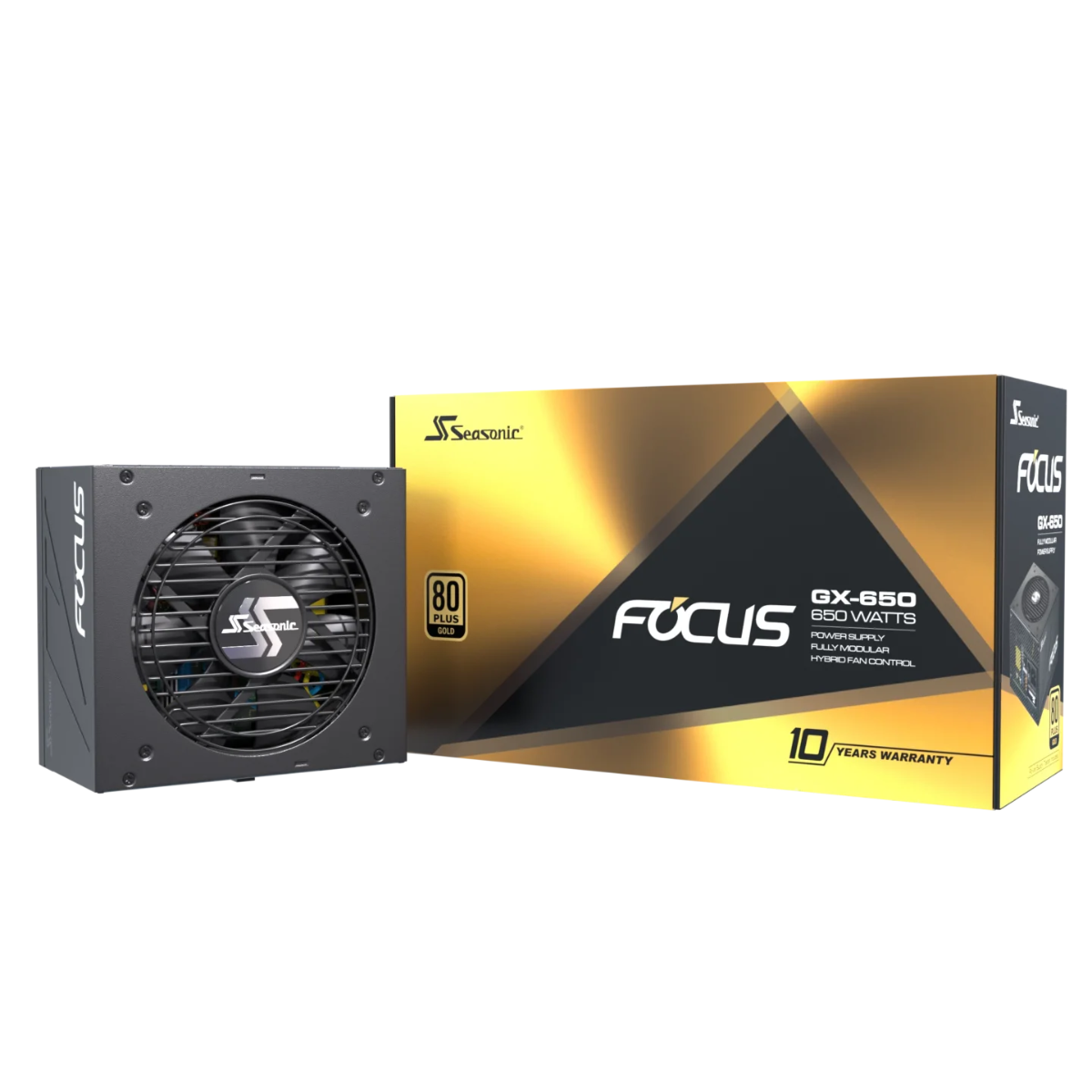

SEASONIC FOCUS GX-650 650W 1X120MM FAN, MODULAR, 80PLUS GOLD

Power Supply Specifications

Efficiency & Certification

• 80 PLUS Certification: Gold
• Cybenetics Efficiency Level: TBA
• Cybenetics Noise Level: TBA

Form Factor & Dimensions

• Form Factor: ATX/EPS
• Dimensions: 140 150 86 mm

Cooling & Fan

• Fan Size: 120 mm
• Fan Control: S3FC (includes Fanless Mode)
• Fan Bearing Type: Fluid Dynamic Bearing
• Fan Life Expectancy: 50,000 hours at 40 C, 15% - 65% RH

Cable Information

• Modularity: Fully Modular

Electrical Features

• Operating Temperature: 0 - 50 C (derating from 100% to 80% from 40 C to 50 C linearly)
• MTBF (Mean Time Between Failures) @ 25 C (excl. fan): 100,000 hours
• AC Input: Full Range (100 V - 240 V, 9 - 4.5 A, 50 Hz - 60 Hz)

Protection Features

• Protection Types: OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection)

Safety & Environmental Compliance

• Safety Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance:
  • Energy Star
  • RoHS
  • WEEE
  • ErP Lot 6
  • REACH

Warranty

• Warranty Period: 10 Years

---

Power Output Specifications

Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
Maximum Power	100 W	100 W	648 W	3.6 W	15 W
Max Current	20 A	20 A	54 A	0.3 A	3 A

• Total Continuous Power: 650 W
