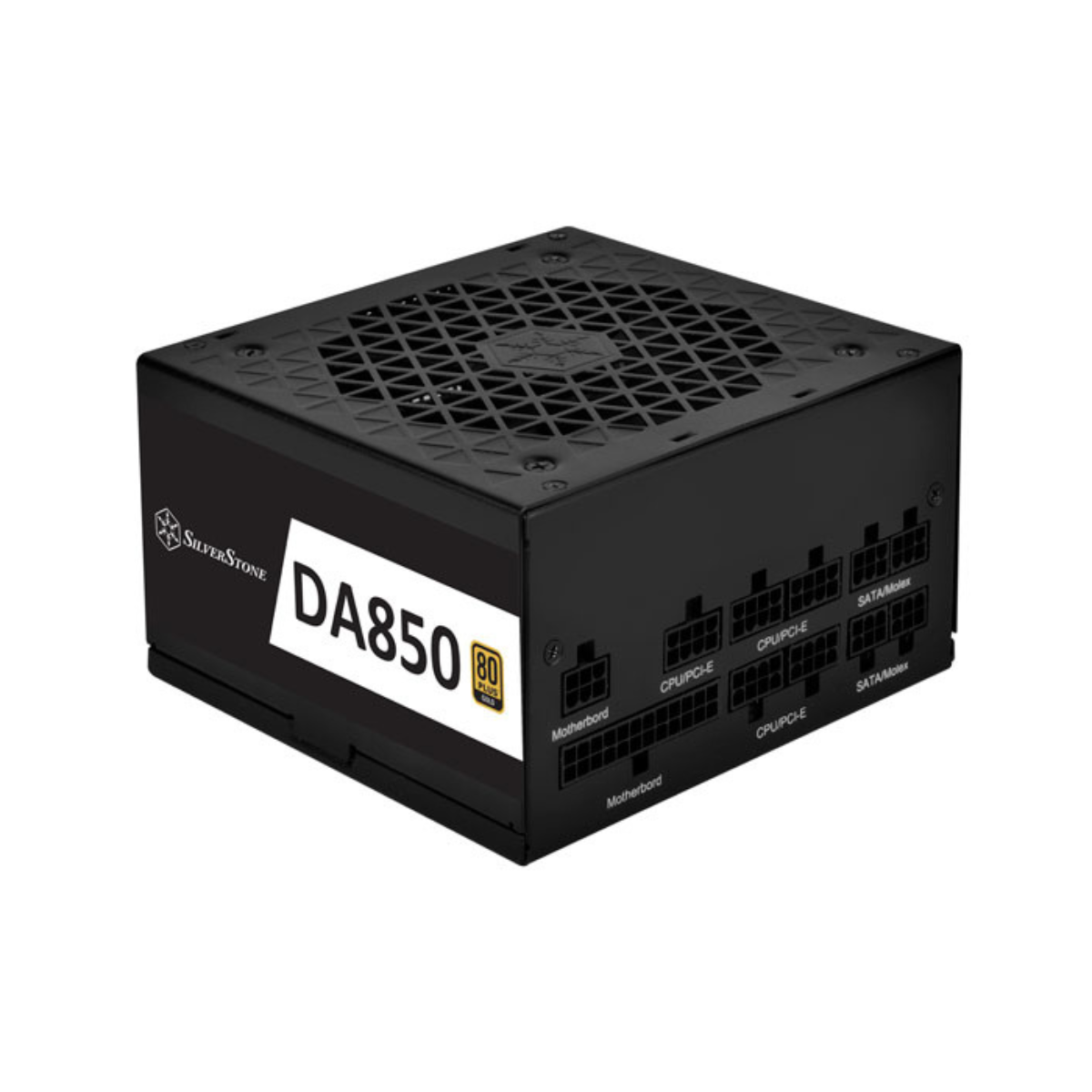

SILVERSTONE DA850G DECATHLON 850W PSU

Specifications:

• Model (Safety Certification): SST-AX0850MCGD-A

• Color: Black (lead-free paint)

• Max. DC Output: 850W

• Power Density: 471W per liter

• Load Range:

  • +3.3V Max. (Amps): 20A

  • +5V Max. (Amps): 20A

  • +12V Max. (Amps): 70.5A

  • +5VSB Max. (Amps): 2.5A

  • -12V Max. (Amps): 0.3A

  • +3.3V Peak (Amps): /

  • +5V Peak (Amps): /

  • +12V Peak (Amps): /

  • +5VSB Peak (Amps): /

  • -12V Peak (Amps): 3.0A

  • +3.3V Min. (Amps): 0A

  • +5V Min. (Amps): 0A

  • +12V Min. (Amps): 0A

  • +5VSB Min. (Amps): 0A

  • -12V Min. (Amps): 0A

  • Voltage Range (%): ±3% (+3.3V, +5V, +12V, +5VSB), ±10% (-12V)

  • Line Regulation (%): ±1%

  • Ripple (mVp-p): 30mV (+3.3V, +5V, +5VSB), 40mV (+12V, -12V)

  • Combined +3.3V & +5V: 110W

  • Combined +12V: 846W

• Input Voltage: 90 ~ 264 Vrms

• Input Frequency Range: 47Hz ~ 63Hz

• PFC: Active PFC (PF > 0.9 at full load)

• Efficiency: 87% ~ 90% (at 20% ~ 100% loading)

• MTBF: 100,000 hours

• Operating Temperature: 0 ~ 40C

• Protection:

  • Over Current Protection

  • Over Power Protection

  • Over Voltage Protection

  • Short Circuit Protection

  • Over Temperature Protection

• Connectors:

  • 1 x 24 / 20-Pin Motherboard Connector (600mm)

  • 2 x 8 / 4-Pin EPS / ATX 12V Connectors (750mm each)

  • 2 x 8 / 6-Pin PCIe Connectors (650mm / 150mm each)

  • 8 x SATA Connectors (600mm / 150mm / 150mm / 150mm each)

  • 6 x 4-Pin Peripheral Connectors + 2 x 4-Pin Floppy Adapter Connectors (600mm / 150mm / 150mm / 150mm each)

• Cooling System: Silent 120mm FDB Fan

• Noise Level: 18 dBA minimum

• Certification: 80 PLUS Gold

• Form Factor: ATX (PS2)

• Dimensions (W x H x D): 150 mm x 86 mm x 140 mm

• Weight: 1.46 kg

• Other: GPU Support list
