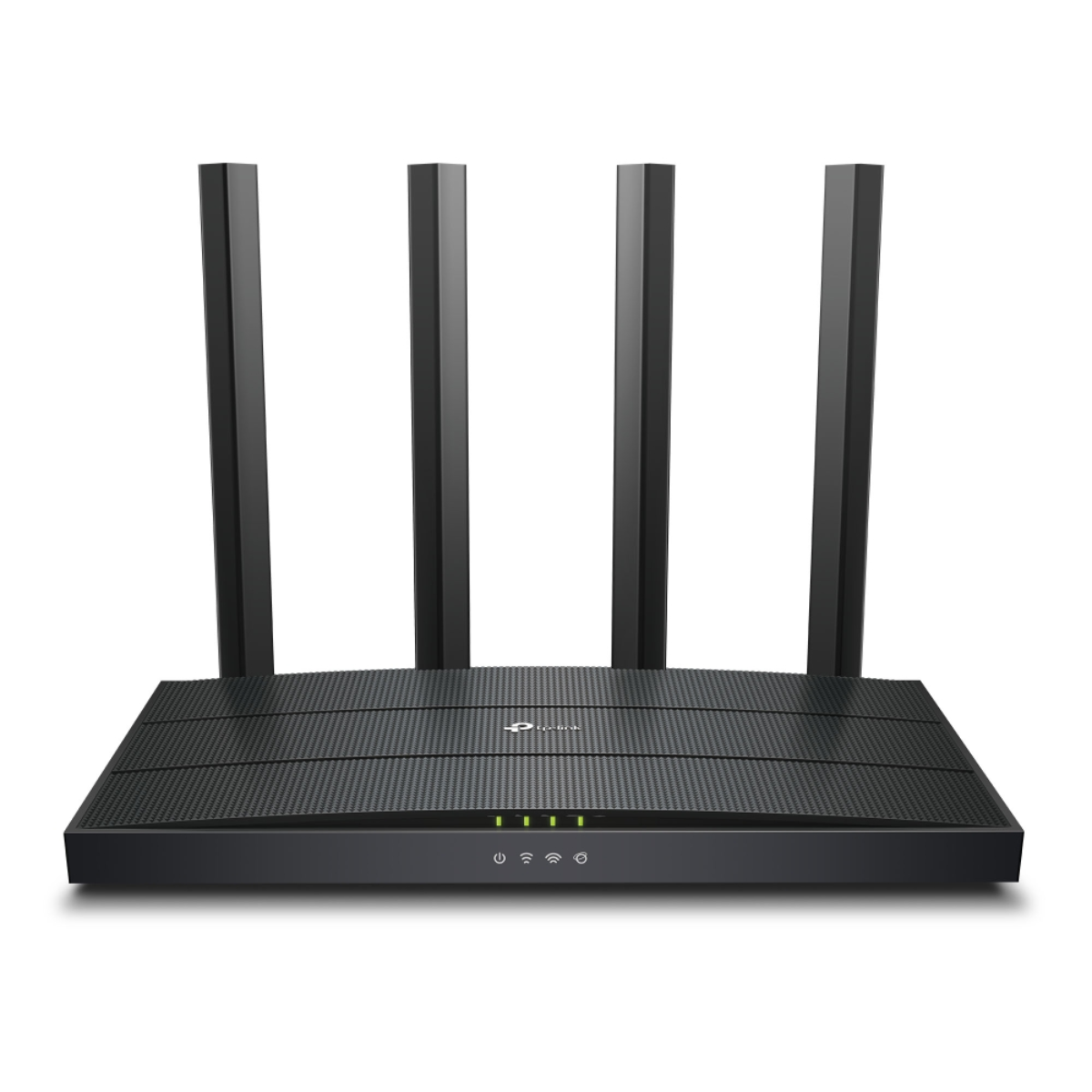

TPLINK ARCHER AX12 AX1500 NEXT-GEN WIFI-6 DUAL BAND GIGABIT ROUTER

Specifications:

• WIRELESS

  • Standards: Wi-Fi 6

    • IEEE 802.11ax/ac/n/a (5 GHz)

    • IEEE 802.11n/b/g (2.4 GHz)

  • WiFi Speeds: AX1500

    • 5 GHz: 1201 Mbps (802.11ax)

    • 2.4 GHz: 300 Mbps (802.11n)

  • WiFi Range: 2-3 Bedroom Houses

  • Antennas: 4 Fixed High-Performance Antennas

  • Beamforming: Concentrates wireless signal strength towards clients

  • WiFi Capacity: High

  • Dual-Band: Allocates devices to different bands

  • OFDMA: Communicates with multiple Wi-Fi 6 clients simultaneously

  • Airtime Fairness: Limits excessive occupation

  • 4 Streams: Connects more devices to bandwidth

• WORKING MODES

  • Router Mode

  • Access Point Mode

• SECURITY

  • Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

  • Guest Network: 1 5 GHz Guest Network, 1 2.4 GHz Guest Network

  • VPN Server: OpenVPN, PPTP

  • WiFi Encryption: WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise

• HARDWARE

  • Ethernet Ports: 1 Gigabit WAN Port, 3 Gigabit LAN Ports

  • Buttons: WPS/Reset Button

  • Power: 12 V ½" 1 A

• SOFTWARE

  • Protocols: IPv4, IPv6

  • Parental Controls: URL Filtering, Time Controls

  • WAN Types: Dynamic IP, Static IP, PPPoE/PPTP (Dual Access), L2TP (Dual Access)

  • Quality of Service: QoS by Device

  • Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID

  • DDNS: TP-Link, NO-IP, DynDNS

  • NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP

  • IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

  • DHCP: Address Reservation, DHCP Client List, Server

  • Management: Tether App, Webpage

• OTHER

  • System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista€žÂ¢/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+; Cable or DSL Modem; Subscription with an internet service provider

  • Certifications: FCC, CE, RoHS

  • Environment: Operating Temperature: 0€žÆ'~40€žÆ' (32€ž" ~104€ž"; Storage Temperature: -40€žÆ'~60€žÆ' (-40€ž" ~140€ž"; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

• TEST DATA

  • WiFi Transmission Power:

    • CE: <20dBm (2.4 GHz), <23dBm (5.15 GHz~5.25 GHz)

    • FCC: <30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)

  • WiFi Reception Sensitivity:

    • 5 GHz:

      • 11a 6Mbps: -95dBm, 11a 54Mbps: -79dBm

      • 11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS8: -66dBm

      • 11ac VHT40_MCS0: -94dBm, 11ac VHT40_MCS9: -63dBm

      • 11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS9: -60dBm

      • 11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11: -66dBm

      • 11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11: -65dBm

      • 11ax HE80_MCS0: -89dBm, 11ax HE80_MCS11: -62dBm

    • 2.4 GHz:

      • 11g 6Mbps: -96dBm, 54Mbps: -80dBm

      • HT20-MCS0: -97dBm, MCS7: -78dBm

      • HT40-MCS0: -94dBm, MCS7: -75dBm

• PHYSICAL

  • Dimensions (WDH): 8.5 4.6 1.3 in (215 117 32 mm)

  • Package Contents: Wireless Router Archer AX12, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
