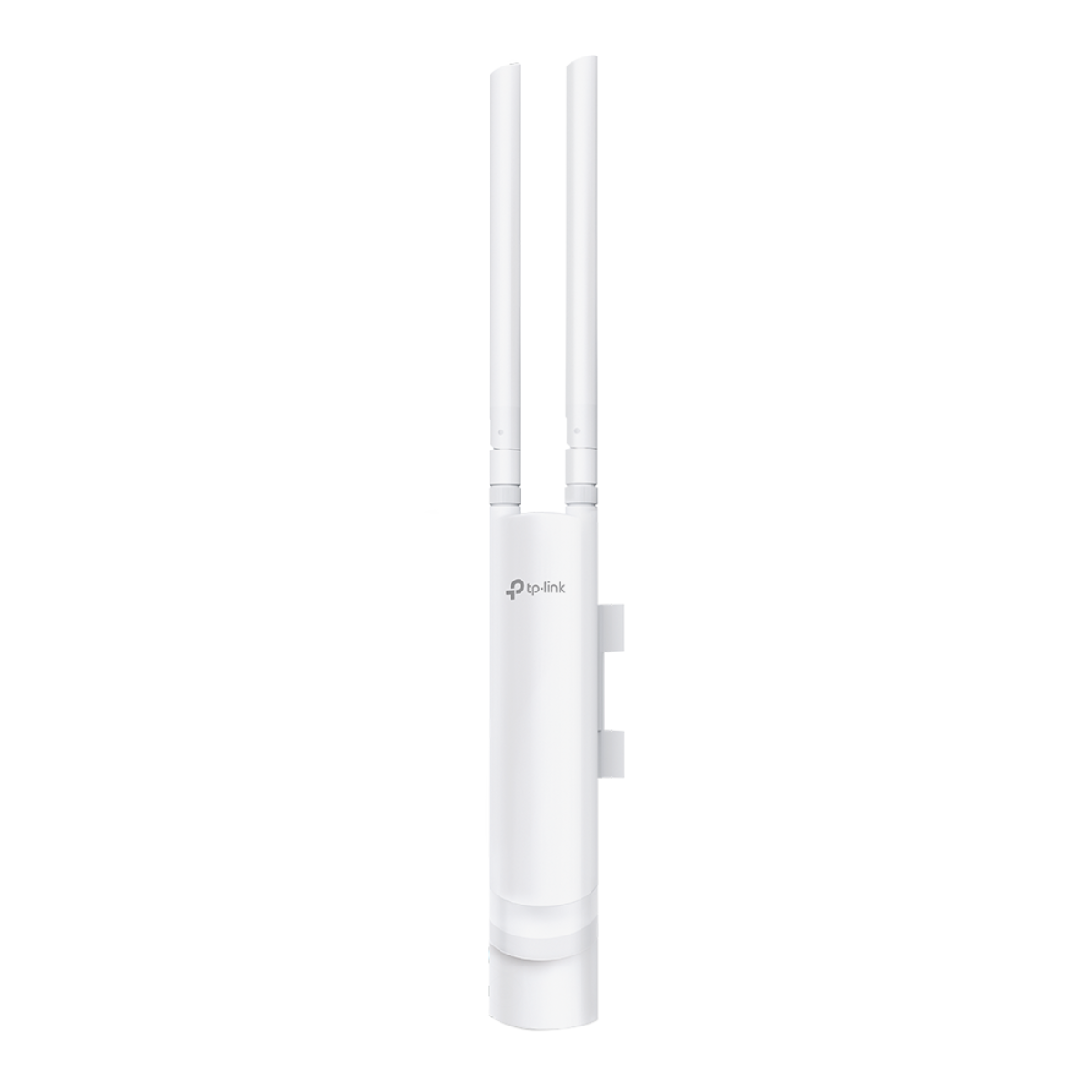

TPLINK EAP110-OUTDOOR 300MBPS WIRELESS N ACCESS POINT

Specifications:

• Hardware Features:

  • Interface: 1 Fast Ethernet (RJ-45) Port (Supports Passive PoE)

  • Button: Reset

  • Power Supply: 24V Passive PoE (+4,5 pins; -7,8 pins; PoE Adapter Included)

  • Power Consumption: 3.1 W

  • Dimensions (W x D x H): 8.2 3.7 1.7 in. (209 95 42.6 mm)

  • Antenna Type: 2 3dBi External Omni Waterproof

  • Weatherproof Enclosure: IP65

  • Mounting: Pole or wall mounting (mounting kit included)

• Wireless Features:

  • Wireless Client Capacity: 100+**

  • Concurrent Clients: 100+**

  • Wireless Standards: IEEE 802.11n/g/b

  • Frequency: 2.4 GHz

  • Signal Rate:

    • 11n: Up to 300 Mbps*

    • 11g: Up to 54 Mbps*

    • 11b: Up to 11 Mbps*

  • Transmit Power: < 27 dBm

  • Wireless Functions:

    • Multiple SSIDs (Up to 8 SSIDs)

    • Enable/Disable Wireless Radio

    • Automatic Channel Assignment

    • Transmit Power Control (adjustable on 1 dBm step)

    • QoS (WMM)

    • Load Balance

    • Rate Limit

    • Reboot Schedule

    • Wireless Schedule

    • Wireless Statistics based on SSID, AP, and Client

  • Wireless Security:

    • Captive Portal Authentication

    • Access Control

    • Wireless Mac Address Filtering

    • Wireless Isolation Between Clients

    • SSID to VLAN Mapping

    • Rogue AP Detection

    • 802.1X Support

    • 64/128/152-bit WEP / WPA / WPA2-Enterprise

    • WPA-PSK / WPA2-PSK

• Management:

  • Omada App: Yes

  • Centralized Management:

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access: Yes (Requires OC300, OC200, or Omada Software Controller)

  • Email Alerts: Yes

  • LED ON/OFF Control: Yes

  • Management MAC Access Control: Yes

  • SNMP: v1, v2c

  • System Logging Local/Remote Syslog: Local and Remote Syslog

  • SSH: Yes

  • Web-based Management: HTTP/HTTPS

  • L3 Management: Yes

  • Multi-site Management: Yes

  • Management VLAN: Yes

• Others:

  • Certification: FCC, RoHS

  • Package Contents:

    • 300Mbps Wireless N Outdoor Access Point (EAP110-Outdoor)

    • Passive PoE Adapter

    • Power Cord

    • Mounting Kit

    • Waterproof Rubber Insert

    • Waterproof Antennas

    • Installation Guide

  • Environment:

    • Operating Temperature: -30€žÆ'~65€žÆ' (-22€ž"149€ž"

    • Storage Temperature: -40€žÆ'~70€žÆ' (-40€ž"158€ž"

    • Operating Humidity: 10%~90% non-condensing

    • Storage Humidity: 5%~90% non-condensing
