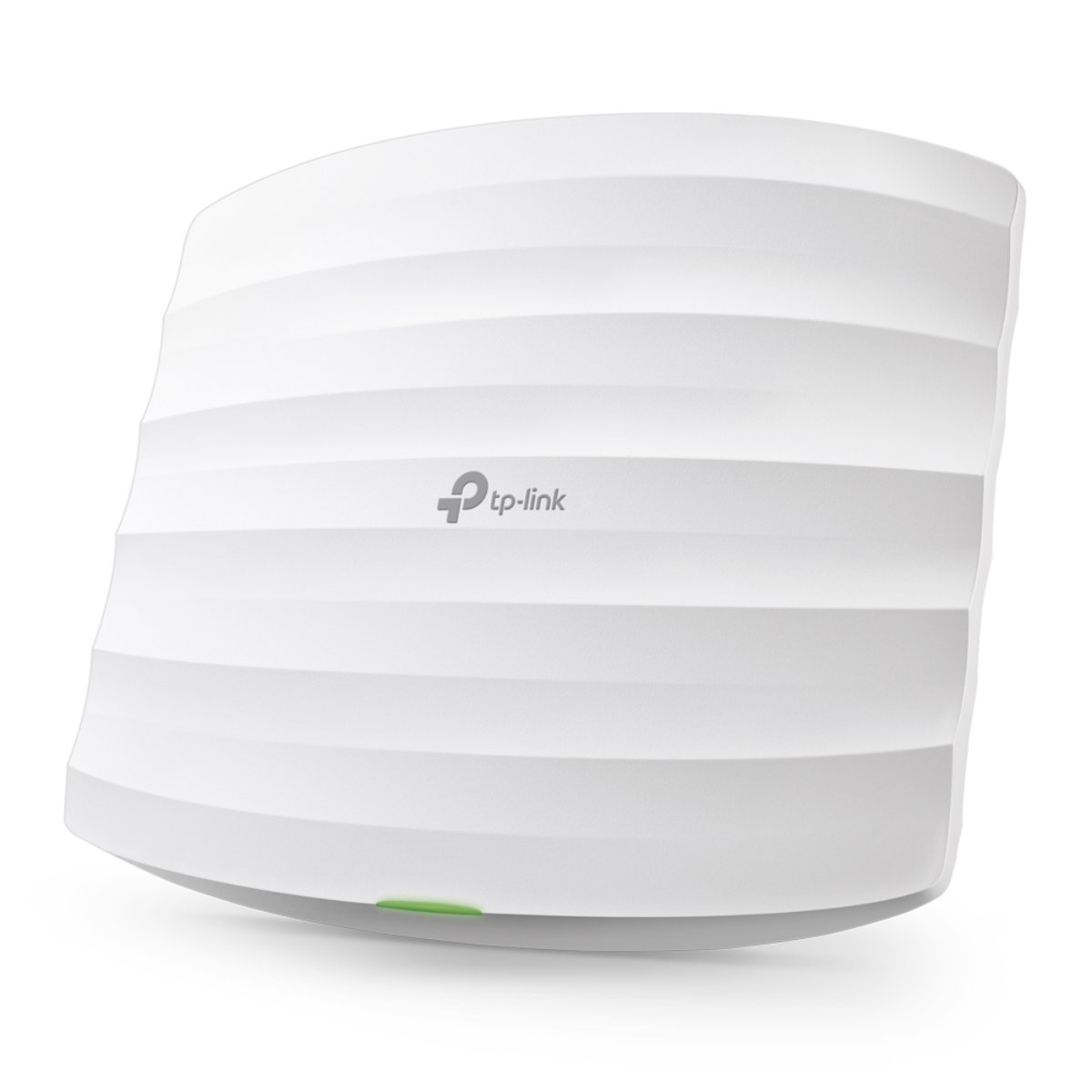

TPLINK EAP115 300MBPS WIRELESS N CEILING MOUNT ACCESS POINT

Specifications:

• Hardware Features:

  • Interface: 1 Fast Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE)

  • Button: Reset

  • Power Supply: 802.3af PoE or external 9VDC/0.6A power supply

  • Power Consumption: 2.8 W

  • Dimensions (W x D x H): 7.5 6.7 1.2 in (189.5 170.5 29.7 mm)

  • Antenna Type: Internal 2 4 dBi Omni

  • Mounting: Ceiling/Wall Mounting (Kits included)

• Wireless Features:

  • Wireless Client Capacity: 100+**

  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

  • Frequency: 2.4‚¬"2.4835 GHz

  • Signal Rate:

    • 11n: Up to 300 Mbps (dynamic)

    • 11g: Up to 54 Mbps (dynamic)

    • 11b: Up to 11 Mbps (dynamic)

  • Reception Sensitivity:

    • 300M: -71dBm@10% PER

    • 150M: -75dBm@10% PER

    • 54M: -78dBm@10% PER

    • 11M: -93dBm@8% PER

    • 6M: -92dBm@10% PER

    • 1M: -96dBm@8% PER

  • Wireless Functions:

    • Multiple SSIDs (Up to 8 SSIDs)

    • Enable/Disable Wireless Radio

    • Automatic Channel Assignment

    • Transmit Power Control (Adjustable on dBm)

    • QoS (WMM)

    • Rate Limit

    • Reboot Schedule

    • Wireless Schedule

    • Wireless Statistics based on SSID/AP/Client

  • Wireless Security:

    • Captive Portal Authentication

    • Access Control

    • Wireless MAC Address Filtering

    • Wireless Isolation Between Clients

    • SSID to VLAN Mapping

    • Rogue AP Detection

    • 802.1X Support

    • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

  • Transmission Power:

    • CE: €°Â¤19 dBm (EIRP)

    • FCC: €°Â¤21 dBm

• Management:

  • Omada App: Yes

  • Centralized Management:

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)

  • Email Alerts: Yes

  • LED ON/OFF Control: Yes

  • Management MAC Access Control: Yes

  • SNMP: v1, v2c

  • System Logging Local/Remote Syslog: Local and Remote Syslog

  • SSH: Yes

  • Web-based Management: HTTP/HTTPS

  • L3 Management: Yes

  • Multi-site Management: Yes

  • Management VLAN: Yes

• Others:

  • Certification: CE, FCC, RoHS

  • Package Contents:

    • 300 Mbps Wireless N Ceiling Mount Access Point EAP115

    • Power Adapter

    • Mounting Kits

    • Installation Guide

  • System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux

  • Environment:

    • Operating Temperature: 0‚¬"40C (32‚¬"104F)

    • Storage Temperature: -40‚¬"70C (-40‚¬"158F)

    • Operating Humidity: 10‚¬"90% RH non-condensing

    • Storage Humidity: 5‚¬"90% RH non-condensing
