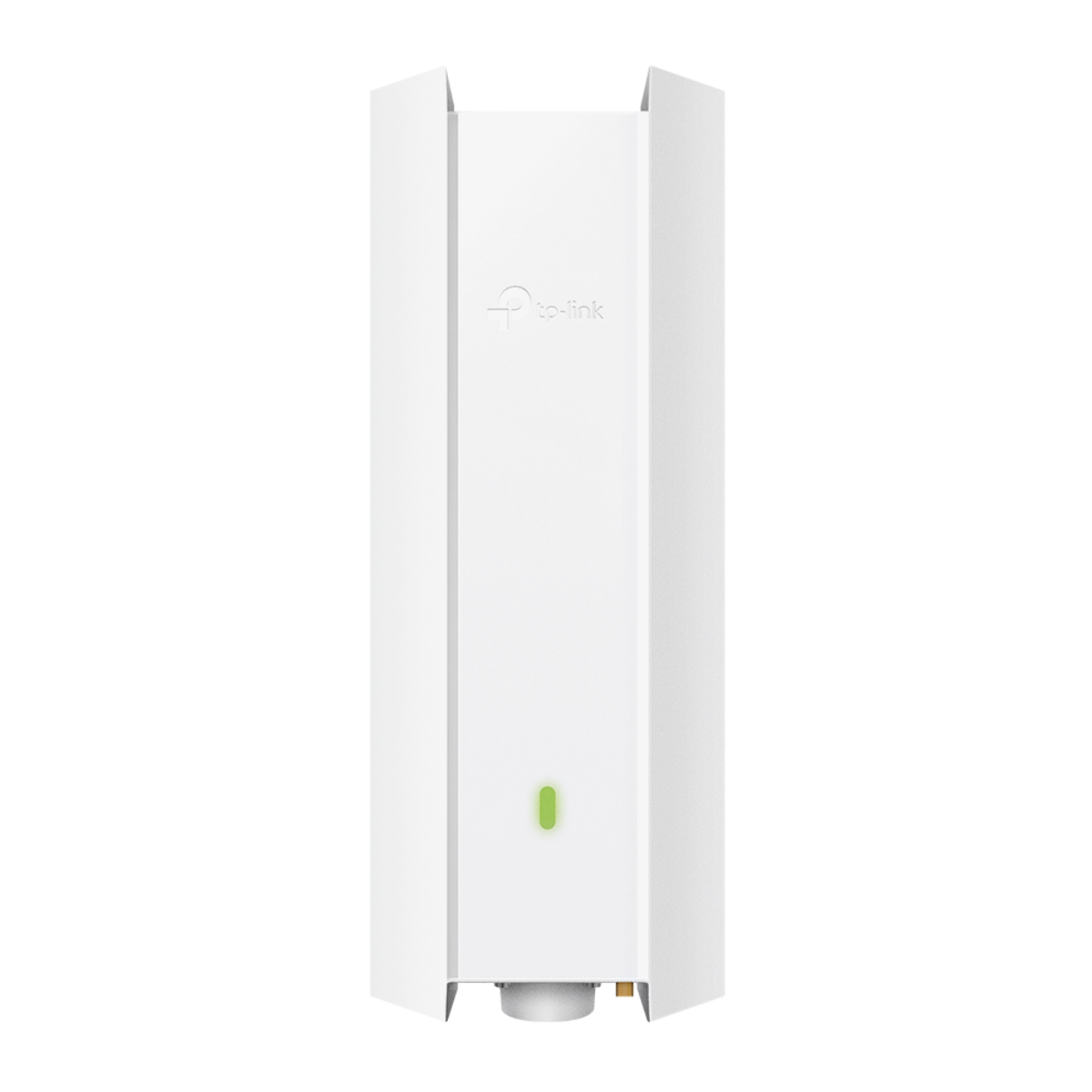

TPLINK EAP610-OUTDOOR AX1800 INDOOR/OUTDOOR WIFI 6 ACCESS POINT

Specifications:

• Hardware Features:

  • Interface:

    • 1 Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)

  • Button:

    • Reset

  • Power Supply:

    • 802.3at PoE

    • 48V/0.5A Passive PoE (PoE Adapter Included)

  • Power Consumption:

    • EU: 12.5W (802.3at PoE or Passive PoE)

    • US: 14.7W (802.3at PoE or Passive PoE)

  • Dimensions (W x D x H):

    • 280.4 106.5 56.8 mm (without antenna & mounting kit)

  • Antenna:

    • 2.4 GHz: 2 4 dBi

    • 5 GHz: 2 5 dBi

  • Weatherproof Enclosure:

    • IP67

  • Mounting:

    • Pole/Wall Mounting (Kits included)

• Wireless Features:

  • Wireless Client Capacity:

    • 250+**

  • Wireless Standards:

    • IEEE 802.11ax/ac/n/g/b/a

  • Frequency:

    • 2.4 GHz, 5 GHz

  • Signal Rate:

    • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)

    • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)

    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11b: 1, 2, 5.5, 11 Mbps

    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • Transmit Power:

    • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)

    • FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

  • Wireless Functions:

    • 1024-QAM

    • 4 Longer OFDM Symbol

    • OFDMA

    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

    • Enable/Disable Wireless Radio

    • Automatic Channel Assignment

    • Transmit Power Control (Adjustable on dBm)

    • QoS (WMM)

    • MU-MIMO

    • Omada Mesh**

    • Seamless Roaming**

    • Band Steering

    • Load Balance

    • Airtime Fairness

    • Beamforming

    • Rate Limit

    • Reboot Schedule

    • Wireless Schedule

    • Wireless Statistics based on SSID/AP/Client

  • Wireless Security:

    • Captive Portal Authentication**

    • Access Control

    • Wireless MAC Address Filtering

    • Wireless Isolation Between Clients

    • SSID to VLAN Mapping

    • Rogue AP Detection

    • 802.1X Support

    • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Management:

  • Omada App:

    • Yes

  • Centralized Management:

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access:

  • Yes (Through OC300, OC200, or Omada Software Controller)

  • Email Alerts:

    • Yes

  • Management MAC Access Control:

    • Yes

  • SNMP:

    • v1, v2c

  • System Logging Local/Remote Syslog:

    • Yes

  • SSH:

    • Yes

  • Web-based Management:

    • Yes

  • L3 Management:

    • Yes

  • Multi-site Management:

    • Yes

  • Management VLAN:

    • Yes

  • Zero-Touch Provisioning:

    • Yes (Requires Omada Cloud-Based Controller)

• Others:

  • Certification:

    • CE, FCC, RoHS

  • Package Contents:

    • Access Point EAP610-Outdoor

    • Passive PoE Adapter

    • Power Cord

    • Mounting Kits

    • Installation Guide

  • System Requirements:

    • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

  • Environment:

    • Operating Temperature: -30‚¬"70C (-22‚¬"158F)

    • Storage Temperature: -40‚¬"70C (-40‚¬"158F)

    • Operating Humidity: 10‚¬"90% RH non-condensing

    • Storage Humidity: 5‚¬"90% RH non-condensing
