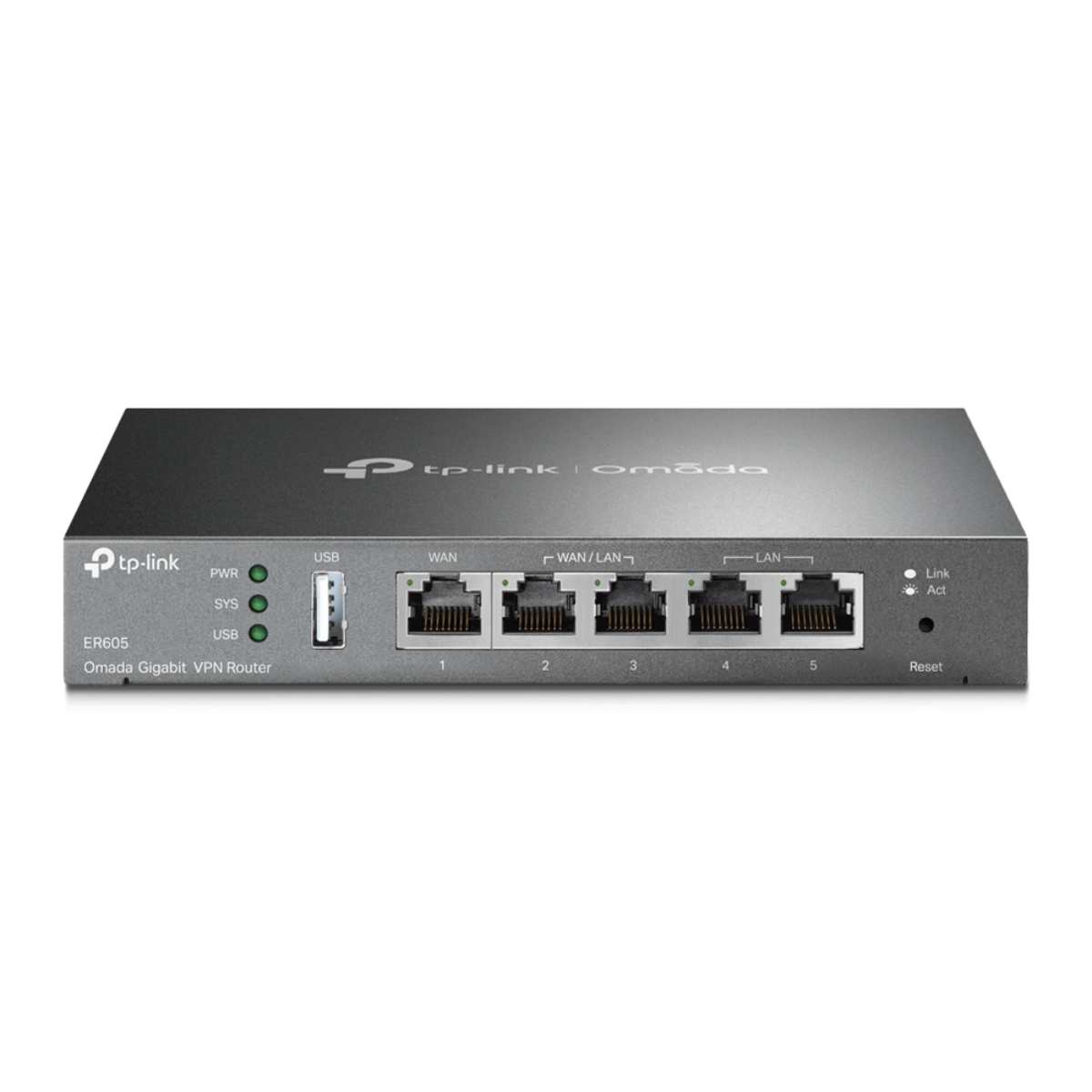

TPLINK ER605 OMADA GIGABIT VPN ROUTER
TPLINK ER605 OMADA GIGABIT VPN ROUTER
Product Features
Product Features
Specifications:
-
Security Features:
-
Access Control:
-
Source/Destination IP-Based Access Control
-
-
Filtering:
-
WEB Group Filtering
-
URL Filtering
-
Web Security
-
-
ARP Inspection:
-
Sending GARP Packets
-
ARP Scanning
-
IP-MAC Binding
-
-
Attack Defense:
-
TCP/UDP/ICMP Flood Defense
-
Block TCP Scan (Stealth FIN/Xmas/Null)
-
Block Ping from WAN
-
-
-
Hardware Features:
-
Standards and Protocols:
-
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q
-
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
-
-
Interfaces:
-
1 Fixed Gigabit WAN Port
-
2 Fixed Gigabit LAN Ports
-
2 Changeable Gigabit WAN/LAN Ports
-
1 USB 2.0 Port (for 4G/3G Modem as WAN Backup)
-
-
Network Media:
-
10BASE-T: UTP Cat 3, 4, 5 (Max 100m)
-
100BASE-TX: UTP Cat 5, 5e (Max 100m)
-
1000BASE-T: UTP Cat 5, 5e, 6 (Max 100m)
-
-
Fan Quantity: Fanless
-
Button: Reset Button
-
Power Supply: External 12V/1A DC Adapter
-
Flash: 128 MB NAND
-
DRAM: 256 MB DDR
-
LED Indicators:
-
PWR
-
SYS
-
WAN (Link/Act)
-
LAN (Link/Act)
-
USB
-
-
Dimensions (W x D x H): 6.2 4.0 1.0 in (158 101 25mm)
-
Protection: 4 kV surge protection
-
Enclosure: Steel
-
Mounting: Desktop/Wall-mount
-
Max Power Consumption: 7.94 W
-
-
Performance:
-
DPI Throughput:
-
TCP: 905 Mbps
-
UDP: 788 Mbps
-
-
Concurrent Sessions: 150,000
-
New Sessions/Second: 2,600
-
NAT Throughput:
-
Static IP:
-
Upload: 945.77 Mbps
-
Download: 945.56 Mbps
-
Bi-Directional: 1808.29 Mbps
-
-
DHCP:
-
Upload: 945.93 Mbps
-
Download: 945.43 Mbps
-
Bi-Directional: 1808.11 Mbps
-
-
PPPoE:
-
Upload: 940.44 Mbps
-
Download: 940.52 Mbps
-
Bi-Directional: 1804.27 Mbps
-
-
L2TP:
-
Upload: 845.64 Mbps
-
Download: 802.65 Mbps
-
Bi-Directional: 931.96 Mbps
-
-
PPTP:
-
Upload: 771.66 Mbps
-
Download: 874.81 Mbps
-
Bi-Directional: 999.54 Mbps
-
-
-
64 Byte Packet Forwarding Rate:
-
Upload/Download: 1,402,238 pps
-
Bi-Directional: 1,681,548 pps
-
-
IPsec VPN Throughput:
-
ESP-MD5-AES256: 171.26 Mbps
-
ESP-SHA1-AES256: 224.86 Mbps
-
ESP-SHA2-AES256: 248.04 Mbps
-
-
OpenVPN Throughput: 21.70 Mbps
-
L2TP VPN Throughput:
-
Unencrypted: 864.65 Mbps
-
Encrypted: 47.11 Mbps
-
-
PPTP VPN Throughput:
-
Unencrypted: 703.20 Mbps
-
Encrypted: 76.65 Mbps
-
-
66 Byte Packet Forwarding Rate:
-
Upload/Download: 954.50 Mbps
-
Bi-Directional: 1130.00 Mbps
-
-
1,518 Byte Packet Forwarding Rate:
-
Upload/Download: 997.50 Mbps
-
Bi-Directional: 1965.00 Mbps
-
-
-
Basic Functions:
-
WAN Connection Type:
-
Static/Dynamic IP
-
PPPoE
-
PPTP
-
L2TP
-
Mobile Broadband (4G/3G modem via USB port)
-
-
MAC Clone: Modify WAN/LAN MAC Address
-
DHCP:
-
DHCP Server/Client
-
DHCP Address Reservation
-
Multi-net DHCP
-
Multi-IP Interfaces
-
-
IPv6: Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough
-
VLAN: 802.1Q VLAN
-
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
-
-
Advanced Functions:
-
ACL: IP/Port/Protocol/Domain Name Filtering
-
Advanced Routing:
-
Static Routing
-
Policy Routing
-
-
Bandwidth Control: IP-based Bandwidth Control
-
Load Balance:
-
Intelligent Load Balance
-
Application Optimized Routing
-
Link Backup (Timing, Failover)
-
Online Detection
-
-
NAT:
-
One-to-One NAT
-
Multi-Net NAT
-
Virtual Server
-
Port Triggering
-
NAT-DMZ
-
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
-
-
Security:
-
SPI Firewall
-
VPN Passthrough
-
FTP/H.323/PPTP/SIP/IPsec ALG
-
DoS Defence, Ping of Death
-
Local Management
-
-
Session Limit: IP-based Session Limit
-
-
VPN Capabilities:
-
IPsec VPN:
-
20 IPsec VPN Tunnels
-
LAN-to-LAN, Client-to-LAN
-
DES, 3DES, AES128, AES192, AES256 Encryption
-
IKEv1/v2
-
MD5, SHA1 Authentication
-
NAT Traversal (NAT-T)
-
Dead Peer Detection (DPD)
-
Perfect Forward Secrecy (PFS)
-
-
PPTP VPN:
-
PPTP VPN Server
-
10 PPTP VPN Clients
-
16 Tunnels
-
PPTP with MPPE Encryption
-
-
L2TP VPN:
-
L2TP VPN Server
-
10 L2TP VPN Clients
-
16 Tunnels
-
L2TP over IPSec
-
-
OpenVPN:
-
OpenVPN Server
-
10 OpenVPN Clients
-
16 OpenVPN Tunnels
-
-
-
Authentication:
-
Web Authentication:
-
No Authentication
-
Simple Password
-
Hotspot (Local User / Voucher / SMS / Radius)
-
External Radius Server
-
External Portal Server
-
Facebook
-
-
-
Management:
-
Omada App:
-
Yes (requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
-
-
Centralized Management:
-
Omada Hardware Controller (OC300)
-
Omada Hardware Controller (OC200)
-
Omada Software Controller
-
Omada Cloud-Based Controller
-
-
Cloud Access:
-
Yes (requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
-
-
Service:
-
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
-
-
Maintenance:
-
Web Management Interface
-
Remote Management
-
Export & Import Configuration
-
SNMP v1/v2c/v3
-
Diagnostics (Ping & Traceroute)
-
NTP Synchronize
-
Syslog Support
-
-
Zero-Touch Provisioning:
-
Yes (requires Omada Cloud-Based Controller)
-
-
Management Features:
-
Automatic Device Discovery
-
Intelligent Network Monitoring
-
Abnormal Event Warnings
-
Unified Configuration
-
Reboot Schedule
-
Captive Portal Configuration
-
-
-
Others:
-
Certification:
-
CE
-
FCC
-
RoHS
-
-
Package Contents:
-
Gigabit VPN Router ER605
-
Power Adapter
-
RJ45 Ethernet Cable
-
Quick Installation Guide
-
-
System Requirements:
-
Microsoft Windows 98SE, NT, 2000, XP, Vista€žÂ¢, Windows 7/8/8.1/10/11
-
MAC OS, NetWare, UNIX or Linux
-
-
Environment:
-
Operating Temperature: 0‚¬"40 €žÆ' (32‚¬"104 €ž"
-
Storage Temperature: -40‚¬"70 €žÆ' (-40‚¬"158 €ž"
-
Operating Humidity: 10‚¬"90% RH non-condensing
-
Storage Humidity: 5‚¬"90% RH non-condensing
-
-
