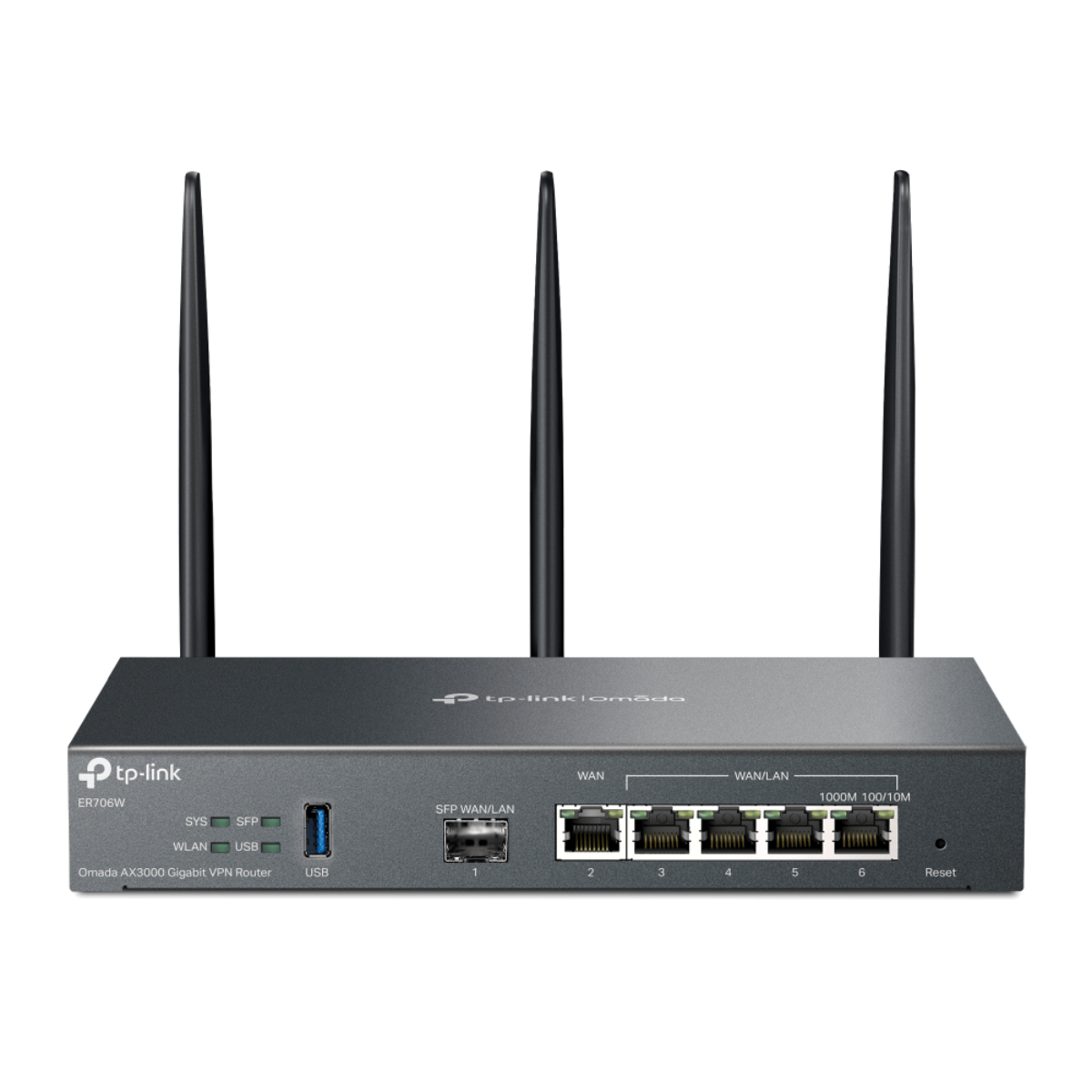

TPLINK ER706W OMADA AX3000 WI-FI 6 GIGABIT VPN ROUTER

Specifications:

• Security Features:

  • Access Control:

    • Source/Destination IP-Based Access Control

  • Filtering:

    • Web Group Filtering

    • URL Filtering

    • Web Security

  • ARP Inspection:

    • Sending GARP Packets

    • ARP Scanning

    • IP-MAC Binding

  • Attack Defense:

    • TCP/UDP/ICMP Flood Defense

    • Block TCP Scan (Stealth FIN/Xmas/Null)

    • Block Ping from WAN

• Hardware Features:

  • Interface:

    • 1 Gigabit SFP WAN/LAN Port

    • 1 Gigabit WAN Port

    • 4 Gigabit LAN/WAN Ports

    • 1 USB 3.0 Port (supports USB LTE dongle and USB Storage)

  • Button: Reset Button

  • Power Supply: 12VDC / 2A Power Adapter

  • Wi-Fi Frequency & Signal Rate:

    • 2.4 GHz: 574 Mbps

    • 5 GHz: 2402 Mbps (HE160)

  • Flash: 128 MB NAND

  • DRAM: 512 MB DDR4

  • Dimensions (W x D x H): 8.9 5.2 1.4 in (226 131 35 mm) (Antenna dimensions not included)

  • Antenna:

    • 2.4 GHz: 2x 3 dBi dual-band detachable antennas

    • 5 GHz: 3x 4.5 dBi dual-band detachable antennas

  • Mounting: Desktop/Wall-mounting

  • Max Power Consumption:

    • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)

    • US: 22.7W (with USB 3.0 connected), 18.2W (without USB 3.0 connected)

• Performance:

  • GRE:

    • Unencrypted: 624.2 Mbps

    • Encrypted: 301.5 Mbps

  • WireGuard VPN: 393.5 Mbps

  • Concurrent Sessions: 150,000

  • New Sessions/Second: 5,100

  • NAT Throughput:

    • Static IP: 937.2 Mbps / 936.1 Mbps

    • DHCP: 945.8 Mbps / 940.6 Mbps

    • PPPoE: 942.9 Mbps / 942.9 Mbps

    • L2TP: 837.4 Mbps / 881.5 Mbps

    • PPTP: 803.0 Mbps / 910.5 Mbps

  • IPsec VPN Throughput:

    • ESP-SHA1-AES256: 646.9 Mbps

    • ESP-SHA256-AES256: 642.8 Mbps

    • ESP-SHA384-AES256: 648.9 Mbps

    • ESP-SHA512-AES256: 658.4 Mbps

  • OpenVPN: 129.3 Mbps

  • L2TP VPN Throughput:

    • Unencrypted: 1034.0 Mbps

    • Encrypted: 570.0 Mbps

  • PPTP VPN Throughput:

    • Unencrypted: 1165.0 Mbps

    • Encrypted: 209.0 Mbps

  • SSL VPN Throughput: 126.7 Mbps

  • 66 Byte Packet Forwarding Rate:

    • Upload/Download: 1,453,489 pps / 1,453,488 pps

  • 1,518 Byte Packet Forwarding Rate:

    • Upload/Download: 81,274 pps / 91,275 pps

• Wireless Features:

  • Advanced Functions:

    • Seamless Roaming

    • Mesh (with EAPs that support Mesh)

    • OFDMA

    • Beamforming

    • MU-MIMO

    • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

  • Guest Network: Supported

• Basic Functions:

  • WAN Connection Type:

    • Static IP

    • Dynamic IP

    • PPPoE (supports MRU Configuration)

    • PPTP

    • L2TP

  • MAC Clone: Modify WAN Address

  • DHCP:

    • DHCP Server

    • DHCPv6 PD Server (only in Standalone Mode)

    • DHCP Options Customization

    • DHCP Address Reservation

    • Multi-IP Interfaces

    • Multi-Net DHCP

  • IPv6: Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address mode

  • VLAN: 802.1Q VLAN

  • IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

• Advanced Functions:

  • ACL: IP/Port/Protocol/Domain Name Filtering

  • Advanced Routing:

    • Static Routing

    • Policy Routing

    • RIP

    • OSPF

  • Bandwidth Control: IP-Based Bandwidth Control

  • Load Balance:

    • Intelligent Load Balance

    • Application Optimized Routing

    • Link Backup (Timing, Failover)

    • Online Detection

  • NAT:

    • One-to-One NAT

    • Multi-Net NAT

    • Port Forwarding

    • Port Triggering

    • NAT-DMZ

    • FTP/H.323/SIP/IPSec/PPTP ALG

    • UPnP

  • Session Limit: IP-Based Session Limit

• VPN Capabilities:

  • SSL VPN:

    • 50 Tunnels

  • IPsec VPN:

    • 100 IPsec VPN Tunnels

    • LAN-to-LAN, Client-to-LAN

    • Main, Aggressive Negotiation Mode

    • DES, 3DES, AES128, AES192, AES256 Encryption

    • IPsec Failover

    • IKE v1/v2

    • MD5, SHA1, SHA2-384, SHA2-512 Authentication

    • NAT Traversal (NAT-T)

    • Dead Peer Detection (DPD)

    • Perfect Forward Secrecy (PFS)

  • PPTP VPN:

    • PPTP VPN Server

    • 10 PPTP VPN Clients

    • 50 Tunnels

    • PPTP with MPPE Encryption

  • L2TP VPN:

    • L2TP VPN Server

    • 10 L2TP VPN Clients

    • 50 Tunnels

    • L2TP over IPSec

  • OpenVPN:

    • OpenVPN Server

    • 5 OpenVPN Clients

    • 55 OpenVPN Tunnels

    • "Certificate + Account" Mode

    • Full Mode

• Authentication:

  • Web Authentication:

    • No Authentication

    • Simple Password

    • Hotspot (Local User / Voucher / SMS / Radius)

    • External Radius Server

    • External Portal Server

    • LDAP

• Management:

  • Omada App: Yes

  • Centralized Management:

    • Omada Cloud-Based Controller

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access: Yes

  • Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

  • Maintenance:

    • Web Management Interface

    • Remote Management

    • Export & Import Configuration

    • SNMP v1/v2c/v3

    • Diagnostics (Ping & Traceroute)

    • NTP Synchronize

    • Port Mirroring

    • CLI (only in Standalone Mode)

    • Syslog Support

  • Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)

  • Management Features:

    • Automatic Device Discovery

    • Intelligent Network Monitoring

    • Abnormal Event Warnings

    • Unified Configuration

    • Reboot Schedule

    • Captive Portal Configuration

• Others:

  • Certification:

    • CE

    • FCC

    • RoHS

  • Package Contents:

    • ER706W

    • Power Adapter

    • Quick Installation Guide

  • System Requirements:

    • Microsoft Windows 98SE, NT, 2000, XP, Vista€žÂ¢, Windows 7/8/8.1/10/11

    • MAC OS, NetWare, UNIX, or Linux

  • Environment:

    • Operating Temperature: 0 C to 40 C (32 F to 104 F)

    • Storage Temperature: -40 C to 70 C (-40 F to 158 F)

    • Operating Humidity: 10% to 90% non-condensing

    • Storage Humidity: 5% to 90% non-condensing
