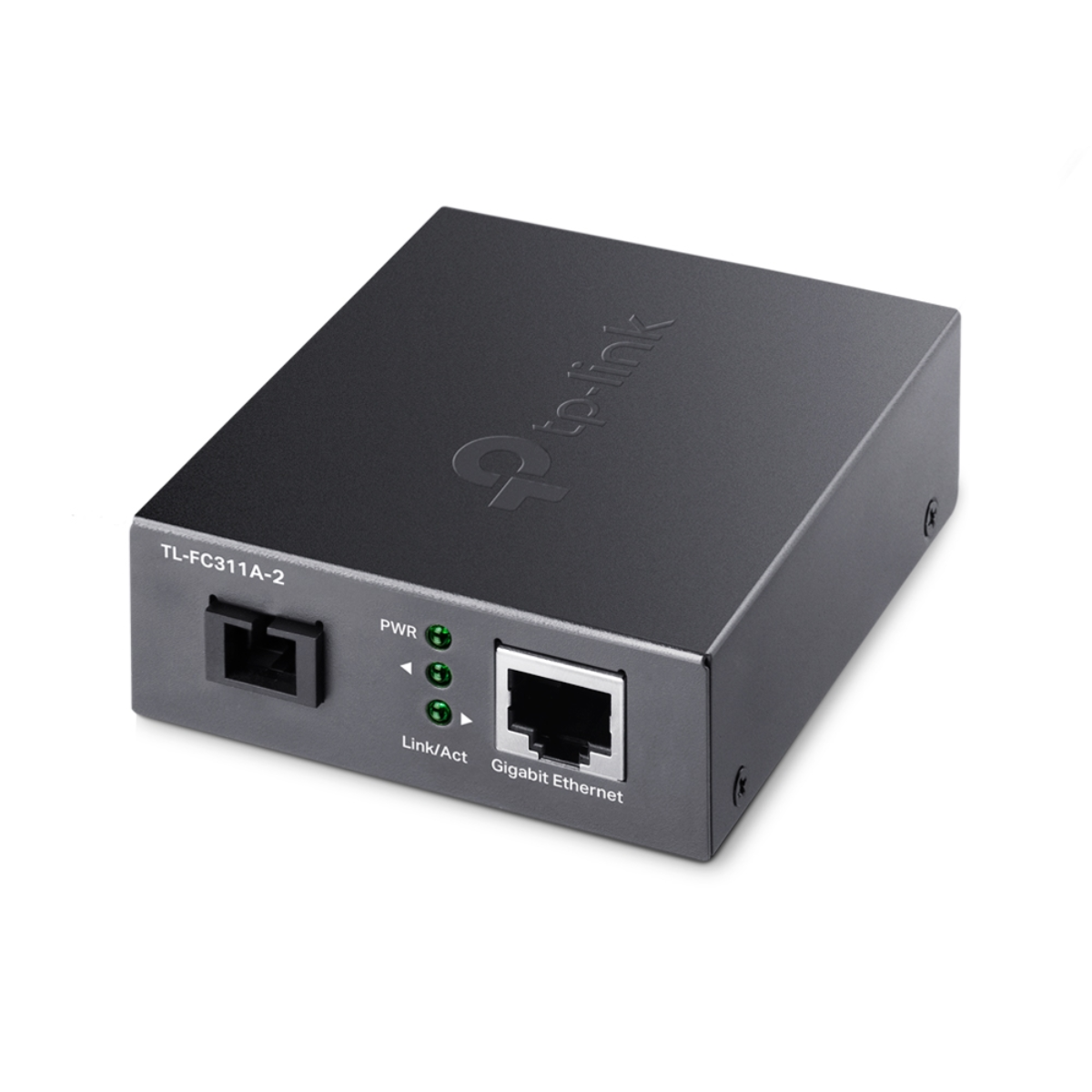

TPLINK FC311A-2 GIGABIT WDM MEDIA CONVERTER

Specifications:

• Network Standards and Protocols:

  • IEEE 802.3i

  • IEEE 802.3u

  • IEEE 802.3ab

  • IEEE 802.3z

• Environment:

  • Operating Temperature: 0¡C to 50¡C (32¡F to 122¡F)

  • Storage Temperature: -40¡C to 70¡C (-40¡F to 158¡F)

  • Operating Humidity: 10% to 90% RH non-condensing

  • Storage Humidity: 5% to 90% RH non-condensing

• Hardware Features:

  • Interface:

    • 1 Gigabit SC Fiber Port

    • 1 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

  • Network Media:

    • Single-mode Fiber

    • UTP Category 5, 5e cable (maximum 100m)

  • Power Supply: External Power Adapter: 5 V/0.6 A

  • LED Indicators: PWR, Link/Act

  • Wave Length: 1550 nm TX, 1310 nm RX

  • Dimensions: 3.7 2.9 1.1 in (94.5 73.0 27.0 mm)

• Media Converter & Module:

  • Fiber Type: 9/125 ¼m single-mode fiber (2 km max.)

• Others:

  • Package Contents:

    • Media Converter TL-FC311A-2

    • Power Adapter

    • Installation Guide
