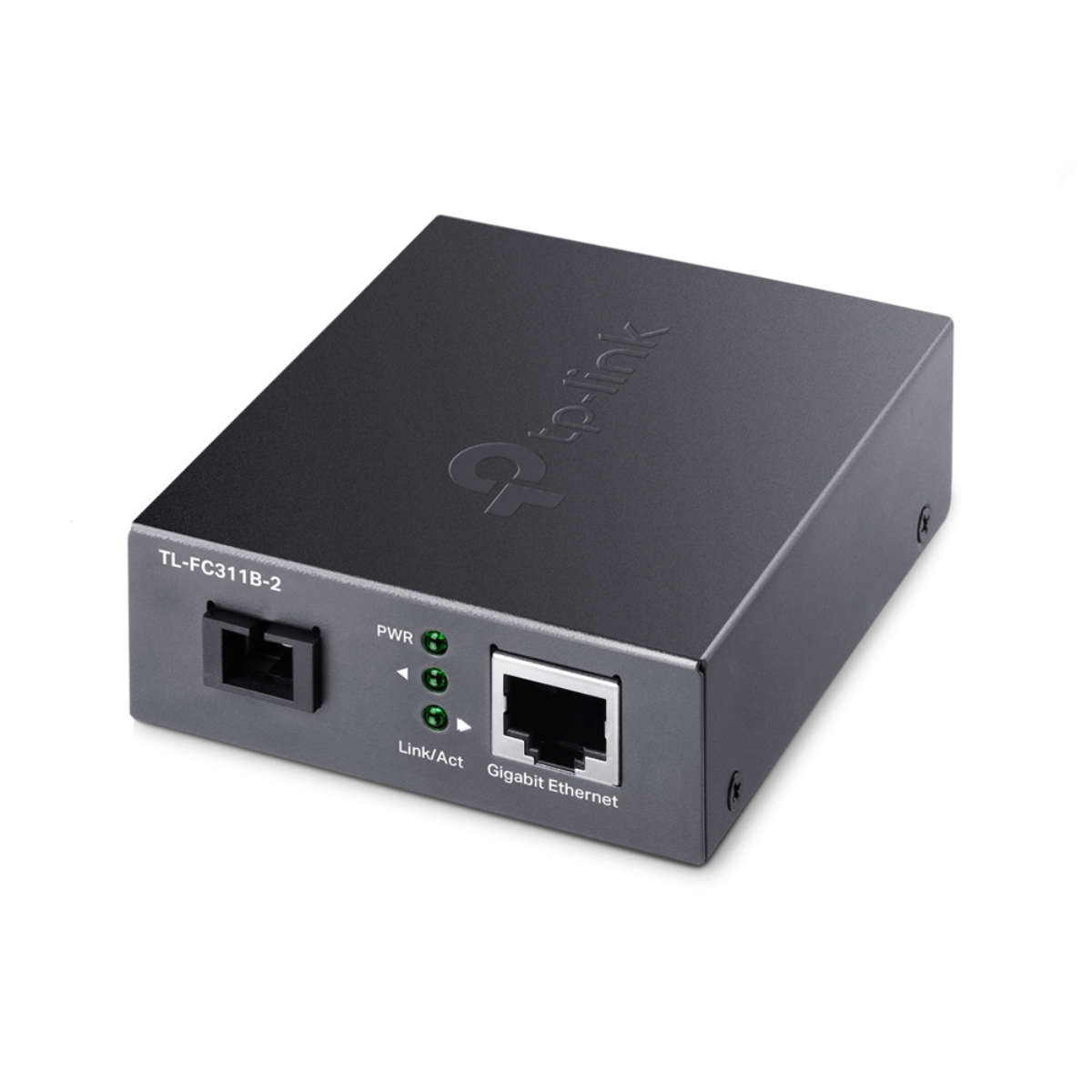

TPLINK FC311B-2 OMADA GIGABIT WDM MEDIA CONVERTER

Network Standards and Protocols

• IEEE 802.3i (10BASE-T)

• IEEE 802.3u (100BASE-TX)

• IEEE 802.3ab (1000BASE-T)

• IEEE 802.3z (1000BASE-LX)

Environmental Conditions

• Operating Temperature: 0¡C to 50¡C (32¡F to 122¡F)

• Storage Temperature: -40¡C to 70¡C (-40¡F to 158¡F)

• Operating Humidity: 10% to 90% RH (non-condensing)

• Storage Humidity: 5% to 90% RH (non-condensing)

Hardware Features

• Interfaces:

  • 1 Gigabit SC Fiber Port

  • 1 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

• Network Media:

  • Single-mode Fiber (9/125 ¼m, €°Â¤2 km)

  • UTP Category 5, 5e Cable (maximum 100m)

• Power Supply: External Power Adapter, 5 V/0.6 A

• LED Indicators: PWR, Link/Act

• Dimensions: 94.573.027.0 mm (3.72.91.1 in)

• Wavelengths:

  • 1310 nm TX (Transmit)

  • 1550 nm RX (Receive)

Media Converter & Module

• Fiber Type: 9/125 ¼m Single-mode Fiber (€°Â¤2 km)

Package Contents

• Media Converter TL-FC311B-2

• Power Adapter

• Installation Guide
