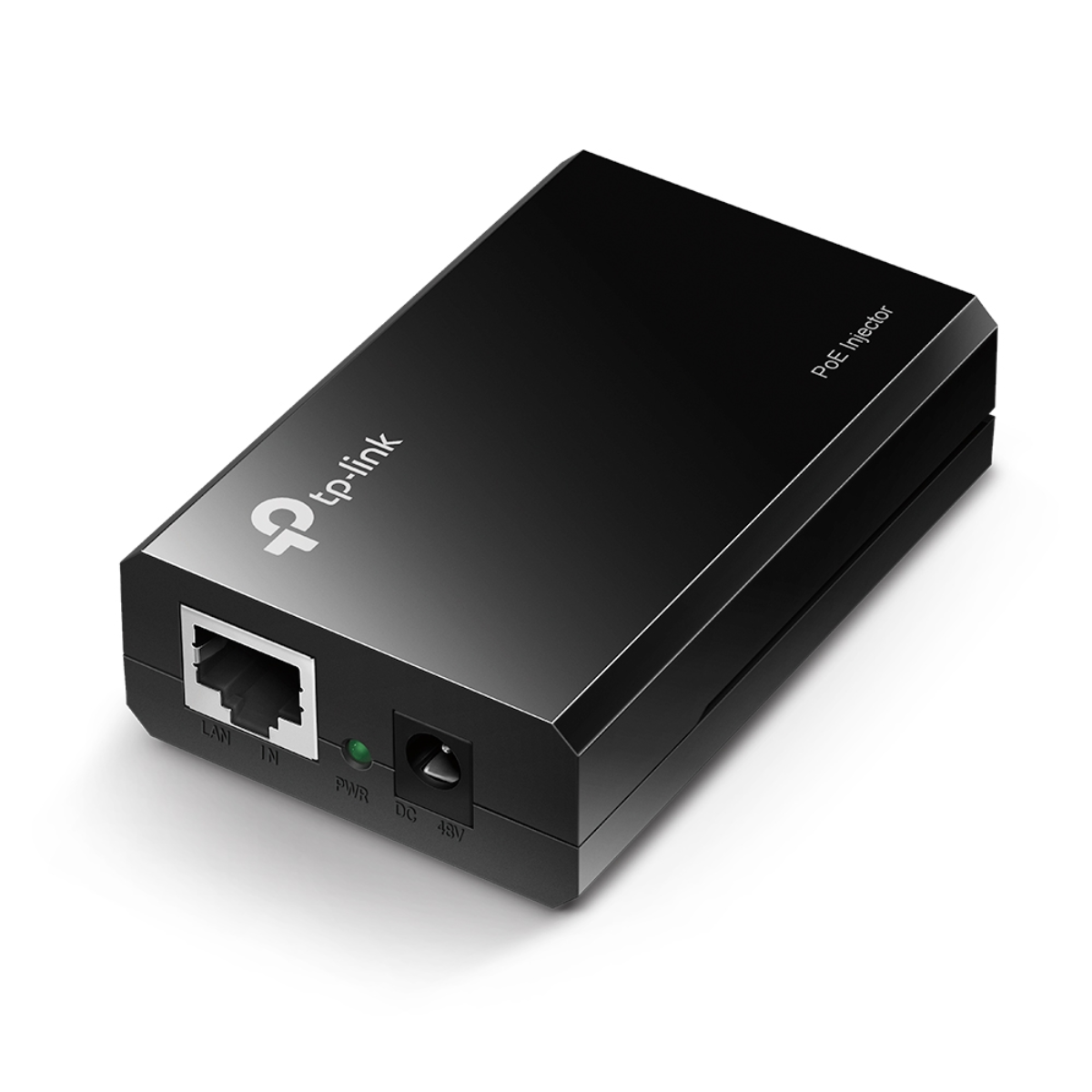

TPLINK POE150S POWER OVER ETHERNET SUPPLIER ADAPTER

Specifications:

• Hardware Features

  • Interfaces:

    • 2 10/100/1000 Mbps RJ45 Ports

    • 1 48VDC Power Input Port

  • Auto-Negotiation/Auto MDI/MDIX: Yes

  • Network Media:

    • 10BASE-T: UTP Category 3, 4, 5 (Max 100m)

    • EIA/TIA-568 100 STP (Max 100m)

    • 100BASE-TX: UTP Category 5, 5e (Max 100m)

    • EIA/TIA-568 100 STP (Max 100m)

    • 1000BASE-T: UTP Category 5, 5e, 6 (Max 100m)

  • Power Supply: 15.4W (Max 48VDC)

  • LED Indicator: PWR

  • Dimensions: 80.85424 mm (3.22.10.9 in)

• Software Features

  • Basic Functions:

    • Compatible with IEEE 802.3af Compliant PDs

    • Delivers Power Up to 100 Meters

    • Auto-Determines the Necessary Power Requirements

• Certification

  • Certifications: FCC, CE, RoHS

• Package Contents

  • Gigabit PoE Injector TL-POE150S

  • Power Adapter

  • RJ45 Cable

  • Installation Guide

• System Requirements

  • Microsoft Windows 98SE, NT, 2000, XP, Vista€žÂ¢, Windows 7

  • MAC OS

  • NetWare

  • UNIX or Linux

• Environment

  • Operating Temperature: 0€žÆ' to 40€žÆ' (32€ž" to 104€ž"

  • Storage Temperature: -40€žÆ' to 70€žÆ' (-40€ž" to 158€ž"

  • Operating Humidity: 10% to 90% non-condensing

  • Storage Humidity: 5% to 90% non-condensing
