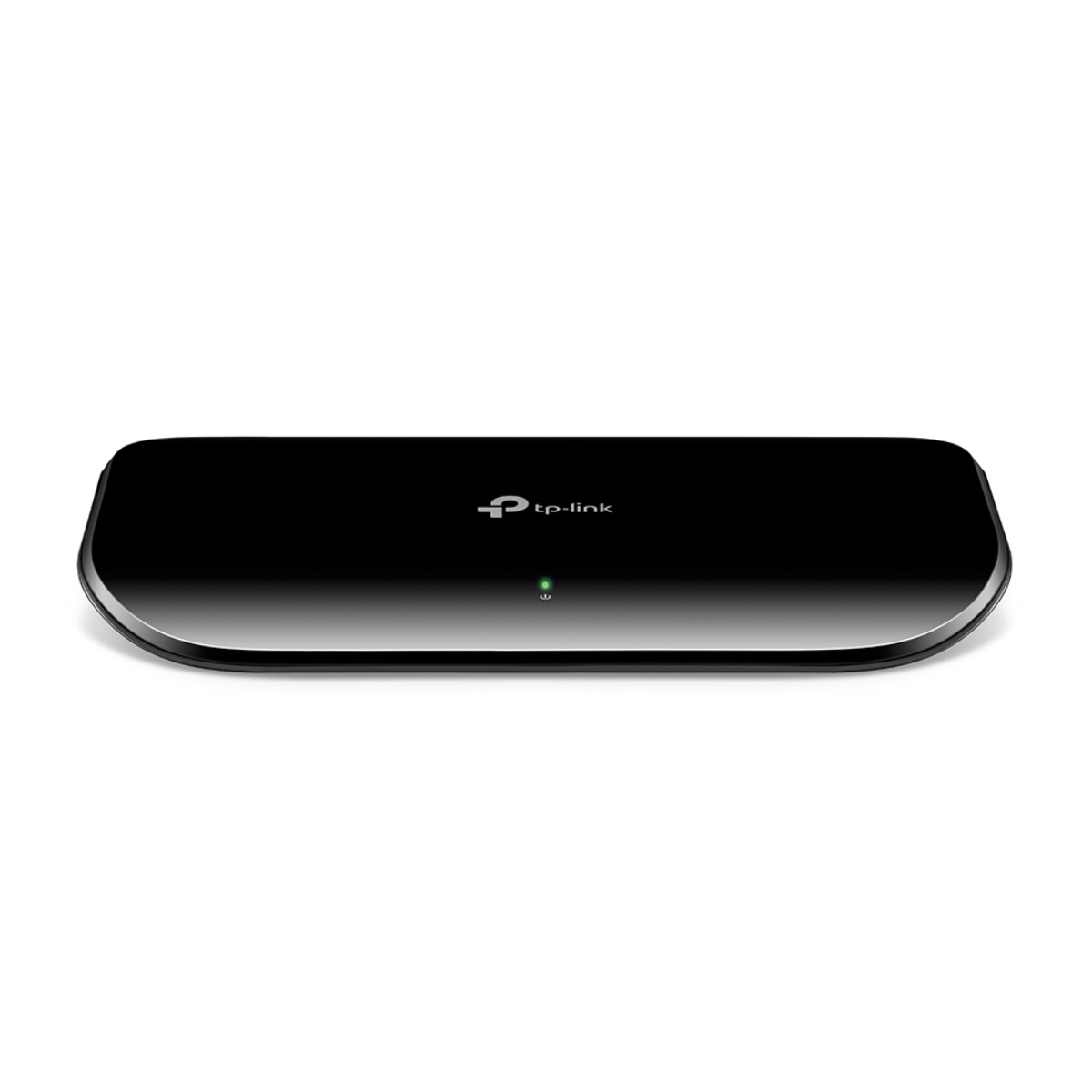

TPLINK SG1008D 8PORT GIGABIT SWITCH

Specifications:

• Hardware Features:

  • Standards and Protocols:

    • IEEE 802.3i

    • IEEE 802.3u

    • IEEE 802.3ab

    • IEEE 802.3x

  • Interface:

    • 8 10/100/1000Mbps RJ45 Ports

    • Auto-Negotiation

    • Auto MDI/MDIX

  • Fan Quantity: Fanless

  • Physical Security Lock: No

  • Power Consumption:

    • Maximum: 4.63W (220V/50Hz)

  • External Power Supply:

    • External Power Adapter (Output: 5VDC / 0.6A)

  • Jumbo Frame: 15 KB

  • Switching Capacity: 16 Gbps

  • Dimensions (W D H):

    • 7.1 3.5 1.0 in. (180 90 25.5 mm)

  • Max Heat Dissipation: 15.80 BTU/h

• Software Features:

  • Transfer Method: Store and Forward

  • MAC Address Table: 4K

  • Advanced Functions:

    • Green Technology (saves up to 80% power)

    • 802.3X Flow Control

    • Back Pressure

• Others:

  • Certification:

    • FCC

    • CE

    • RoHS

  • Package Contents:

    • 8-Port Gigabit Desktop Switch TL-SG1008D

    • Power Adapter

    • Installation Guide

  • System Requirements: None specified

  • Environment:

    • Operating Temperature: 0C ~ 40C (32F ~ 104F)

    • Storage Temperature: -40C ~ 70C (-40F ~ 158F)

    • Operating Humidity: 10% ~ 90% non-condensing

    • Storage Humidity: 5% ~ 90% non-condensing
