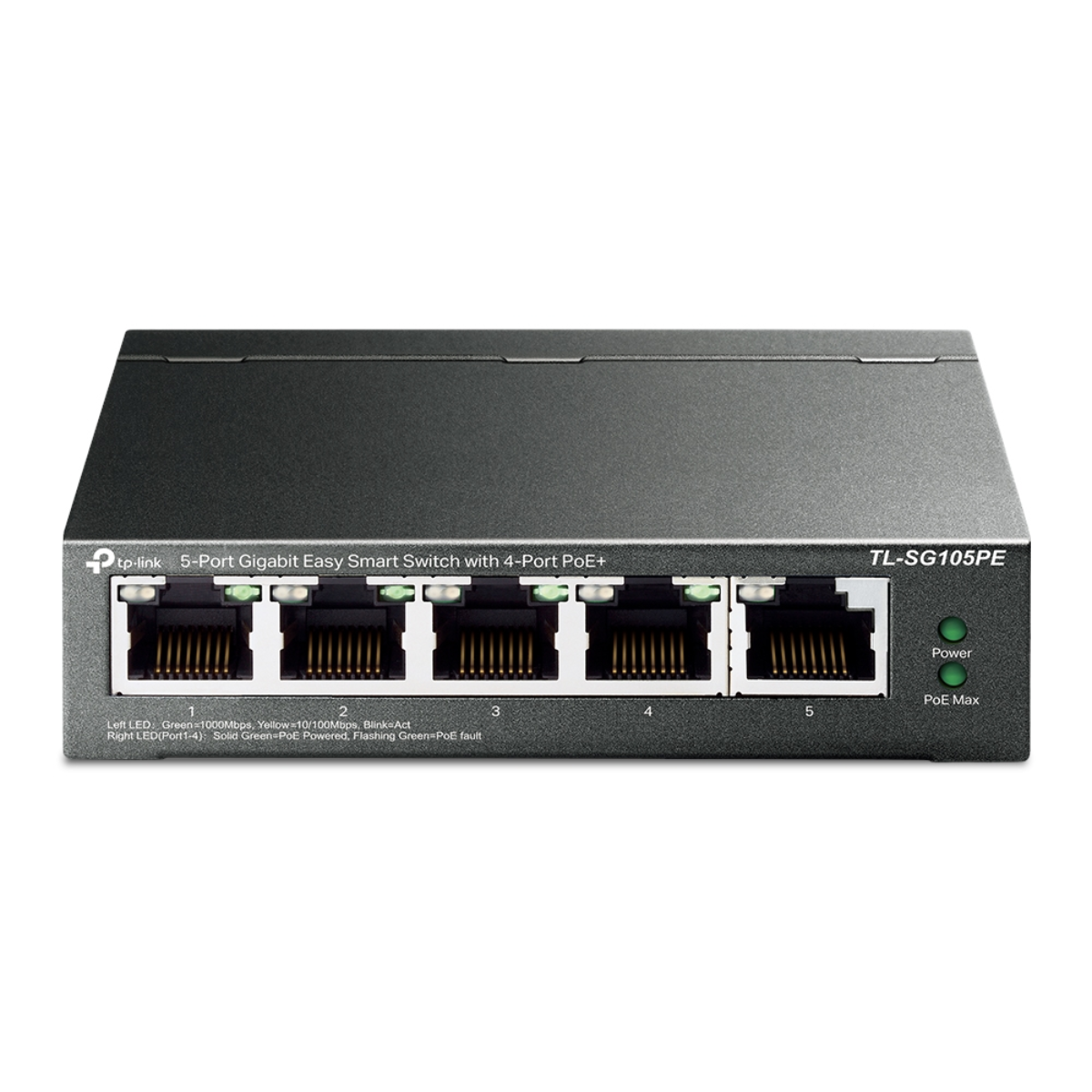

TPLINK SG105PE 5PORT GIGABIT EASY SMART SWITCH WITH 4PORT POE+

Specifications:

• HARDWARE FEATURES

  • Standards and Protocols:

    • IEEE 802.3i

    • IEEE 802.3u

    • IEEE 802.3ab

    • IEEE 802.3af

    • IEEE 802.3x

    • IEEE 802.1q

    • IEEE 802.1p

    • IEEE 802.3at

  • Interface:

    • Five 10/100/1000Mbps RJ45 Ports

    • AUTO Negotiation/AUTO MDI/MDIX

  • Network Media:

    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

  • Fan Quantity: Fanless

  • Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)

  • PoE Ports (RJ45):

    • Standard: 802.3 af/at compliant

    • PoE Ports: Port 1- Port 4

    • PoE Power Budget: 65 W

  • Dimensions: 3.9 3.9 1.0 in (99.8 98 25 mm)

  • Max Power Consumption:

    • 4.52 W (220V/50Hz with no PD connected)

    • 75.16 W (220V/50Hz with 65 W PD connected)

  • Max Heat Dissipation:

    • 15.41 BTU/h (with no PD connected)

    • 256.30 BTU/h (with 65 W PD connected)

• PERFORMANCE

  • Switching Capacity: 10 Gbps

  • Packet Forwarding Rate: 7.44 Mpps

  • MAC Address Table: 2 K

  • Packet Buffer Memory: 1 Mb

  • Jumbo Frame: 16 KB

• SOFTWARE FEATURES

  • Quality of Service:

    • Support Port-Based/802.1p/DSCP priority

    • Support 4 priority queues

    • Rate Limit

    • Storm Control

  • L2 Features:

    • IGMP Snooping V1/V2/V3

    • Static Link Aggregation

    • Port Mirroring

    • Cable Diagnostics

    • Loop Prevention

    • PoE Auto Recovery

    • Extend Mode

  • VLAN:

    • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

    • MTU/Port/Tag VLAN

  • Management:

    • Web-based GUI

    • Easy Smart Configuration Utility

  • Transmission Method: Store-And-Forward

• OTHERS

  • Certification: FCC, CE, RoHS

  • Package Contents:

    • TL-SG105PE

    • Power Adapter

    • Installation Guide

    • Rubber Feet

  • System Requirements: Microsoft Windows for running Utility

  • Environment:

    • Operating Temperature: 0€žÆ'~40€žÆ' (32€ž"104€ž"

    • Storage Temperature: -40€žÆ'~70€žÆ' (-40€ž"158€ž"

    • Operating Humidity: 10%~90% RH non-condensing

    • Storage Humidity: 5%~95% RH non-condensing
