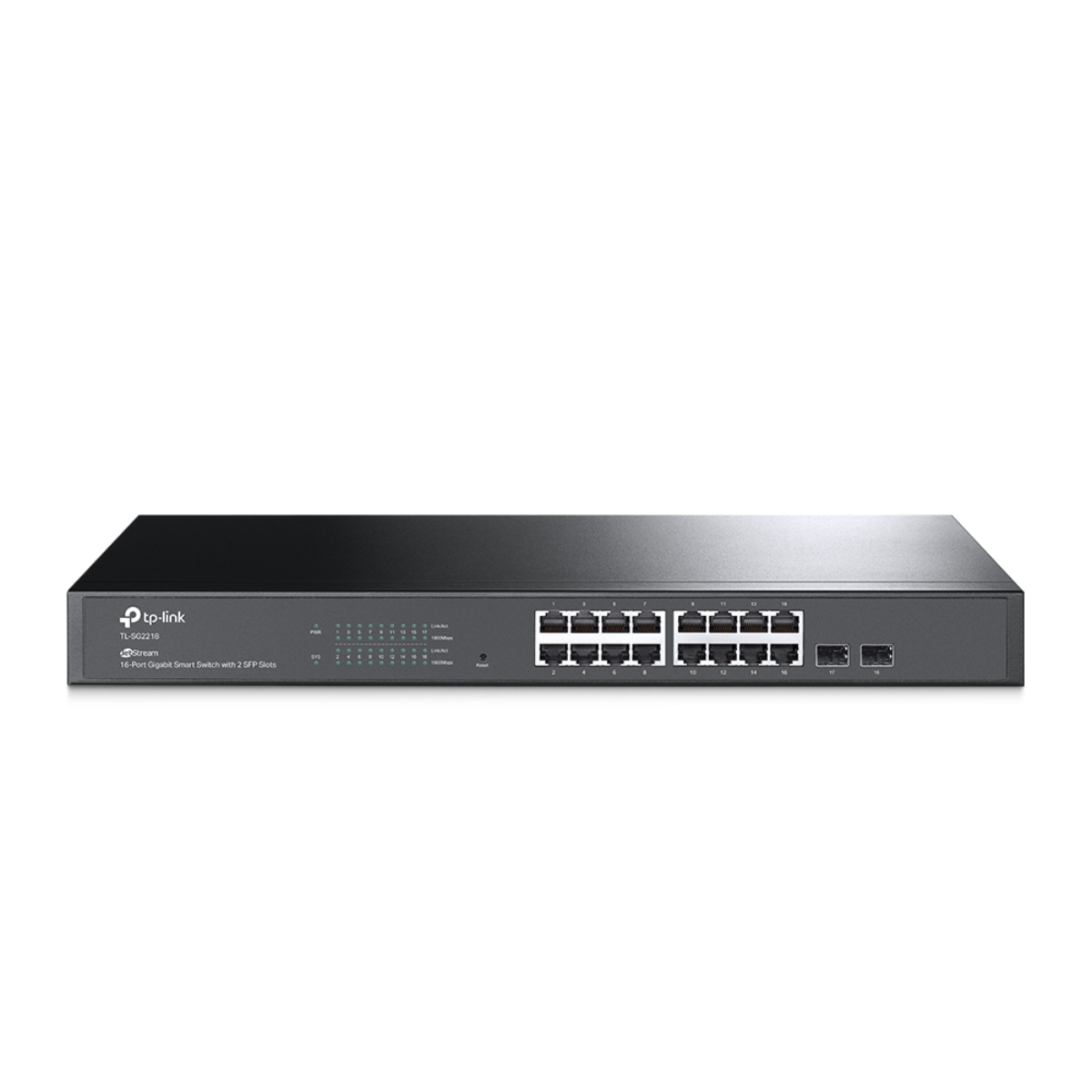

TPLINK SG2218 JETSTREAM 16PORT GIGABIT SMART SWITCH WITH 2 SFP SLOTS

Specifications:

• Hardware Features

  • Interface:

    • 16 10/100/1000 Mbps RJ45 Ports

    • 2 Gigabit SFP Slots

  • Fan Quantity: Fanless

  • Power Supply: 100-240 V AC~50/60 Hz

  • Dimensions (W x D x H): 17.3 7.1 1.7 in. (440 180 44 mm)

  • Mounting: Rack Mountable

  • Max Power Consumption: 12.3 W

  • Max Heat Dissipation: 42.0 BTU/hr

• Performance

  • Switching Capacity: 36 Gbps

  • Packet Forwarding Rate: 26.8 Mpps

  • MAC Address Table: 8K

  • Jumbo Frame: 9 KB

• Software Features

  • Quality of Service:

    • 8 priority queues

    • 802.1p CoS/DSCP priority

    • Queue Scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

    • Bandwidth Control: Port/Flow based Rate Limiting

    • Action for Flows: Mirror, Redirect, Rate Limit, QoS Remark

  • L3 Features:

    • 16 IPv4/IPv6 Interfaces

    • Static Routing: 48 static routes

    • Static ARP

    • 316 ARP Entries

    • Proxy ARP

    • Gratuitous ARP

    • DHCP Server, Relay, L2 Relay

  • L2 and L2+ Features:

    • Link Aggregation: Static link aggregation, 802.3ad LACP (up to 8 groups, 8 ports/group)

    • Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP

    • Loopback Detection: Port-based, VLAN based

    • Flow Control: 802.3x Flow Control, HOL Blocking Prevention

    • Mirroring: Port Mirroring, CPU Mirroring (One-to-One, Many-to-One, Tx/Rx/Both)

  • L2 Multicast:

    • Supports 511 IGMP groups (IPv4, IPv6)

    • IGMP Snooping: v1/v2/v3, Fast Leave, Snooping Querier, IGMP Authentication

    • MVR

    • MLD Snooping: v1/v2, Fast Leave, Snooping Querier, Static Group Config

    • Multicast Filtering: 256 profiles, 16 entries/profile

  • Advanced Features:

    • Support for Omada Controllers (Hardware & Software)

    • Automatic Device Discovery, Batch Configuration, Firmware Upgrading

    • Intelligent Network Monitoring, Abnormal Event Warnings

    • Unified Configuration, Reboot Schedule, ZTP (Zero-Touch Provisioning)

  • VLAN:

    • Max 4K VLAN Groups

    • 802.1q Tagged VLAN, MAC VLAN, Protocol VLAN, GVRP

    • VLAN VPN (QinQ): Port-Based, Selective

    • Voice VLAN

  • Access Control List (ACL):

    • Time-based ACL

    • MAC ACL: Source/Destination MAC, VLAN ID, User Priority, Ether Type

    • IP ACL: Source/Destination IP, Fragment, IP Protocol, TCP Flag, Port, DSCP/IP TOS, User Priority

    • Combined ACL, Packet Content ACL, IPv6 ACL

    • Policy: Mirroring, Redirect, Rate Limit, QoS Remark

    • ACL apply to Port/VLAN

  • Security:

    • IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, IPv4 Source Guard

    • IPv6-MAC-Port Binding, DHCPv6 Snooping, ND Detection, IPv6 Source Guard

    • DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses/port)

    • Broadcast/Multicast/Unicast Storm Control

    • IP/Port/MAC based access control

    • 802.1X: Port/MAC based authentication, VLAN Assignment, MAB, Guest VLAN, Radius Authentication

    • AAA (including TACACS+), Port Isolation

    • Secure web management (HTTPS with SSLv3/TLS 1.2), CLI management (SSHv1/SSHv2)

  • IPv6:

    • Dual IPv4/IPv6

    • MLD Snooping, IPv6 ACL, IPv6 Interface

    • Static IPv6 Routing, IPv6 Neighbor Discovery (ND)

    • Path MTU Discovery, ICMPv6, TCPv6/UDPv6

    • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP/SSH/SSL/Http/Https/TFTP

  • Management:

    • Web-based GUI, CLI (through console port, telnet)

    • SNMPv1/v2c/v3 (Trap/Inform, RMON 1,2,3,9 groups)

    • SDM Template, DHCP/BOOTP Client

    • 802.1ab LLDP/LLDP-MED, DHCP AutoInstall

    • Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics

    • EEE, Password Recovery, SNTP, System Log

• Others

  • Certification: CE, FCC, RoHS

  • Package Contents:

    • TL-SG2218 Switch

    • Power Cord

    • Quick Installation Guide

    • Rackmount Kit

    • Rubber Feet

  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista€žÂ¢, 7/8/10/11; MAC OS; NetWare; UNIX or Linux

  • Environment:

    • Operating Temperature: 0‚¬"40C (32‚¬"104F)

    • Storage Temperature: -40‚¬"70C (-40‚¬"158F)

    • Operating Humidity: 10‚¬"90% RH non-condensing

    • Storage Humidity: 5‚¬"90% RH non-condensing
