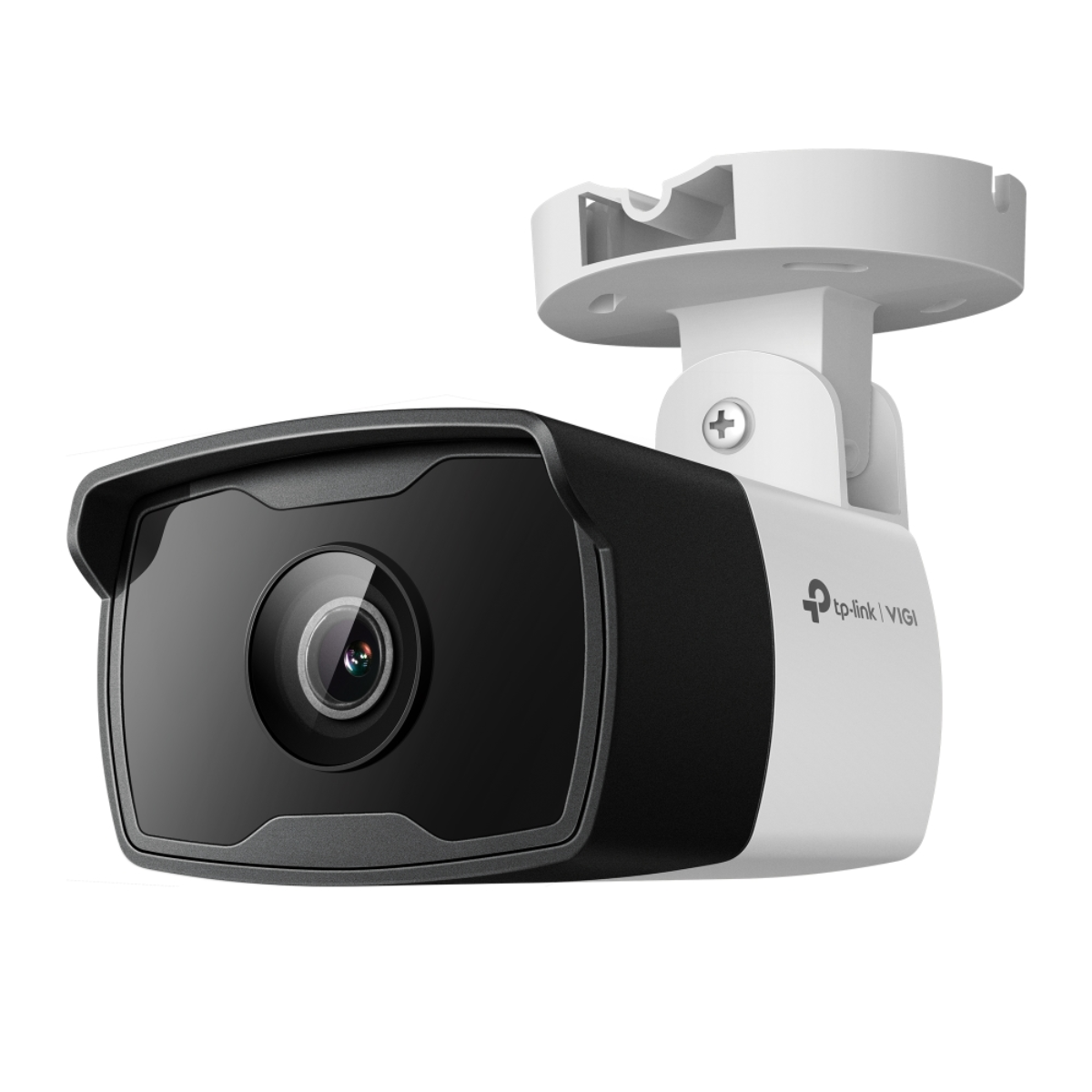

TPLINK VIGI C320I-2.8 2MP OUTDOOR IR BULLET NETWORK CAMERA

Specifications:

• Camera Specifications

  • Image Sensor: 1/3‚¬Â Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Aperture:

    • 2.8 mm: F2.2

    • 4 mm: F2.0

    • 6 mm: F2.0

  • Lens: 2.8 mm / 4 mm / 6 mm

  • Lens Mount: M12

  • Minimum Illumination:

    • Color: 0.1 Lux

    • 0 Lux with IR

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Day/Night/Auto/Schedule

  • Digital Noise Reduction: 3D DNR

  • Wide Dynamic Range: DWDR

  • Weatherproof Rating: IP67

  • IR Working Distance: 30 m

  • Viewing Angle:

    • 2.8 mm:

      • Horizontal: 88.2

      • Vertical: 48.7

      • Diagonal: 106.5

    • 4 mm:

      • Horizontal: 74.6

      • Vertical: 41.3

      • Diagonal: 88.1

    • 6 mm:

      • Horizontal: 47.7

      • Vertical: 26.5

      • Diagonal: 56

• Lens Specifications

  • Type: Fixed Focal Lens

  • Focal Length: 2.8 mm / 4 mm / 6 mm

  • Aperture:

    • 2.8 mm: F2.2

    • 4 mm: F2.0

    • 6 mm: F2.0

  • Field of View (FOV):

    • 2.8 mm:

      • Horizontal: 88.2

      • Vertical: 48.6

      • Diagonal: 106.5

    • 4 mm:

      • Horizontal: 74.6

      • Vertical: 41.3

      • Diagonal: 88.1

    • 6 mm:

      • Horizontal: 47.7

      • Vertical: 26.5

      • Diagonal: 56

  • DORI Distance:

    • 2.8 mm:

      • Detect: 45 m

      • Observe: 19 m

      • Recognize: 9 m

      • Identify: 5 m

    • 4 mm:

      • Detect: 60 m

      • Observe: 25 m

      • Recognize: 12 m

      • Identify: 6 m

    • 6 mm:

      • Detect: 91 m

      • Observe: 38 m

      • Recognize: 18 m

      • Identify: 9 m

  • Angle Adjustment (Manual):

    • Pan: -90 to 90

    • Tilt: -90 to 90

• Illuminator

  • IR LED:

    • Quantity: 2

    • Range: 30 m

    • Wavelength: 850 nm

  • White LED: N/A

  • Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

• Video Specifications

  • Max. Resolution: 1920 1080

  • Main Stream Frame Rate:

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Main Stream Resolutions: 1920x1080, 1280x960, 1280x720

  • Sub-Stream Frame Rate:

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Sub-Stream Resolutions: 704x576, 640x480, 352x288, 320x240

  • Bit Rate Control: CBR, VBR

  • Video Compression:

    • Main Stream: H.265+/H.265/H.264+/H.264

    • Sub-Stream: H.265/H.264

  • Video Bit Rate:

    • Main Stream: 256 Kbps to 4 Mbps

    • Sub-Stream: 64 Kbps to 512 Kbps

• Image Settings

  • Image Settings:

    • Mirror

    • Brightness

    • Contrast

    • Saturation

    • Sharpness

    • Exposure

    • WDR

    • White Balance (adjustable by client software)

  • Image Enhancement: BLC/3D DNR/HLC/SmartIR

  • Wide Dynamic Range: DWDR

  • SNR: €°Â¥ 52 dB

  • Privacy Mask: Up to 4 Masks

  • Region of Interest (ROI): 1 Region

  • OSD Setting: Yes

• Audio

  • Audio Communication: N/A

  • Audio Input: N/A

  • Audio Output: N/A

• Network Specifications

  • Protocols:

    • TCP/IP

    • UDP

    • ICMP

    • HTTP

    • HTTPS

    • DHCP

    • DNS

    • RTSP

    • NTP

    • UPnP

    • SSL/TLS

  • ONVIF: Yes

  • API: ONVIF

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client: VIGI App, VIGI Security Manager, VIGI NVR

  • Web Browser Compatibility:

    • Google Chrome 57 and above

    • Firefox 52 and above

    • Safari 11 and above

    • Microsoft Edge 91 and above

  • Cloud Support: Yes

  • Security Features:

    • Password Protection

    • HTTPS Encryption

    • IP Address Filter

    • Digest Authentication

  • Network Storage: NAS (NFS, SMB/CIFS)

• Alarm and Event Management

  • Smart Event Detection:

    • Human & Vehicle Classification

    • Area Intrusion Detection

    • Line-Crossing Detection

    • Object Abandonment/Removal Detection

  • Basic Events:

    • Motion Detection

    • Video Tampering Detection

    • Exception (Illegal Login)

  • Alarm Linkage: Message Push

• Interfaces

  • Network Interface: 1 RJ45 10/100M self-adaptive Ethernet port

  • Power Supply: PoE (802.3af/at, class 0)

  • Dimensions (H x W x D): 174 74 71 mm

  • Material: Plastic

  • Weight:

    • Net: 0.2 Kg

    • Gross: 0.35 Kg

  • Operating Temperature: -30 to 60 C

  • Storage Temperature: -40 to 60 C

  • Operating Humidity: 95% or less (non-condensing)

  • Storage Humidity: 95% or less (non-condensing)

  • Waterproof Rating: IP67

  • Certifications: CE/BSMI/VCCI/ONVIF

• General Features

  • Power Consumption: PoE: Class 0

  • Additional Features:

    • Two Streams

    • Mirror

    • Privacy Masks

    • Password Reset via E-mail

    • HTTP Listening
