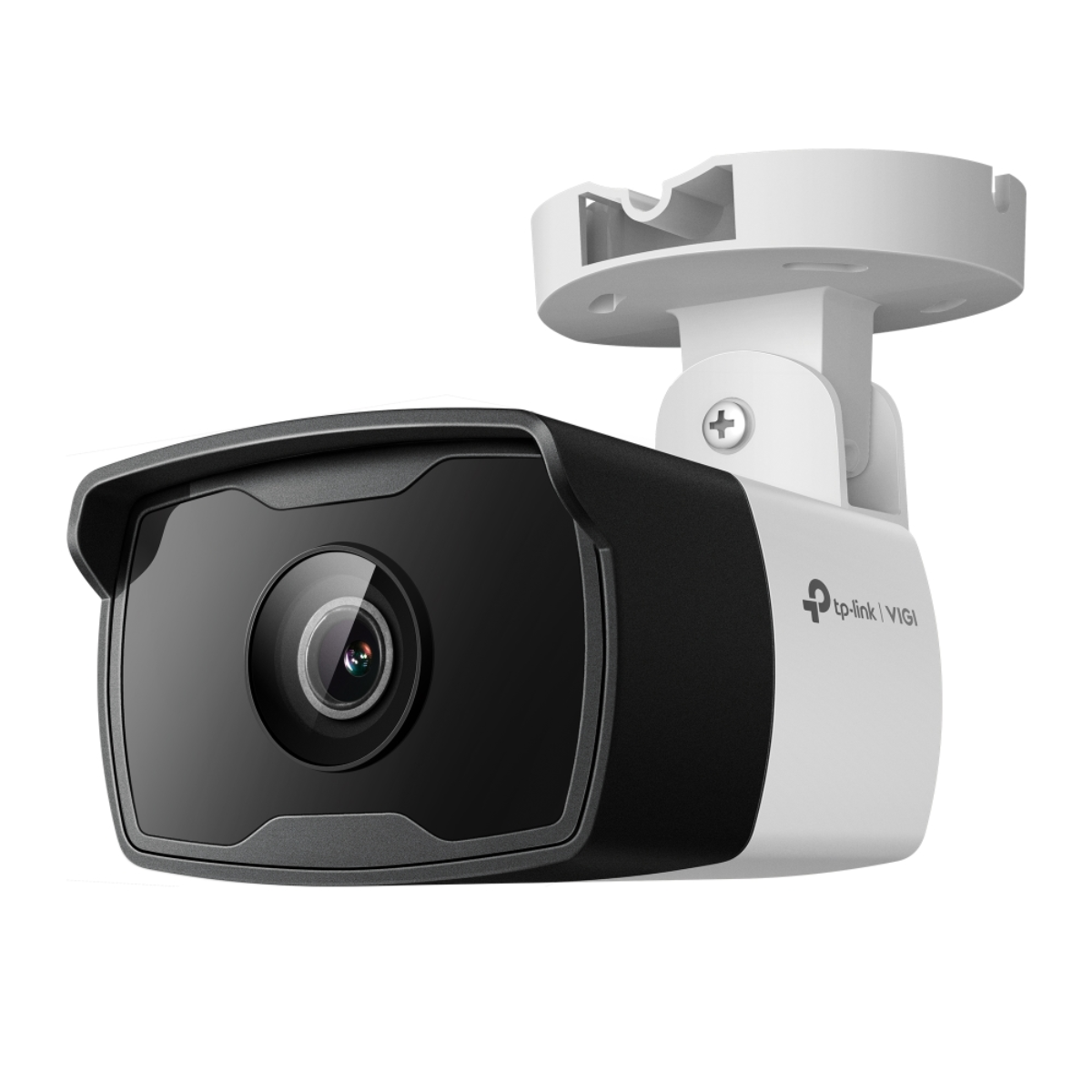

TPLINK VIGI C340I-2.8 4MP OUTDOOR IR BULLET NETWORK CAMERA

SPECIFICATIONS:

• CAMERA

  • Image Sensor: 1/3‚¬Â Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Day/Night/Auto/Schedule-Switch

  • Digital Noise Reduction: 3D DNR

  • WDR: DWDR

  • Weatherproof Rating: IP67

  • IR Working Distance: 30m

• LENS

  • Type: Fixed Focal Lens

  • Focal Length: 2.8 mm / 4 mm / 6 mm

  • Aperture: 2.8 mm: F2.2; 4 mm: F2.0; 6 mm: F2.0

  • Field of View (FOV):

    • 2.8 mm: H: 88.8, V: 48.9, D: 106.5

    • 4 mm: H: 75.1, V: 41.5, D: 88.7

    • 6 mm: H: 47.7, V: 26.5, D: 56

  • DORI Distance:

    • 2.8 mm: Detect: 60 m, Observe: 25 m, Recognize: 12 m, Identify: 6 m

    • 4 mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m

    • 6 mm: Detect: 120 m, Observe: 50 m, Recognize: 24 m, Identify: 12 m

  • Lens Mount: M12

• ILLUMINATOR

  • IR LED Quantity: 2

  • IR Range: 30m

  • Wavelength: 850nm

  • Illuminator Control: Auto/Scheduled/Always on/Always off

• VIDEO

  • Max Resolution: 2560 1440

  • Main Stream Frame Rate:

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Sub-Stream Frame Rate:

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Bit Rate Control: CBR, VBR

  • Video Compression:

    • Main Stream: H.265+/H.265/H.264+/H.264

    • Sub-Stream: H.265/H.264

  • Video Bit Rate:

    • Main Stream: 256 Kbps to 4 Mbps

    • Sub-Stream: 64 Kbps to 512 Kbps

• IMAGE

  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Rotation (90/270)

  • Image Enhancement: BLC/3D DNR/HLC/SmartIR

  • Wide Dynamic Range: DWDR

  • SNR: €°Â¥ 52 dB

  • Privacy Mask: Up to 4 Masks

  • Region of Interest (ROI): 1 Region

• AUDIO

  • Audio Communication: N/A

• NETWORK

  • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

  • ONVIF: Yes

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

  • Web Browser Compatibility: Google Chrome, Firefox, Safari, Microsoft Edge

  • Cloud Support: Yes

  • Security Features: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• ALARM AND EVENT MANAGEMENT

  • Smart Events: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Object Detection

  • Basic Events: Motion Detection, Video Tampering Detection

  • Alarm Linkage: Message Push

• INTERFACES

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

  • Power: DC Power Port

  • Built-in Microphone/Speaker: Yes

• GENERAL

  • Operating Temperature: -30‚¬"60 C

  • Storage Temperature: -40‚¬"60 C

  • Operating Humidity: 95% or Less (Non-Condensing)

  • Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories

  • Material: Plastic

  • Net Weight: 0.2 Kg

  • Gross Weight: 0.35 Kg

  • Power Supply: 12V DC ± 5%, Max 5W

  • Protection Rating: IP67

  • Product Dimensions: 73 174 71 mm

• CERTIFICATIONS

  • Certifications: CE, BSMI, VCCI, ONVIF
