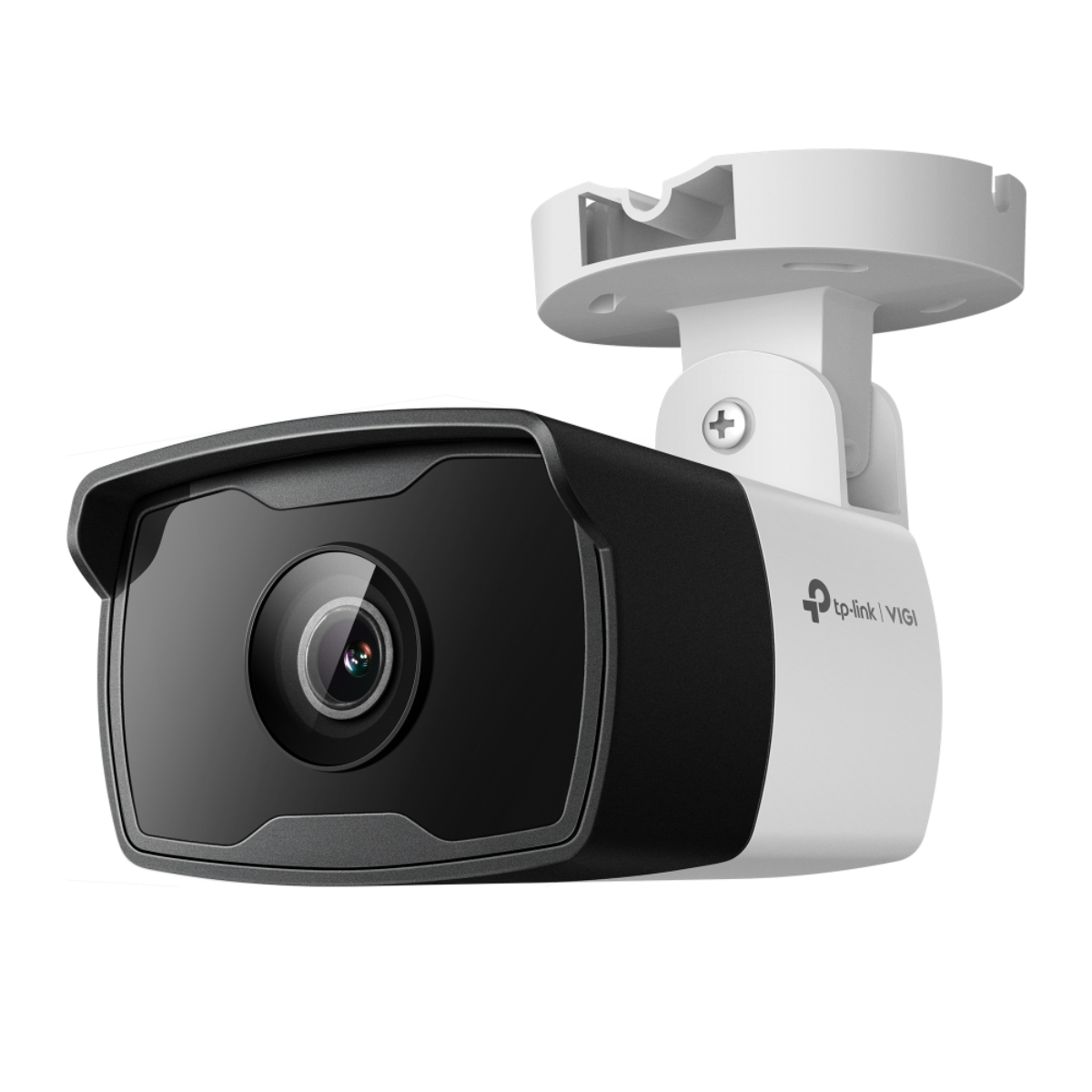

TPLINK VIGI C340I-6 4MP OUTDOOR IR BULLET NETWORK CAMERA

Specifications:

• Camera:

  • Image Sensor: 1/3‚¬Â Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Unified/Scheduled/Auto

• Lens:

  • Type: Fixed Focal Lens

  • Focal Length: 2.8 mm / 4 mm / 6 mm

  • Aperture:

    • 2.8 mm: F2.2

    • 4 mm: F2.2

    • 6 mm: F2.0

  • Field of View:

    • 2.8 mm: H: 88.8, V: 48.9, D: 106.5

    • 4 mm: H: 75.1, V: 41.5, D: 88.7

    • 6 mm: H: 47.7, V: 26.5, D: 56

  • Lens Mount: M12

  • DORI Distance:

    • 2.8 mm: Detect: 60 m, Observe: 25 m, Recognize: 12 m, Identify: 6 m

    • 4 mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m

    • 6 mm: Detect: 120 m, Observe: 50 m, Recognize: 24 m, Identify: 12 m

  • Angle Adjustment: Pan: -90 to 90, Tilt: -90 to 90

• Illuminator:

  • IR LED Quantity: 2

  • IR Range: 30 m

  • Wavelength: 850nm

  • Illuminator Control: Auto/Scheduled/Always on/Always off

• Video:

  • Max Resolution: 2560 1440

  • Main Stream Frame Rate:

    • 50Hz: 1fps to 25fps

    • 60Hz: 1fps to 30fps

  • Main Stream Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  • Sub-Stream Frame Rate: 1fps to 30fps

  • Sub-Stream Resolutions: 640x480, 352x288, 320x240

  • Bit Rate Control: CBR, VBR

  • Video Compression: H.265+/H.265/H.264+/H.264

• Image:

  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance

  • Image Enhancement: BLC, 3D DNR, HLC, SmartIR

  • Wide Dynamic Range: DWDR

  • SNR: €°Â¥ 52 dB

  • Privacy Mask: Up to 4 Masks

• Audio:

  • Audio Communication: N/A

• Network:

  • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

  • ONVIF: Yes

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client: VIGI App, VIGI Security Manager, Web UI

  • Web Browser Compatibility: Chrome, Firefox, Safari, Edge

  • Cloud Support: Yes

  • Security: Password Protection, HTTPS Encryption, IP Address Filter

• Alarm and Event Management:

  • Smart Events: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection

  • Basic Events: Motion Detection, Video Tampering Detection

  • Alarm Linkage: Message Push

• Interfaces:

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

  • Power Supply: 12V DC ± 5%, PoE: 802.3af/at

• General:

  • Operating Temperature: -30‚¬"60 C

  • Storage Temperature: -40‚¬"60 C

  • Protection: IP67

  • Dimensions (L x W x H): 73 174 71 mm

  • Net Weight: 0.2 Kg

  • Gross Weight: 0.35 Kg

  • Certifications: CE, EAC, UKCA, RCM, BSMI, VCCI, FCC, IC
