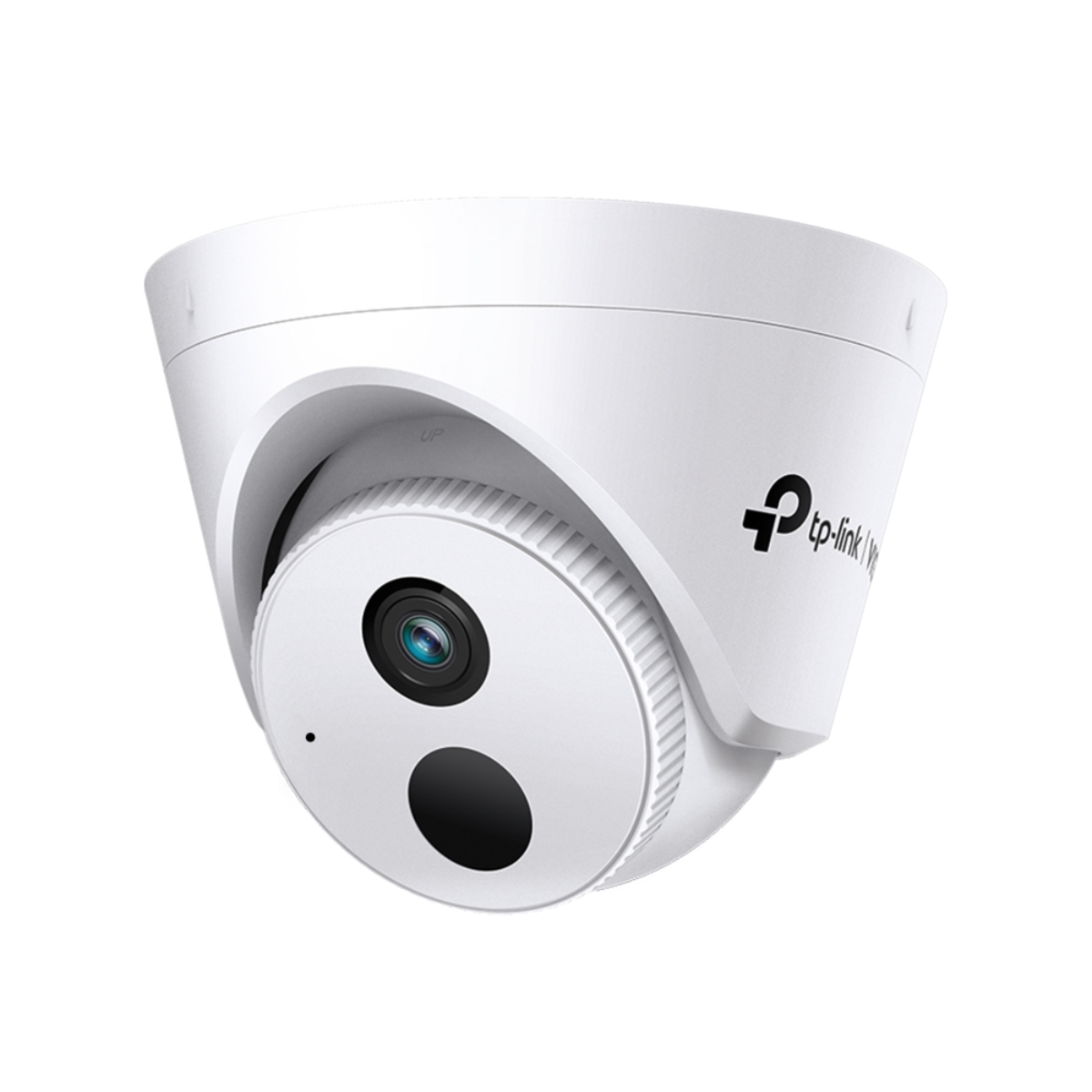

TPLINK VIGI C430I-2.8 3MP IR TURRET NETWORK CAMERA

Specifications:

• Camera

  • Image Sensor: 1/2.8‚¬Â Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Minimum Illumination:

    • Color: 0.01 Lux

    • IR Light: 0 Lux

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Unified/Scheduled/Auto

• Lens

  • Type: Fixed Focal Lens

  • Focal Length Options: 2.8 mm / 4 mm

  • Aperture:

    • 2.8 mm: F2.2

    • 4 mm: F2.0

  • Field of View (FOV):

    • 2.8 mm:

      • Horizontal: 97.8

      • Vertical: 52.9

      • Diagonal: 117.9

    • 4 mm:

      • Horizontal: 82.8

      • Vertical: 44.5

      • Diagonal: 98.1

  • Lens Mount: M12

  • DORI Distance:

    • 2.8 mm:

      • Detect: 49 m (161 ft)

      • Observe: 20 m (67 ft)

      • Recognize: 10 m (32 ft)

      • Identify: 5 m (16 ft)

    • 4 mm:

      • Detect: 65 m (214 ft)

      • Observe: 27 m (89 ft)

      • Recognize: 13 m (43 ft)

      • Identify: 7 m (21 ft)

  • Angle Adjustment:

    • Pan: 0 to 360

    • Tilt: 0 to 85

    • Rotate: 0 to 360

• Illuminator

  • IR LED:

    • Quantity: 1

    • Range: 30 m

    • Wavelength: 850 nm

  • White LED: N/A

  • Illuminator Control: Auto/Scheduled/Always on/Always off

• Video

  • Max Resolution: 2304 1296

  • Main Stream:

    • Frame Rate: 1fps to 25fps

    • Resolution Options: 2304x1296, 2048x1280, 1920x1080, 1280x720

  • Sub-Stream:

    • Frame Rate: 1fps to 25fps

    • Resolution Options: 704x576, 640x480, 352x288, 320x240

  • Bit Rate Control: CBR, VBR

  • Video Compression:

    • Main Stream: H.265+/H.265/H.264+/H.264

    • Sub-Stream: H.265/H.264

  • Video Bit Rate:

    • Main Stream: 256 Kbps to 4 Mbps

    • Sub-Stream: 64 Kbps to 512 Kbps

  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Rotation (90/270)

  • Image Enhancement: BLC, 3D DNR, HLC, SmartIR

  • Wide Dynamic Range: WDR

  • SNR: €°Â¥ 52 dB

  • Privacy Mask: Up to 4 Masks

  • ROI: 1 Region

  • OSD Setting: Yes

• Audio

  • Audio Communication: N/A

  • Audio Input: Yes

  • Audio Output: N/A

  • Audio Compression: Yes

  • Audio Sampling Rate: 8 KHz

  • Environment Noise Filtering: Yes

  • Audio Bit Rate: 64 Kbps (G.711 alaw)

• Network

  • Protocols Supported: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

  • ONVIF: Yes

  • API: Open Network Video Interface (Profile S)

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client Software: VIGI App, VIGI Security Manager, Web UI

  • Web Browser Compatibility: Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+

  • Cloud: Yes

  • Security Features: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Alarm and Event Management

  • Smart Events: Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection

  • Basic Events: Motion Detection (Enhanced with Human & Vehicle Classification), Video Tampering Detection, Illegal Login Detection

  • Alarm Linkage: Message Push

• Interfaces

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

  • Power: DC Power Port

  • Built-in Microphone: Yes (Records within a 15-ft Radius)

  • Built-in Speaker: N/A

• General

  • Operating Temperature: -30‚¬"60 C

  • Storage Temperature: -40‚¬"60 C

  • Operating Humidity: 95% or Less (Non-Condensing)

  • Storage Humidity: 95% or Less (Non-Condensing)

  • Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories

  • Material: Plastic

  • Net Weight: 0.19 Kg

  • Gross Weight: 0.34 Kg

  • Power Supply:

    • 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug

    • PoE: 802.3af/at, class 0, Max. 5.5 W

  • Product Dimensions (L x W x H): 123 123 83 mm (4.84 4.84 3.27 in)

  • Certifications: CE, NTRA, VCCI, BSMI
