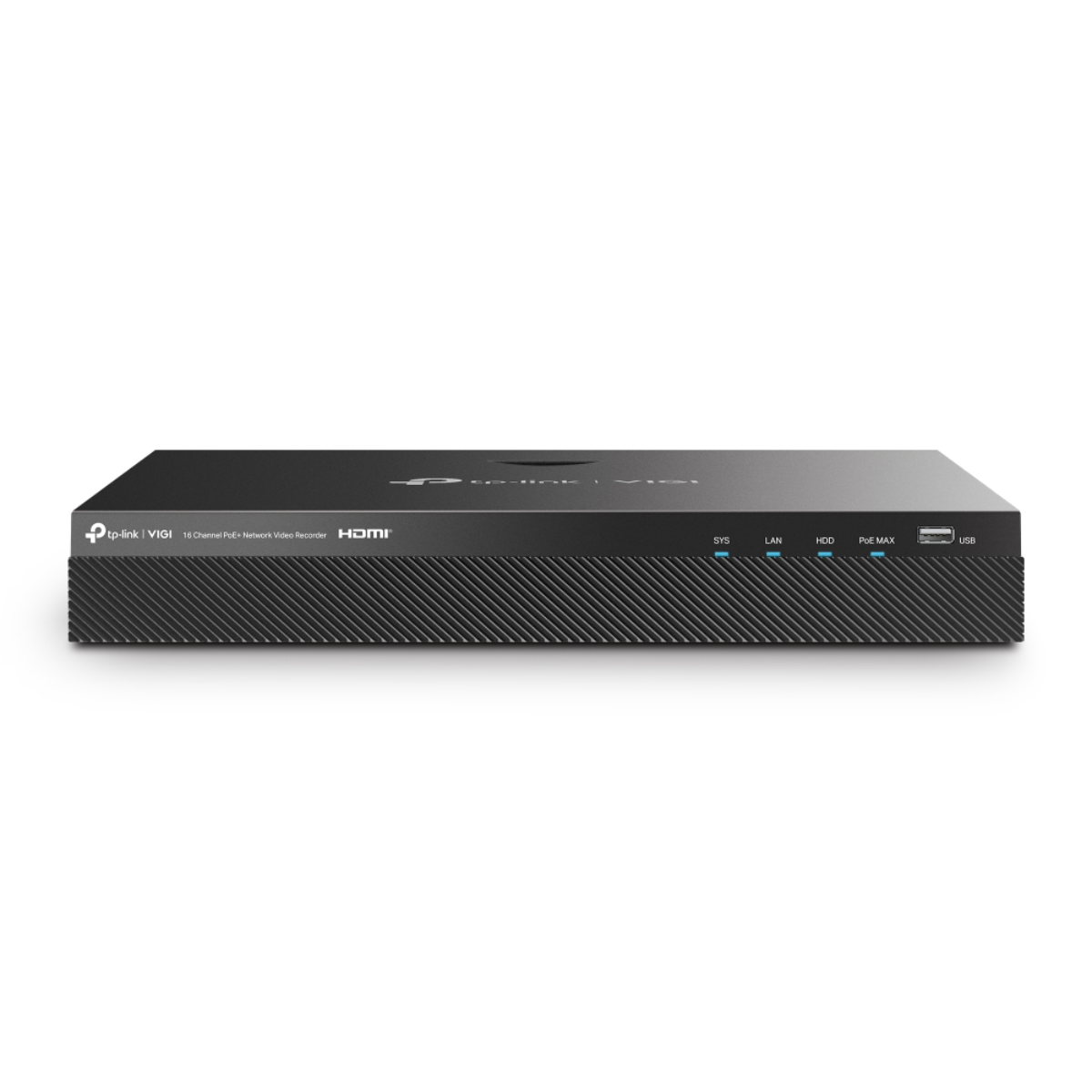

TPLINK VIGI NVR2016H-16P 16 CHANNEL POE+ NETWORK VIDEO RECORDER

Specifications:

• Video and Audio

  • IP Video Input: 16-Channel

  • Incoming Bandwidth: 80 Mbps

  • Outgoing Bandwidth: 60 Mbps

  • HDMI Output Resolution:

    • 3840x2160/30Hz

    • 1920x1080/60Hz

    • 1680x1050/60Hz

    • 1440x900/60Hz

    • 1280x1024/60Hz

    • 1280x720/60Hz

  • VGA Output Resolution:

    • 1920x1080/60Hz

    • 1680x1050/60Hz

    • 1440x900/60Hz

    • 1280x1024/60Hz

    • 1280x720/60Hz

  • Video Output Mode: HDMI/VGA Simultaneous Output

  • Multi-View Display: 1/4/6/8/9/16

• Decoding

  • Audio Compression: G.711A/G.711U/G.726

  • Video Compression: H.265+/H.265/H.264+/H.264

  • Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Synchronous Playback: 16-Channel

  • Decoding Capability:

    • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

    • 30fps: 4-ch @ 3MP, 2-ch @ 5MP

• Record Management

  • Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording

  • Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback

  • Backup Mode: Regular Backup, Video Clip Backup

  • Playback Functions: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

• Network

  • Protocol: UPnP (Plug and Play), NTP (Network Timing)

  • Mobile Phone Access: Android, iOS

  • Web Browser Compatibility: Chrome (57+), Firefox (52+), Edge (91+)

  • Interoperability: ONVIF, CGI

• External Interface

  • Network Interface: 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

  • USB Interface:

    • 1 Front USB 2.0 Port

    • 1 Rear USB 2.0 Port

  • Audio Interface: 1 Audio In; 1 Audio Out

  • Power: 1 DC Jack

  • Reset Button: 1

  • HDMI: 1

  • VGA: 1

• Hard Disk

  • SATA Interfaces: 2 SATA Interfaces

  • Capacity: Up to 10 TB per HDD

• PoE

  • Standard: 802.3at/af Compliant

  • PoE Budget: 90 W for All PoE+ Ports; 30 W Max per Port

• Alarm Features

  • General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame

  • Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

  • Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

• General

  • Storage Temperature: -40‚¬"70 C

  • Storage Humidity: 10%~90% RH Non-Condensing

  • Working Temperature: NVR: -10‚¬"55 C; Power Adapter: 0‚¬"40 C

  • Working Humidity: 10%~90% RH Non-Condensing

  • Dimensions (W x D x H): 330 285 45 mm

  • Net Weight: 1.9 Kg

  • Gross Weight: 3.2 Kg

  • Power Supply: 53.5V DC/2.43A

  • Power Consumption: 6.2 W (Without Disk), 40 W (With Disk)

  • Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
