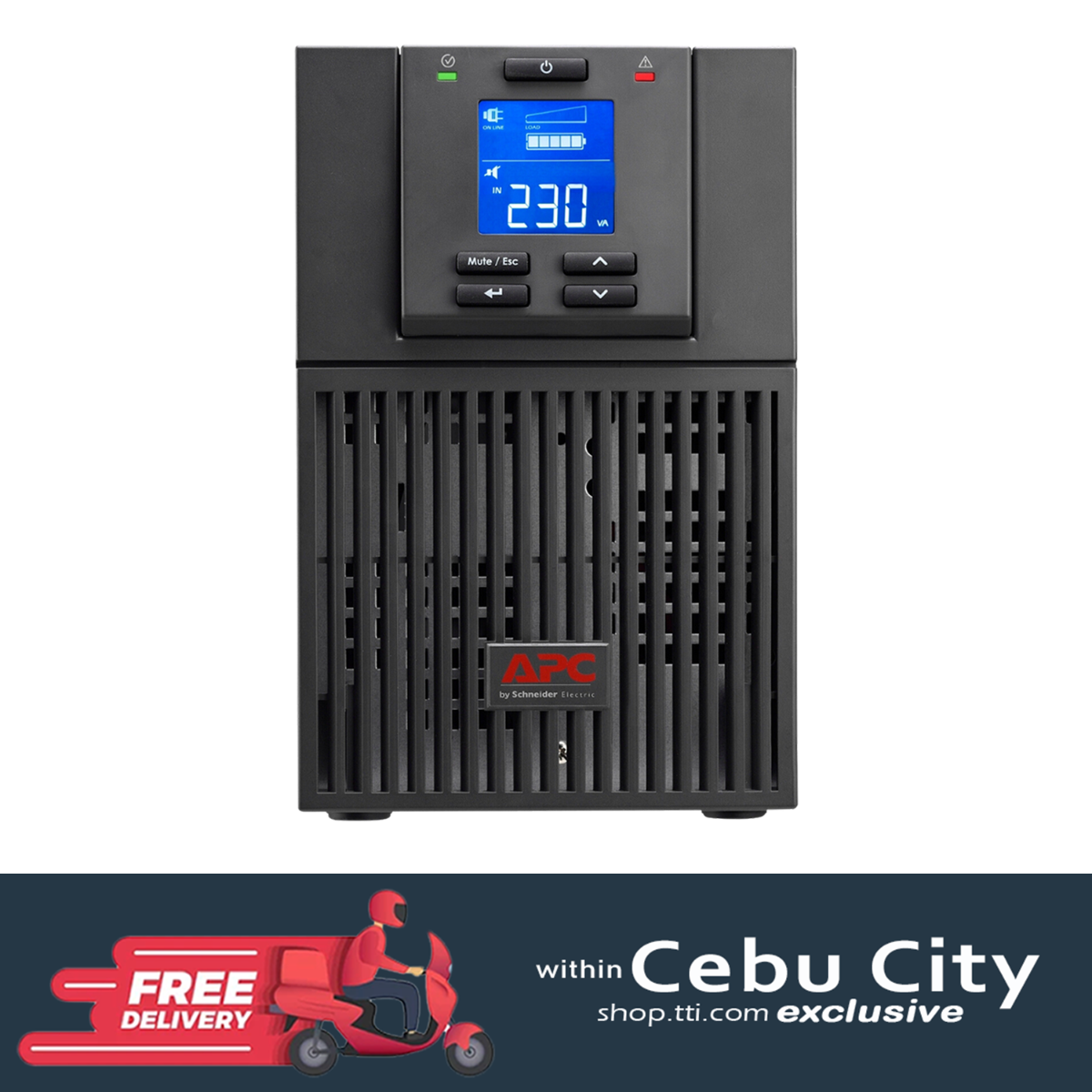

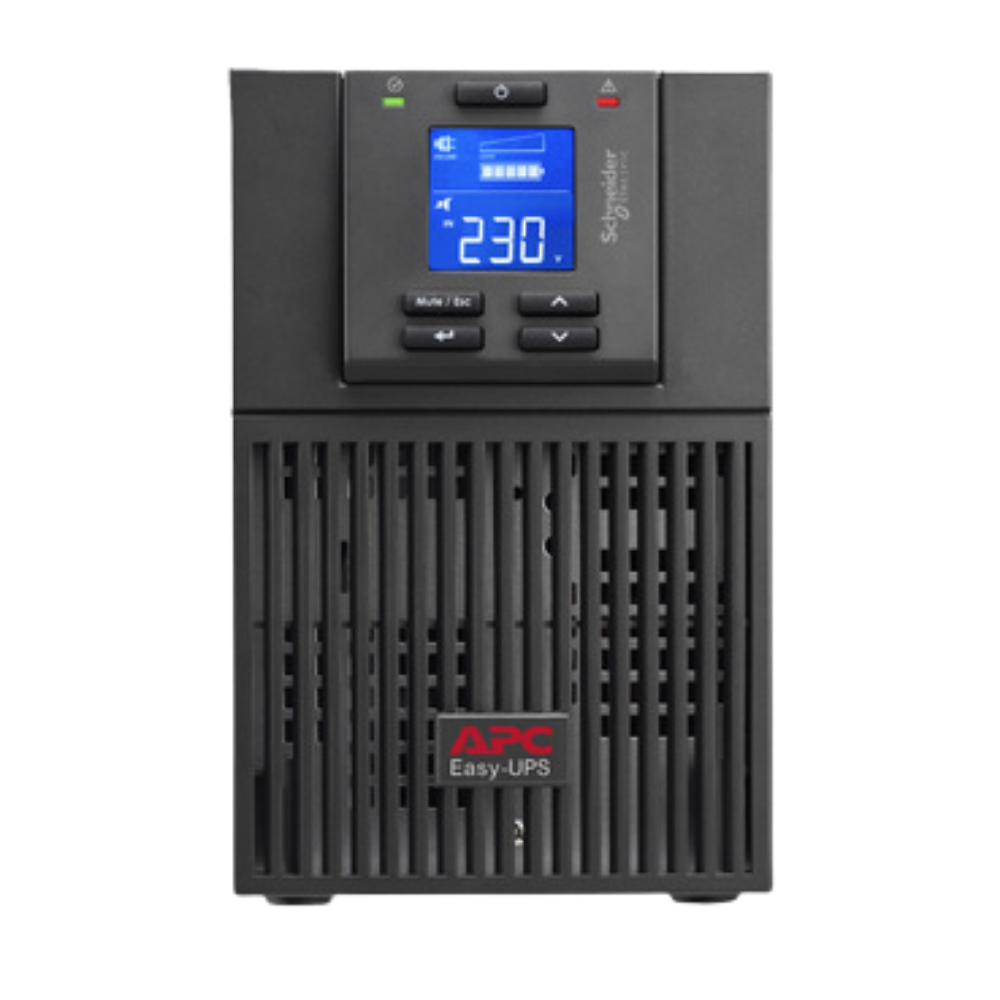

APC EASY-UPS SRV1KI-E 1000VA 230V
APC EASY-UPS SRV1KI-E 1000VA 230V
Regular price
₱20,990.00 PHP
Regular price
Sale price
₱20,990.00 PHP
Product Features
Product Features
| provided equipment |
Basic UPS signalling RS-232 cable
CD with software User manual USB cable |
|---|
| cable length |
1.50 m
|
|
|---|---|---|
| colour |
Black
|
|
| depth |
28.8 cm
|
|
| height |
22.3 cm
|
|
| net weight |
9.3 kg
|
|
| width |
14.5 cm
|
| network frequency |
40...70 Hz
|
|
|---|---|---|
| plug standard |
IEC 60320 C14
|
|
| input voltage limits |
160...280 V
110...285 V adjustable (half load) |
|
| inputvolt_other |
220 V
240 V |
|
| input voltage |
230 V
|
| rated power in W |
800 W
|
|
|---|---|---|
| Maximum configurable power in W |
800 W
|
|
| output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
|
| outputvolt_other |
220 V
240 V |
|
| crest factor |
3 : 1
|
|
| UPS type |
Double conversion online
|
|
| Wave type |
Sine wave
|
|
| nb of power socket outlets |
3 IEC 60320 C13
|
|
| bypass type |
Internal bypass (automatic and manual)
|
|
| output voltage |
230 V
|
| product certifications |
CE
|
|
|---|---|---|
| standards |
IEC 62040-1-1
IEC 62040-1-2 |
| ambient air temperature for operation |
0‚¬Â¦40 C
|
|
|---|---|---|
| relative humidity |
0‚¬Â¦95 % non-condensing
|
|
| operating altitude |
0...10000 ft
|
|
| ambient air temperature for storage |
-20‚¬Â¦50 C
|
|
| storage altitude |
0.00‚¬Â¦15240.00 m
|
|
| acoustic level |
50 dBA
|
|
| heat dissipation |
372 Btu/h
|
|
| IP degree of protection |
IP20
|
| battery type |
Lead-acid battery
|
|
|---|---|---|
| number of battery filled slots |
1
|
|
| number of battery free slots |
0
|
|
| Battery recharge time |
4 h
|
|
| additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| liquid value |
0
|
| free slots |
1
|
|
|---|---|---|
| control panel |
Multifunction LCD status and control console
|
|
| alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
| Surge energy rate |
600 J
|
|---|
| Package 1 Weight |
10.6 kg
|
|
|---|---|---|
| Package 1 Height |
33 cm
|
|
| Package 1 width |
23.5 cm
|
|
| Package 1 Length |
36.5 cm
|
| EU RoHS Directive |
Under investigation
|
|
|---|---|---|
| Optimized Energy Efficiency |
Energy efficient product
|
