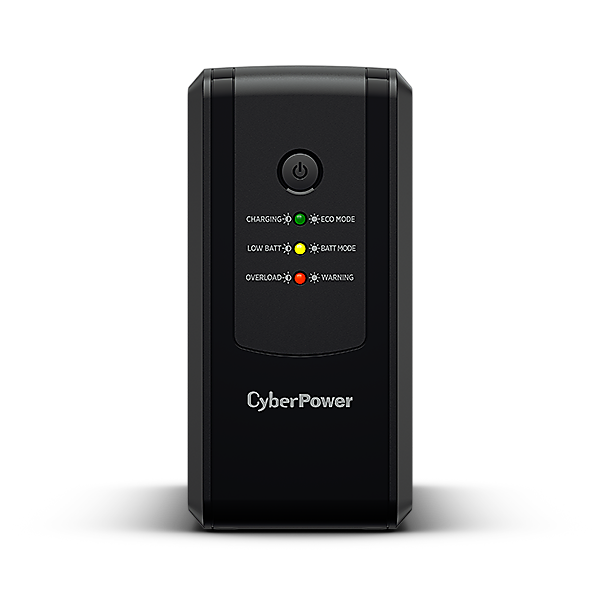

CYBERPOWER UT800EG 800VA 480W UPS W/ AVR
CYBERPOWER UT800EG 800VA 480W UPS W/ AVR
Regular price
₱2,450.00 PHP
Regular price
Sale price
₱2,450.00 PHP
Product Features
Product Features
GENERAL
Phase
| Single Phase |
Form Factor
| Tower |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS€žÂ¢ Bypass Technology |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 165 ~ 290 |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 2.83 |
Input Connector Type
| NEMA 5-15P | ‚¬â‚¬ |
Power Cord Length (ft.)
| 4 |
Power Cord Length (m.)
| 1.2 |
OUTPUT
Capacity (VA)
| 800 |
Capacity (Watts)
| 480 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection
| Internal Current Limiting, Circuit Breaker |
Outlet(s) - Total
| 8 |
Outlet Type
| AS x 8 | ‚¬â‚¬ |
Outlet(s) - Battery & Surge Protected
| 4 |
Outlet(s) - Surge-Only Protected
| 4 |
Typical Transfer Time ( ms )
| 4 |
BATTERY
Runtime at 60W ( min )
| 30 |
Runtime at 90W ( min )
| 18 |
Runtime at 200W ( min )
| 5 |
Typical Recharge Time ( Hours )
| 6 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 150 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LED Indicators
| Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload, UPS Fault |
Audible Alarms
| Battery Mode, Low Battery, Overload, UPS Fault |
Ethernet Data Transmission Speed
| Up to 1Gbps |
PHYSICAL
Enclosure Construction
| Plastic |
Color
| Black |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 3.31 x 6.85 x 11.02 |
Dimensions (WxHxD) (mm.)
| 84 x 174 x 280 |
Weight (lbs.)
| 8.89 |
Weight (kg.)
| 4 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 4.29 x 9.02 x 12.4 |
Dimensions (WxHxD) (mm.)
| 109 x 229 x 315 |
Weight (lbs.)
| 9.33 |
Weight (kg.)
| 4.24 |
ENVIRONMENTAL
Operating Temperature (F)
| 32 ~ 104 |
Operating Temperature (C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (F)
| -4 ~ 122 |
Storage Temperature (C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 34 |
