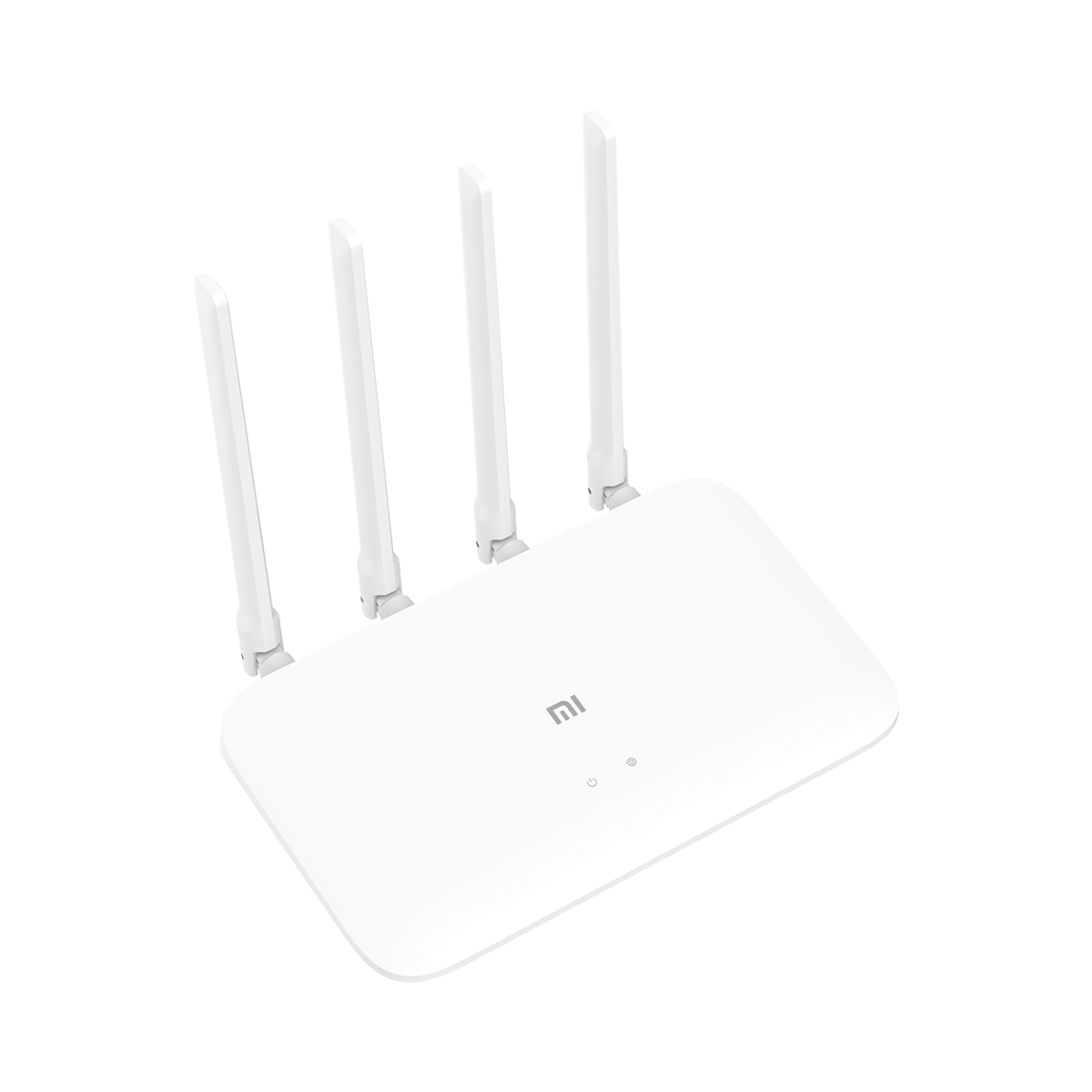

XIAOMI MI ROUTER 4A GIGABIT EDITION AC1200 ROUTER

Specifications:

Hardware Configuration

• Product Color: White

• Processor: MT7621A MIPS Dual Core, 880 MHz

• Product Memory: 128 MB

• 2.4G Wi-Fi:

  • Configuration: 22

  • Protocol: Supports IEEE 802.11n

  • Maximum Speed: Up to 300 Mbps

• 5G Wi-Fi:

  • Configuration: 22

  • Protocol: Supports IEEE 802.11ac

  • Maximum Speed: Up to 867 Mbps

• Antennas:

  • 4 external omni-directional high-gain antennas

  • 2 2.4G antennas (maximum gain of 5 dBi)

  • 2 5G antennas (maximum gain of 6 dBi)

• Cooling: Passive cooling

• Product Ports:

  • 2 10/100/1000 Mbps adaptive WAN ports (Auto MDI/MDIX)

  • 1 10/100/1000 Mbps adaptive LAN port (Auto MDI/MDIX)

• LED Indicators: 2

• Protocol Standards:

  • IEEE 802.11a/b/g/n/ac

  • IEEE 802.3/3u/3ab

• System Reset Button: 1

• Power Supply Port: 1

Wireless Specifications

• Dual Band: 2.4GHz and 5GHz

• Modulation:

  • 11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps)

  • 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)

  • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0-MCS15

  • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0-MCS9 (supports 2 streams)

  • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0-MCS11 (supports 2 streams)

Software Parameters

• Operating System: OpenWRT, widely customizable intelligent router operating system; MiWiFi ROM

• Wireless Security: WPA-PSK/WPA2-PSK encryption, wireless access control (black and white lists), SSID hiding, smart anti-hacking protection

• Management Applications: Web support, Android, iOS
