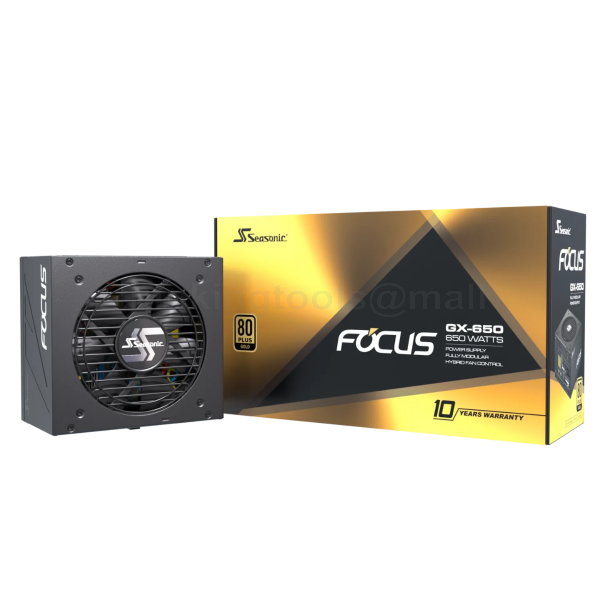

SEASONIC FOCUS GX-650 650W 1X120MM FAN, MODULAR, 80PLUS GOLD
This 650W power supply is 80 PLUS Gold certified, ensuring high energy efficiency with a fully modular cable design for a clean and organized build. It features a 120mm fluid dynamic bearing fan with S3FC control, including a fanless mode for quieter operation. With a 10-year warranty, it offers comprehensive protection features and complies with multiple safety and environmental standards, making it a reliable and eco-friendly choice.
Brands:
Power Supply Specifications
Efficiency & Certification
- 80 PLUS Certification: Gold
- Cybenetics Efficiency Level: TBA
- Cybenetics Noise Level: TBA
Form Factor & Dimensions
- Form Factor: ATX/EPS
- Dimensions: 140 × 150 × 86 mm
Cooling & Fan
- Fan Size: 120 mm
- Fan Control: S3FC (includes Fanless Mode)
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Life Expectancy: 50,000 hours at 40 °C, 15% - 65% RH
Cable Information
- Modularity: Fully Modular
Electrical Features
- Operating Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)
- MTBF (Mean Time Between Failures) @ 25 °C (excl. fan): 100,000 hours
- AC Input: Full Range (100 V - 240 V, 9 - 4.5 A, 50 Hz - 60 Hz)
Protection Features
- Protection Types: OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection)
Safety & Environmental Compliance
- Safety Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Environmental Compliance:
- Energy Star
- RoHS
- WEEE
- ErP Lot 6
- REACH
Warranty
- Warranty Period: 10 Years
Power Output Specifications
| Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
|---|---|---|---|---|---|
| Maximum Power | 100 W | 100 W | 648 W | 3.6 W | 15 W |
| Max Current | 20 A | 20 A | 54 A | 0.3 A | 3 A |
- Total Continuous Power: 650 W
| Color | Black |
|---|
